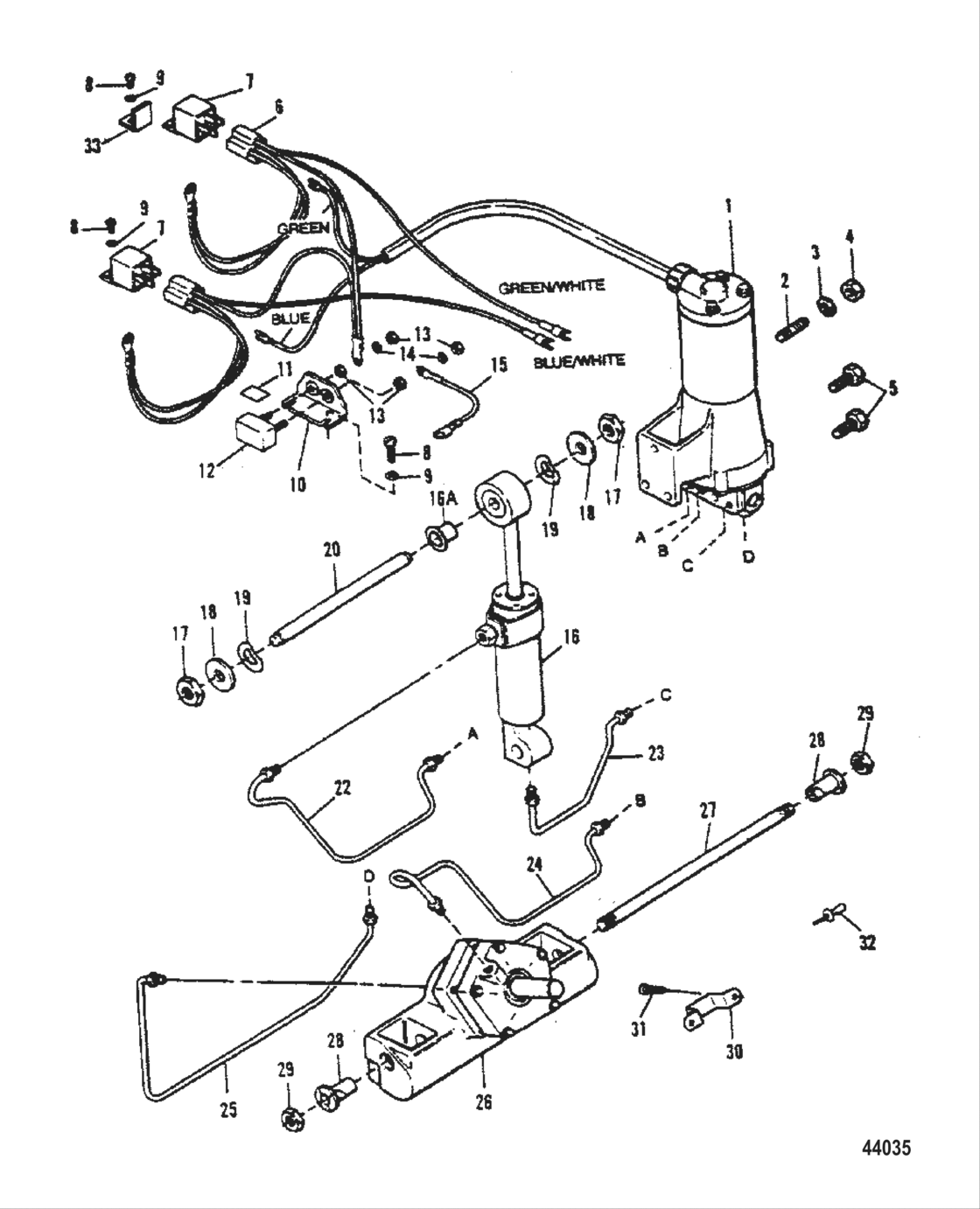

Power Trim-Design I With Bayonet Connectors Diagram Mercury-Mercruiser Force90
- Year
- 1991-1992
- Power
- 90
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 1991E THRU 1992C
- Кол-в цилиндров
- 3
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
--
|
--
F5H196
New Genuine Part
|
F5H196 |
— | ||
| replacement | |||||
|
--
|
--
819762A12
N.l.a.
|
819762A12 |
— | ||
|
1
|
1
F6945412
N.l.a.
|
F6945412 |
— | ||
|
2
|
2
F660273
Stud
|
F660273 |
— | ||
| replacement | |||||
|
2
|
2
827512
Stud, double end
|
827512 |
— | ||
|
3
|
3
53166 Lockwasher |
53166 |
US $1.62 |
||
|
4
|
4
68292 Nut |
68292 |
US $3.36 |
||
|
5
|
5
F1822 Screw (.312-18 X .875) |
F1822 |
US $2.54 |
||
| replacement | |||||
|
5
|
5
28782 Screw, stainless steel |
28782 |
US $2.54 |
||
|
6
|
6
FA663744
New Genuine Part
|
FA663744 |
— | ||
|
7
|
7
F660917 Relay |
F660917 |
US $43.01 |
||
| replacement | |||||
|
7
|
7
803632T RELAY |
803632T |
US $43.01 |
||
|
8
|
8
F1760
Screw (#10-24 X .375)
|
F1760 |
— | ||
|
9
|
9
89302 Washer |
89302 |
US $1.62 |
||
|
10
|
10
F914462
N.l.a.
|
F914462 |
— | ||
|
11
|
11
F5103741
Decal Circuit Breaker - Usa
|
F5103741 |
— | ||
|
12
|
12
F510460
Breaker
|
F510460 |
— | ||
|
13
|
13
68219 Nut, stainless steel |
68219 |
US $3.40 |
||
|
14
|
14
26996 Lockwasher, stainless steel, terminal block screws |
26996 |
US $1.04 |
||
|
15
|
15
F660908
Wire Assembly (Red)
|
F660908 |
— | ||
|
16
|
16
819108F
New Genuine Part
See Tilt Cylinder-Motor and Pump (Design II) for parts breakdown. |
819108F |
— | ||
|
16A
|
16A
F178344
Bushing Upper
|
F178344 |
— | ||
|
17
|
17
35778 Nut, trim cylinder pin |
35778 |
US $9.39 |
||
| replacement | |||||
|
17
|
17
826709117 Nut, stainless steel |
826709117 |
US $9.39 |
||
|
18
|
18
F1710
Washer
|
F1710 |
— | ||
|
19
|
19
F1711
Washer Bowed
|
F1711 |
— | ||
|
20
|
20
F449889
New Genuine Part
|
F449889 |
— | ||
|
22
|
22
F660758
Line Hydraulic, Upper (Tilt)
|
F660758 |
— | ||
|
23
|
23
F660754
Line Hydraulic, Lower (Tilt)
|
F660754 |
— | ||
|
24
|
24
F660254
Line Hydraulic, Upper (Trim)
|
F660254 |
— | ||
|
25
|
25
F660253
Line Hydraulic, Lower (Trim)
|
F660253 |
— | ||
|
26
|
26
818055A3
N.l.a.
|
818055A3 |
— | ||
|
27
|
27
F449632 New Genuine Part |
F449632 |
US $90.67 |
||
|
28
|
28
F449362 Bushing Lower |
F449362 |
US $8.69 |
||
|
29
|
29
F7053 Nut (.625-18) Brass |
F7053 |
US $12.29 |
||
|
30
|
30
F449354
New Genuine Part
|
F449354 |
— | ||
|
31
|
31
34939
Screw (.250-20 X .500)
|
34939 |
— | ||
|
32
|
32
F1966
Plug
|
F1966 |
— | ||
|
33
|
33
F660978
New Genuine Part
|
F660978 |
— | ||
