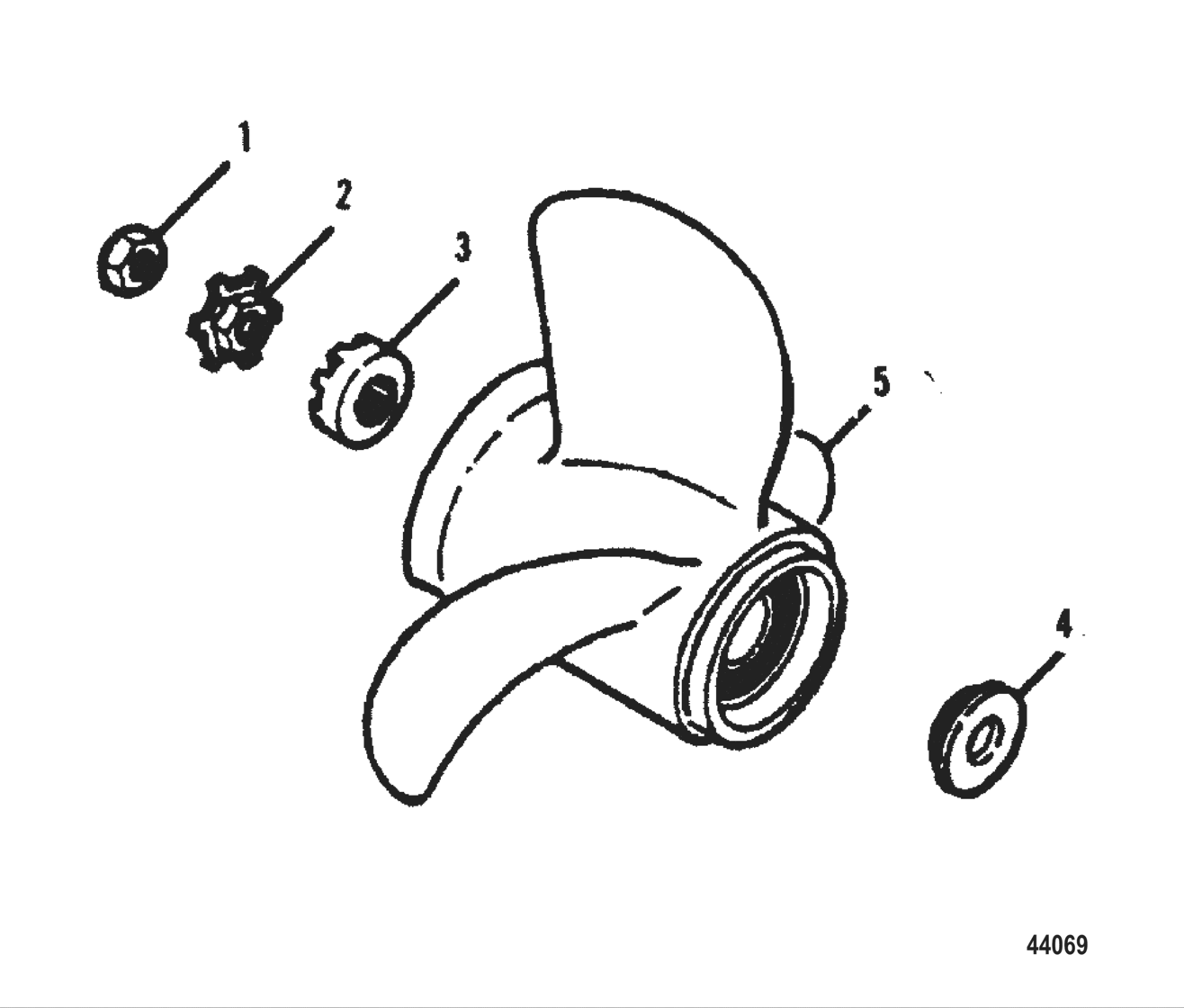

Propeller-Flared Hub Diagram Mercury-Mercruiser Force90
- Year
- 1991-1992
- Power
- 90
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 1991E THRU 1992C
- Кол-в цилиндров
- 3
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52707A1
Prop Nut Kit (.750-16)
|
52707A1 |
— | ||
| replacement | |||||
|
1
|
1
52707Q1 Prop Nut Kit (.750-16) |
52707Q1 |
US $19.24 |
||
|
2
|
2
816629 Tab washer, propeller nut |
816629 |
US $5.55 |
||
| replacement | |||||
|
2
|
2
816629Q Tab Washer |
816629Q |
US $6.92 |
||
|
3
|
3
F697299 New Genuine Part |
F697299 |
US $29.98 |
||
|
4
|
4
F6980991 New Genuine Part |
F6980991 |
US $88.58 |
||
| replacement | |||||
|
4
|
4
803890T New Genuine Part |
803890T |
US $88.58 |
||
