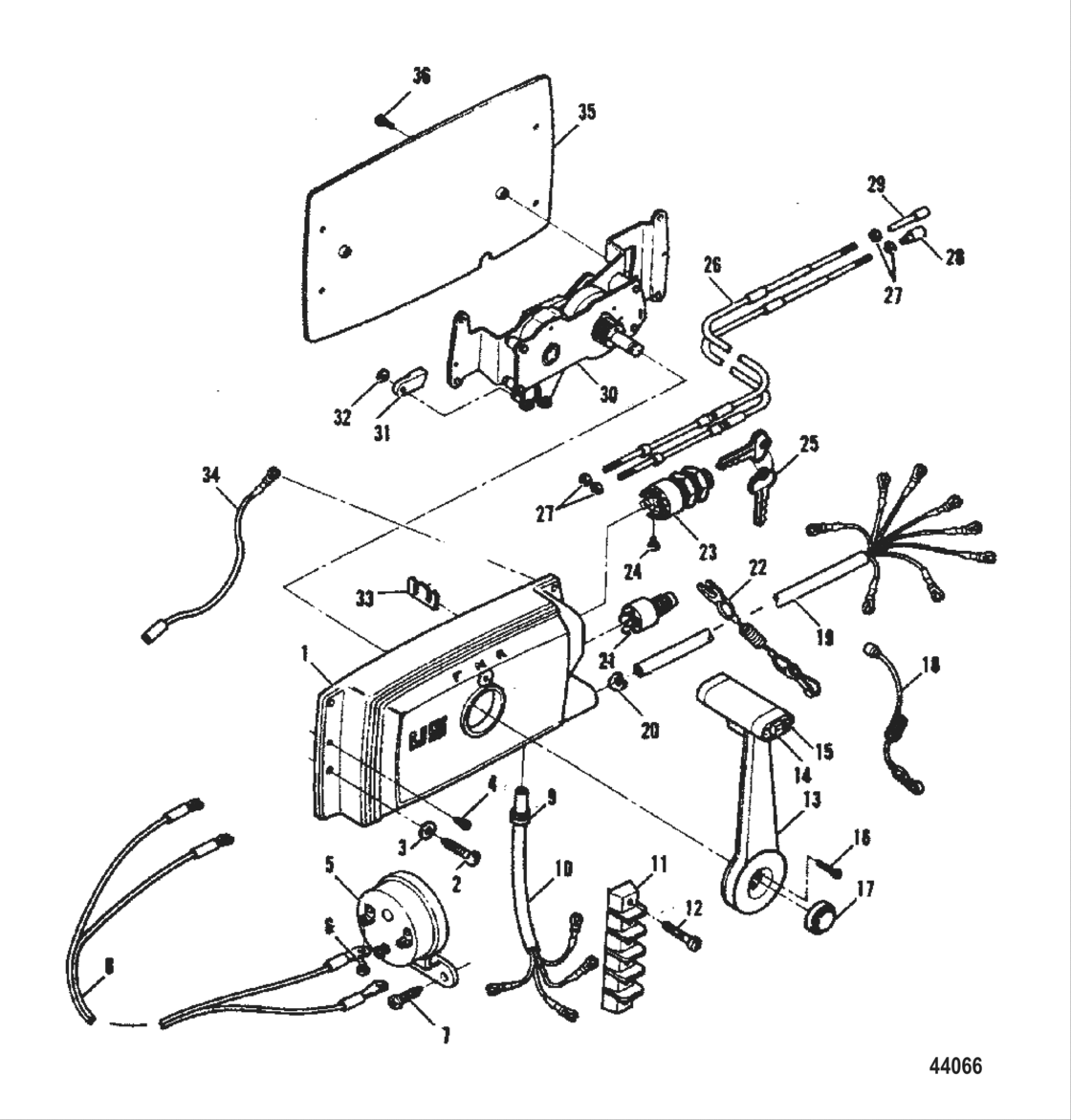

Remote Control Diagram Mercury-Mercruiser Force90
- Year
- 1991-1992
- Power
- 90
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 1991E THRU 1992C
- Кол-в цилиндров
- 3
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
--
|
--
F5H267
New Genuine Part
|
F5H267 |
— | ||
|
1
|
1
F660995
New Genuine Part
|
F660995 |
— | ||
|
2
|
2
F660732
Screw
|
F660732 |
— | ||
|
3
|
3
F660595
Washer
|
F660595 |
— | ||
|
4
|
4
F660480
Screw
|
F660480 |
— | ||
|
5
|
5
F5H043
New Genuine Part
|
F5H043 |
— | ||
|
6
|
6
69080 Screw (#6-32 X .250) |
69080 |
US $1.50 |
||
|
7
|
7
F1741 Screw (#8 X .750) Fill Head, Ss |
F1741 |
US $0.82 |
||
|
8
|
8
65017A24 Harness Assembly |
65017A24 |
US $19.15 |
||
|
9
|
9
F660504
Grommet
|
F660504 |
— | ||
|
10
|
10
F660353
Cable Assembly (5 Feet) (5.00 Feet)
|
F660353 |
— | ||
|
11
|
11
817492 Block-term-4 post |
817492 |
US $12.91 |
||
|
12
|
12
F1741 Screw (#8 X .750) Fill Head, Ss |
F1741 |
US $0.82 |
||
|
13
|
13
F660611
New Genuine Part
|
F660611 |
— | ||
|
14
|
14
F17864
N.l.a.
|
F17864 |
— | ||
|
15
|
15
F17863
N.l.a.
|
F17863 |
— | ||
|
16
|
16
F660165
Screw
|
F660165 |
— | ||
|
17
|
17
F660332
New Genuine Part
|
F660332 |
— | ||
|
18
|
18
FK681602
New Genuine Part
|
FK681602 |
— | ||
|
19
|
19
819200A1
Cable Assembly (15.50 Feet)
|
819200A1 |
— | ||
| replacement | |||||
|
19
|
19
819200T1
CABLE-15.5 FEET
|
819200T1 |
— | ||
|
19
|
19
819203A1
Cable Assembly (19 Feet)
|
819203A1 |
— | ||
|
19
|
19
819204A1
Cable Assembly (22 Feet)
|
819204A1 |
— | ||
|
19
|
19
819205A1
Cable Assembly (25 Feet)
|
819205A1 |
— | ||
|
19
|
19
F5H193
Cable assy-7 ft
|
F5H193 |
— | ||
|
20
|
20
F660446
Clamp
|
F660446 |
— | ||
|
21
|
21
FK681602
New Genuine Part
|
FK681602 |
— | ||
|
22
|
22
819399A1
New Genuine Part
|
819399A1 |
— | ||
| replacement | |||||
|
22
|
22
879104
Lanyard w/clip
|
879104 |
— | ||
|
23
|
23
F5H268 New Genuine Part |
F5H268 |
US $74.11 |
||
|
24
|
24
F1280 Screw (#8-32 X .250) |
F1280 |
US $0.58 |
||
|
25
|
25
819012 New Genuine Part |
819012 |
US $7.04 |
||
|
25
|
25
819013 New Genuine Part |
819013 |
US $10.61 |
||
|
25
|
25
819014 New Genuine Part |
819014 |
US $10.61 |
||
|
25
|
25
819015 New Genuine Part |
819015 |
US $10.61 |
||
|
25
|
25
819016 New Genuine Part |
819016 |
US $10.61 |
||
|
27
|
27
68219 Nut, stainless steel |
68219 |
US $3.40 |
||
|
28
|
28
F586852 New Genuine Part |
F586852 |
US $32.67 |
||
|
29
|
29
FA589761 New Genuine Part |
FA589761 |
US $43.10 |
||
|
30
|
30
F660327
New Genuine Part
|
F660327 |
— | ||
|
31
|
31
F6601411
New Genuine Part
|
F6601411 |
— | ||
|
32
|
32
F660411
New Genuine Part
|
F660411 |
— | ||
|
33
|
33
F660642
New Genuine Part
|
F660642 |
— | ||
|
34
|
34
F660664
Wire Lead
|
F660664 |
— | ||
|
35
|
35
F660911
New Genuine Part
|
F660911 |
— | ||
|
36
|
36
F660751 Screw |
F660751 |
US $0.82 |
||
|
NI
|
NI
8177821 New Genuine Part |
8177821 |
US $5.14 |
||
|
NI
|
NI
8178831 New Genuine Part |
8178831 |
US $5.01 |
||
|
NI
|
NI
8178911 New Genuine Part |
8178911 |
US $5.14 |
||
|
NI
|
NI
8179281 New Genuine Part |
8179281 |
US $5.90 |
||
|
NI
|
NI
8179291 New Genuine Part |
8179291 |
US $5.01 |
||
