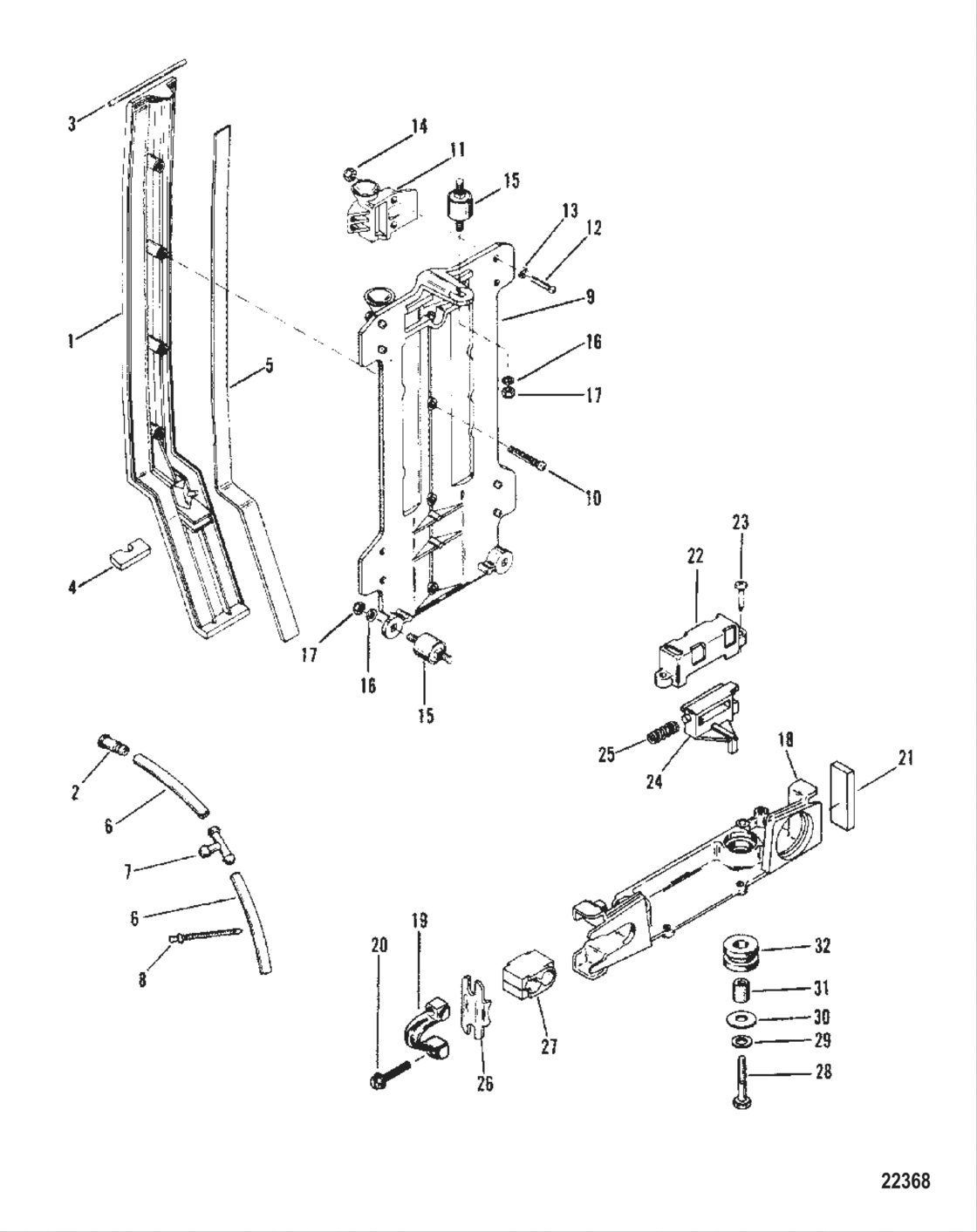

Cowl Mounting Bracket Diagram Mercury-Mercruiser XR-MAGNUM Magnum II
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0B242885 THRU 0C100860
- Кол-в цилиндров
- 6
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76258A2
N.l.a.
|
76258A2 |
— | ||
|
1
|
1
76258A3
N.l.a.
|
76258A3 |
— | ||
|
2
|
2
76256 Nozzle, tell tale |
76256 |
US $9.28 |
||
|
3
|
3
67984
New Genuine Part
|
67984 |
— | ||
|
4
|
4
67228
New Genuine Part
|
67228 |
— | ||
|
5
|
5
67999
New Genuine Part
|
67999 |
— | ||
|
6
|
6
99127109 Fuel line |
99127109 |
US $54.61 |
||
| replacement | |||||
|
6
|
6
8M0108355 Hose (57 Inches Bulk) To Vapor Separator Cover - Cut To 18 Inches |
8M0108355 |
US $54.61 |
||
|
7
|
7
90824 Tee, tell tale hose |
90824 |
US $19.14 |
||
| replacement | |||||
|
7
|
7
90824001 TEE FITTING |
90824001 |
US $19.14 |
||
|
8
|
8
73498 Sta ?????? |
73498 |
US $0.51 |
||
| replacement | |||||
|
8
|
8
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
9
|
9
86386A1
N.l.a.
|
86386A1 |
— | ||
|
10
|
10
66687 Screw, fuel pump to bottom cowl |
66687 |
US $1.78 |
||
|
11
|
11
85651
N.l.a.
|
85651 |
— | ||
|
11
|
11
85650
N.l.a.
|
85650 |
— | ||
|
12
|
12
64278
Screw, rectifier to mounting bracket
|
64278 |
— | ||
|
13
|
13
20583 Washer, rocker cover |
20583 |
US $1.28 |
||
|
14
|
14
35888 Nut, stainless steel, gimbal housing to hydraulic connector stud |
35888 |
US $5.92 |
||
|
15
|
15
90435 New Genuine Part |
90435 |
US $61.55 |
||
|
16
|
16
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
17
|
17
35888 Nut, stainless steel, gimbal housing to hydraulic connector stud |
35888 |
US $5.92 |
||
|
18
|
18
99424
N.l.a.
|
99424 |
— | ||
|
19
|
19
99447T
New Genuine Part
|
99447T |
— | ||
| replacement | |||||
|
19
|
19
99447
New Genuine Part
|
99447 |
— | ||
|
20
|
20
22411 Screw, control housing to cover |
22411 |
US $3.01 |
||
| replacement | |||||
|
20
|
20
68918 Screw, control housing to cover |
68918 |
US $3.01 |
||
|
21
|
21
67260
New Genuine Part
|
67260 |
— | ||
|
22
|
22
67241 New Genuine Part |
67241 |
US $21.78 |
||
|
23
|
23
92051 Screw |
92051 |
US $1.62 |
||
|
24
|
24
87608
New Genuine Part
|
87608 |
— | ||
|
25
|
25
60295 Spring, front cover latch |
60295 |
US $1.78 |
||
|
26
|
26
88622
New Genuine Part
|
88622 |
— | ||
|
27
|
27
99391
New Genuine Part
|
99391 |
— | ||
|
28
|
28
69067 Screw |
69067 |
US $2.78 |
||
|
29
|
29
20346 Washer, mount stud |
20346 |
US $1.62 |
||
| replacement | |||||
|
29
|
29
69057 Washer |
69057 |
US $1.72 |
||
|
30
|
30
57427 Washer, base screw |
57427 |
US $2.78 |
||
| replacement | |||||
|
30
|
30
35280 Washer, base screw |
35280 |
US $2.78 |
||
|
31
|
31
88180
Bushing, lower bracket grommet
|
88180 |
— | ||
|
32
|
32
88033
Grommet
|
88033 |
— | ||
