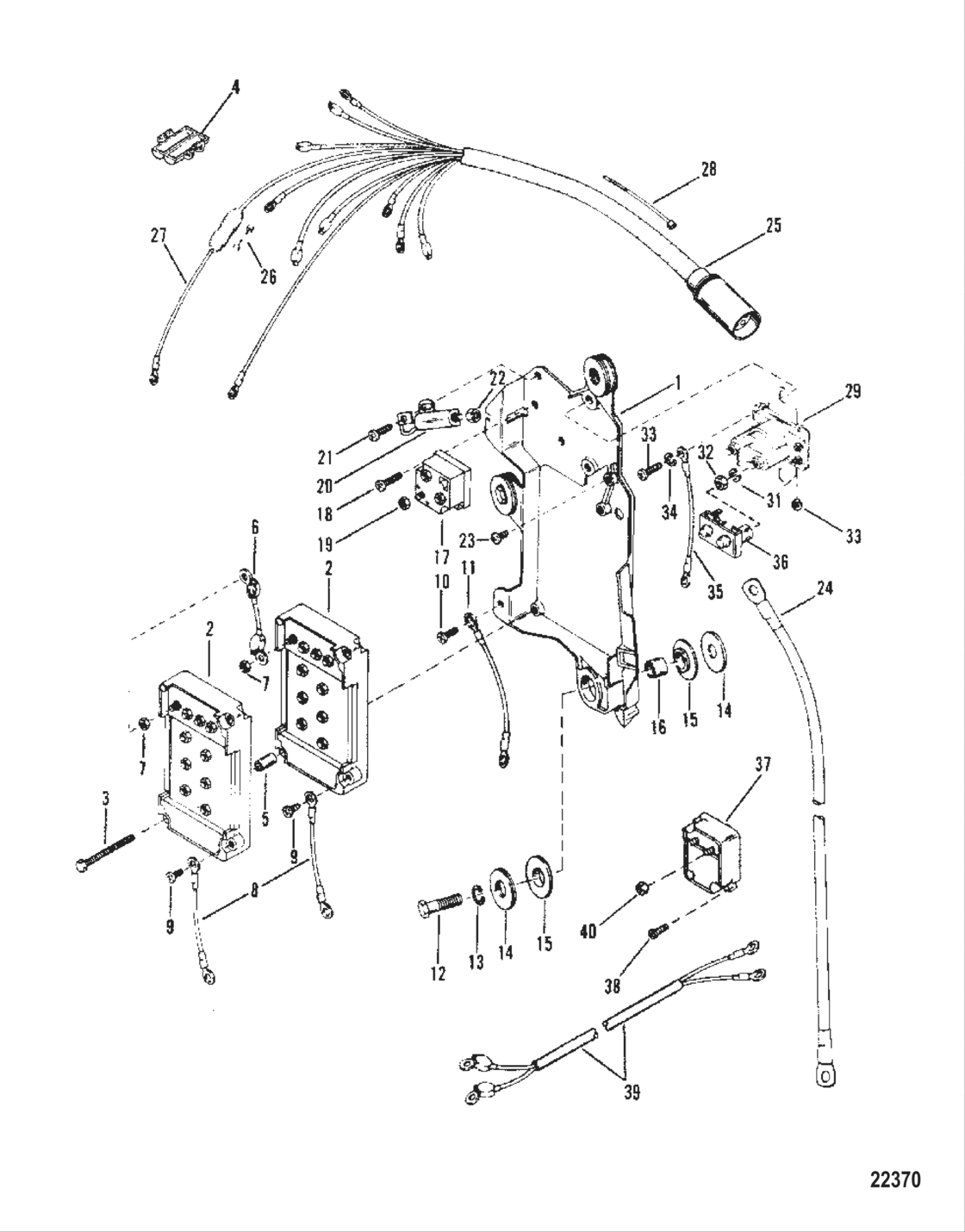

Wiring Harness, Starter Solenoid And Rectifier Diagram Mercury-Mercruiser XR-MAGNUM Magnum II
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0B242885 THRU 0C100860
- Кол-в цилиндров
- 6
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43429 New Genuine Part |
43429 |
US $210.56 |
||
| replacement | |||||
|
1
|
1
434292 New Genuine Part |
434292 |
US $210.56 |
||
|
2
|
2
7778A6 Switchbox Assembly |
7778A6 |
US $354.78 |
||
| replacement | |||||
|
2
|
2
7778A12 Switch box |
7778A12 |
US $354.78 |
||
|
3
|
3
13669
Screw, , switch box to ignition plate
|
13669 |
— | ||
|
4
|
4
134731
New Genuine Part
|
134731 |
— | ||
|
5
|
5
94453
Bushing, switch box screw
|
94453 |
— | ||
|
6
|
6
62310A2 Cable assembly, switch box to switch box |
62310A2 |
US $7.42 |
||
|
7
|
7
45076 Nut, circuit breaker terminal |
45076 |
US $2.09 |
||
|
8
|
8
60871A10 Wire assembly |
60871A10 |
US $11.47 |
||
|
9
|
9
62568 Screw, , switch retainer to control panel |
62568 |
US $0.93 |
||
|
10
|
10
38055 Screw |
38055 |
US $12 |
||
|
11
|
11
65999A3 Cable Assembly Black |
65999A3 |
US $8.46 |
||
|
12
|
12
69092 Screw, manifold cover to cylinder block |
69092 |
US $1.28 |
||
| replacement | |||||
|
12
|
12
60411 Screw |
60411 |
US $1.28 |
||
|
13
|
13
26993 Lockwasher |
26993 |
US $1.62 |
||
|
14
|
14
36042 Washer, ignition plate screw |
36042 |
US $4.53 |
||
|
15
|
15
67264 Washer, , ignition plate screw |
67264 |
US $10.43 |
||
|
16
|
16
67268 Bushing, ignition plate screw |
67268 |
US $4.64 |
||
|
17
|
17
62351A1
New Genuine Part
|
62351A1 |
— | ||
| replacement | |||||
|
17
|
17
8M0058226 RECTIFIER |
8M0058226 |
US $127.48 |
||
|
18
|
18
38055 Screw |
38055 |
US $12 |
||
|
19
|
19
45076 Nut, circuit breaker terminal |
45076 |
US $2.09 |
||
|
20
|
20
33386A3
Switch Assemlby Mercury
|
33386A3 |
— | ||
|
21
|
21
38055 Screw |
38055 |
US $12 |
||
|
22
|
22
45076 Nut, circuit breaker terminal |
45076 |
US $2.09 |
||
|
23
|
23
87926 Screw |
87926 |
US $1.62 |
||
|
24
|
24
88439A14 Cable Assembly Battery - Positive Positive |
88439A14 |
US $48.67 |
||
|
24
|
24
88439A2 Cable Assembly Battery - Negative Negative |
88439A2 |
US $45.89 |
||
|
25
|
25
96220A4 Harness Assembly Engine |
96220A4 |
US $291.01 |
||
|
26
|
26
79091 Fuse, 20 ampere |
79091 |
US $5.46 |
||
|
27
|
27
95084A2
Cable Assembly
|
95084A2 |
— | ||
|
28
|
28
73498 Sta ?????? |
73498 |
US $0.51 |
||
| replacement | |||||
|
28
|
28
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
29
|
29
15857 Starter solenoid10-32 5/16-18 TERMINALS |
15857 |
US $43.66 |
||
| replacement | |||||
|
29
|
29
853654A1 Starter solenoid10-32 5/16-18 TERMINALS |
853654A1 |
US $43.66 |
||
|
30
|
30
45076 Nut, circuit breaker terminal10-32 5/16-18 TERMINALS |
45076 |
US $2.09 |
||
|
31
|
31
53166 Lockwasher10-32 5/16-18 TERMINALS |
53166 |
US $1.62 |
||
|
32
|
32
68292 Nut10-32 5/16-18 TERMINALS |
68292 |
US $3.36 |
||
|
33
|
33
31716
Screw, rubber bumper to saddle
|
31716 |
— | ||
|
34
|
34
26992 Lockwasher, stainless steel, control valve screw |
26992 |
US $0.93 |
||
|
35
|
35
65999A2 Cable Assembly Black |
65999A2 |
US $4.99 |
||
|
36
|
36
97861 Insulator |
97861 |
US $4.40 |
||
|
37
|
37
88825A7
New Genuine Part
|
88825A7 |
— | ||
|
38
|
38
48409 Screw, stainless steel |
48409 |
US $1.97 |
||
|
39
|
39
13397A1 Harness assembly |
13397A1 |
US $27.66 |
||
|
40
|
40
45076 Nut, circuit breaker terminal |
45076 |
US $2.09 |
||
