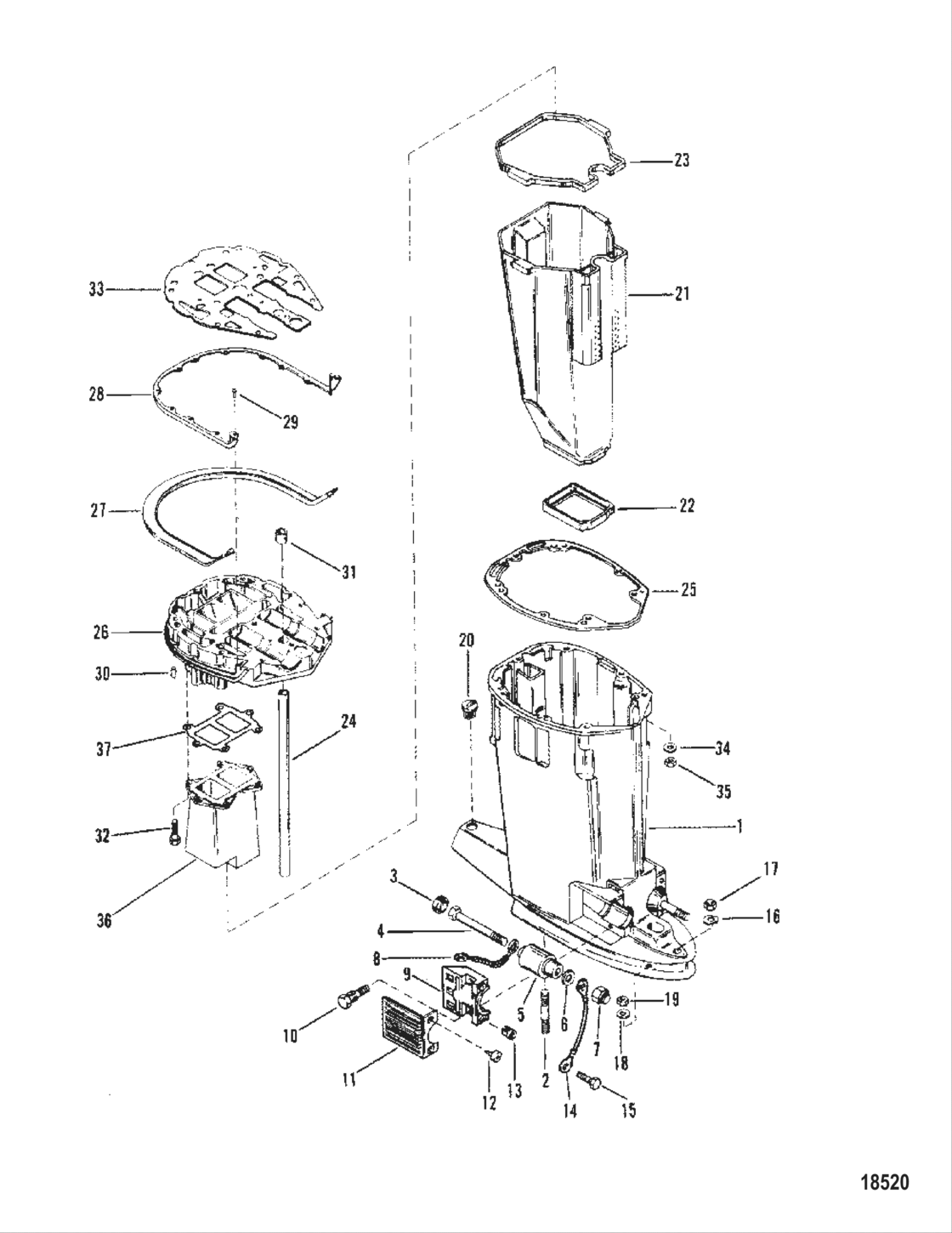

Driveshaft Housing And Exhaust Tube Diagram Mercury-Mercruiser XR-MAGNUM Magnum II
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0C100861 THRU 0C239552
- Кол-в цилиндров
- 6
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8343A7
Housing Assembly Driveshaft (Black)
|
8343A7 |
— | ||
|
1
|
1
8343A8
Housing Assembly Driveshaft (Gray)
|
8343A8 |
— | ||
|
2
|
2
56295 Stud, , driveshaft housing to gear housing |
56295 |
US $4.53 |
||
|
3
|
3
25067
N.l.a.
|
25067 |
— | ||
|
4
|
4
63474 Screw, , lower mount |
63474 |
US $22.14 |
||
| replacement | |||||
|
4
|
4
898831 Screw |
898831 |
US $22.14 |
||
|
5
|
5
77327 New Genuine Part |
77327 |
US $164.11 |
||
|
6
|
6
49339 Washer |
49339 |
US $1.62 |
||
|
7
|
7
25096 Nut, lower mount screw |
25096 |
US $20.78 |
||
|
8
|
8
88238A1
New Genuine Part
|
88238A1 |
— | ||
| replacement | |||||
|
8
|
8
88238A10 CABLE ASSY |
88238A10 |
US $6.83 |
||
|
9
|
9
67076 Clamp, lower mount |
67076 |
US $22.67 |
||
| replacement | |||||
|
9
|
9
8M0036782 CLAMP |
8M0036782 |
US $22.67 |
||
|
10
|
10
66727 Screw, , exhaust plate attaching |
66727 |
US $2.54 |
||
|
11
|
11
67077 New Genuine Part |
67077 |
US $24.22 |
||
| replacement | |||||
|
11
|
11
8M4500752 COVER |
8M4500752 |
US $24.22 |
||
|
11
|
11
67077T6
New Genuine Part
|
67077T6 |
— | ||
| replacement | |||||
|
11
|
11
67077F1
N.l.a.
|
67077F1 |
— | ||
|
12
|
12
88417 Screw, cover |
88417 |
US $1.62 |
||
|
13
|
13
35521 Nut, lower mount clamp cover |
35521 |
US $2.43 |
||
|
14
|
14
88238A2
New Genuine Part
|
88238A2 |
— | ||
| replacement | |||||
|
14
|
14
88238A10 CABLE ASSY |
88238A10 |
US $6.83 |
||
|
15
|
15
41508 Scerw, starter solenoid to bracket |
41508 |
US $3.36 |
||
|
16
|
16
73862
Washer, gear housing stud
|
73862 |
— | ||
|
17
|
17
29489
Nut, gear housing studs
|
29489 |
— | ||
|
18
|
18
45176 Washer, stainless steel |
45176 |
US $1.28 |
||
|
19
|
19
34933 Nut, stainless steel, gimbal housing stud |
34933 |
US $4.64 |
||
|
20
|
20
64649 Plug, plastic - water pick-up hole |
64649 |
US $4.64 |
||
|
21
|
21
89743
N.l.a.
|
89743 |
— | ||
|
22
|
22
66350 New Genuine Part |
66350 |
US $11.14 |
||
| replacement | |||||
|
22
|
22
66350001 New Genuine Part |
66350001 |
US $12.34 |
||
|
23
|
23
86027 New Genuine Part |
86027 |
US $64.90 |
||
|
24
|
24
67295 Tube, water |
67295 |
US $50.11 |
||
| replacement | |||||
|
24
|
24
8M0042788 TUBE-WATER-LONG |
8M0042788 |
US $50.11 |
||
|
25
|
25
991731 Gasket, drive shaft housing to plate |
991731 |
US $19.25 |
||
| replacement | |||||
|
25
|
25
991734 Gasket |
991734 |
US $24.63 |
||
|
26
|
26
41945A7
N.l.a.
|
41945A7 |
— | ||
|
27
|
27
183982 New Genuine Part |
183982 |
US $47.55 |
||
| replacement | |||||
|
27
|
27
8M0043165 SEAL-27.00 INCH |
8M0043165 |
US $47.55 |
||
|
28
|
28
68011 New Genuine Part |
68011 |
US $8.58 |
||
|
29
|
29
48408 Screw, exhaust relief cover |
48408 |
US $2.22 |
||
|
30
|
30
20033 Pin, dowel |
20033 |
US $1.97 |
||
| replacement | |||||
|
30
|
30
43044 Pin, dowel - without hole |
43044 |
US $1.92 |
||
|
31
|
31
38970 Seal, rubber-water inlet tube |
38970 |
US $4.40 |
||
|
32
|
32
90192 Screw, , extension to plate |
90192 |
US $1.62 |
||
|
33
|
33
991771 Gasket |
991771 |
US $25.97 |
||
| replacement | |||||
|
33
|
33
991772 Gasket |
991772 |
US $25.97 |
||
|
34
|
34
25970 Washer, mounting bracket screw |
25970 |
US $1.28 |
||
| replacement | |||||
|
34
|
34
20553 Washer, , alternator brace screw |
20553 |
US $1.28 |
||
|
35
|
35
69254 Nut, rod end |
69254 |
US $6.38 |
||
|
36
|
36
17303
Exh ????????
|
17303 |
— | ||
| replacement | |||||
|
36
|
36
17303T1
N.l.a.
|
17303T1 |
— | ||
|
37
|
37
78246 Gasket |
78246 |
US $9.86 |
||
| replacement | |||||
|
37
|
37
782461 Gasket, exhaust diffuser |
782461 |
US $9.86 |
||
|
NI
|
NI
11338A88
Gasket Set Engine Overhaul
|
11338A88 |
— | ||
