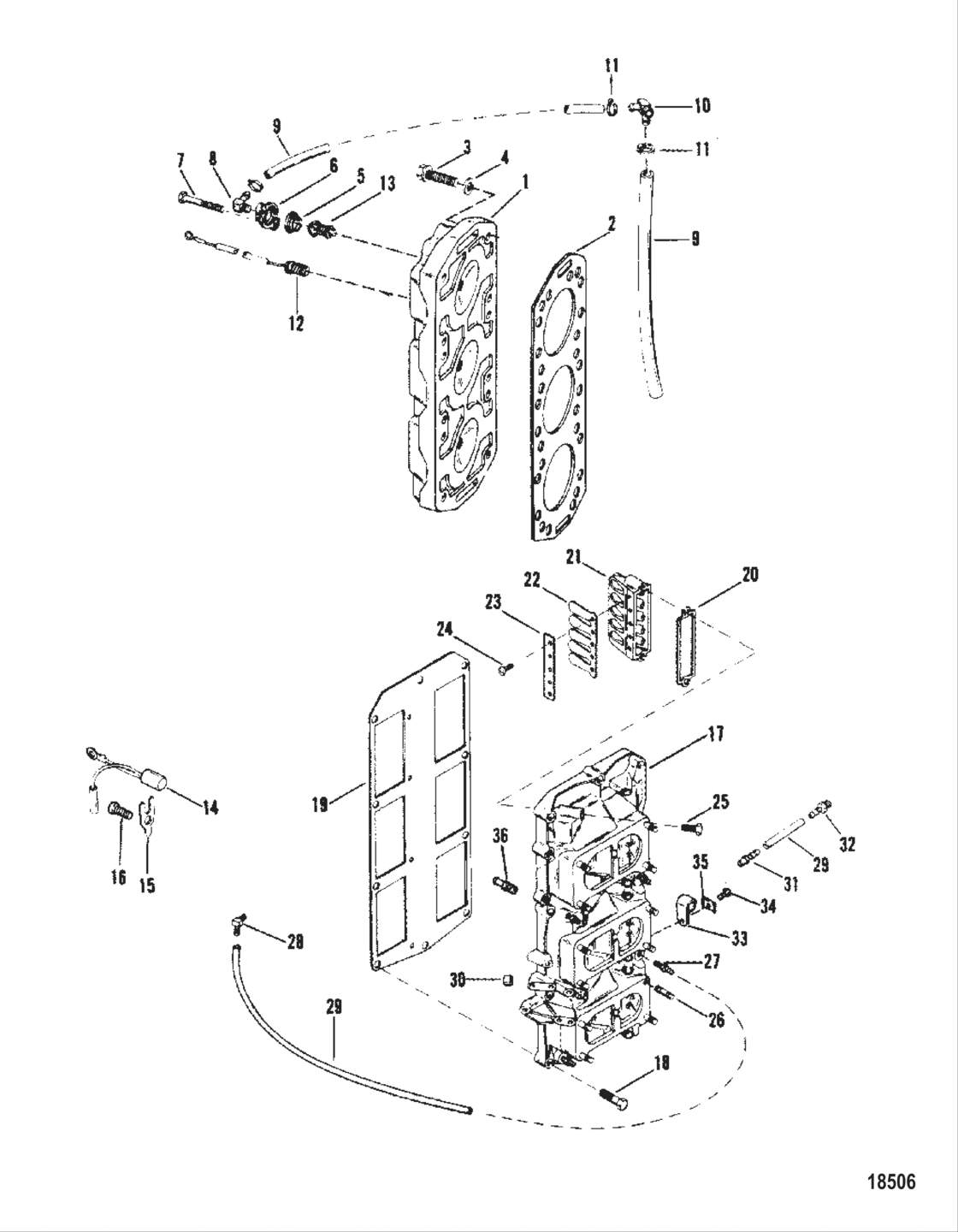

Reed Block And Cylinder Head Diagram Mercury-Mercruiser XR-MAGNUM Magnum II
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0C100861 THRU 0C239552
- Кол-в цилиндров
- 6
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15221A1
New Genuine Part
|
15221A1 |
— | ||
| replacement | |||||
|
1
|
1
15221A5
New Genuine Part
|
15221A5 |
— | ||
|
2
|
2
41246 Gasket, cylinder head |
41246 |
US $75.25 |
||
| replacement | |||||
|
2
|
2
41247T01 GASKET |
41247T01 |
US $75.25 |
||
|
3
|
3
98534 Screw |
98534 |
US $3.47 |
||
|
4
|
4
25909 Washer, , mounting bracket screw |
25909 |
US $1.62 |
||
|
5
|
5
62386 Gasket, thermostat |
62386 |
US $2.98 |
||
| replacement | |||||
|
5
|
5
62386001 Gasket |
62386001 |
US $3.18 |
||
|
6
|
6
90390A1 Cover kit-thermo |
90390A1 |
US $66.98 |
||
|
7
|
7
35386 Screw, , shift bracket to shift mounting bracket |
35386 |
US $1.28 |
||
|
8
|
8
68727 Fitting, 90 degree - brass |
68727 |
US $32.67 |
||
| replacement | |||||
|
8
|
8
687271 Fitting, 90 degree - brass |
687271 |
US $41.70 |
||
|
9
|
9
7765377
Hose
|
7765377 |
— | ||
| replacement | |||||
|
9
|
9
77653101 Hose |
77653101 |
US $63.44 |
||
|
10
|
10
68728 Fitting, the thermostat cover to water hoses |
68728 |
US $32.90 |
||
|
11
|
11
90077 Sta-strap, fuel tubing |
90077 |
US $0.51 |
||
| replacement | |||||
|
11
|
11
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
12
|
12
97465 New Genuine Part |
97465 |
US $117.66 |
||
|
13
|
13
75692 Thermostat-143 |
75692 |
US $36.53 |
||
|
14
|
14
13536A7 New Genuine Part |
13536A7 |
US $53.44 |
||
|
15
|
15
13715 New Genuine Part |
13715 |
US $3.47 |
||
| replacement | |||||
|
15
|
15
137151 New Genuine Part |
137151 |
US $3.47 |
||
|
16
|
16
98257 Screw |
98257 |
US $0.93 |
||
|
17
|
17
99747A9
N.l.a.
|
99747A9 |
— | ||
|
18
|
18
24878
Screw, , reed block housing
|
24878 |
— | ||
|
18
|
18
69093
Screw, , ignition amplifier
|
69093 |
— | ||
|
18
|
18
69067 Screw |
69067 |
US $2.78 |
||
|
19
|
19
935361 Gasket, reed block housing |
935361 |
US $11.01 |
||
|
20
|
20
65744 Gasket, reed block |
65744 |
US $6.14 |
||
| replacement | |||||
|
20
|
20
657443 Gasket, reed block |
657443 |
US $6.14 |
||
|
21
|
21
75953 New Genuine Part |
75953 |
US $124.45 |
||
|
22
|
22
75362A1 Reed assembly |
75362A1 |
US $70.45 |
||
|
23
|
23
96183 New Genuine Part |
96183 |
US $8.46 |
||
| replacement | |||||
|
23
|
23
961832 New Genuine Part |
961832 |
US $8.46 |
||
|
24
|
24
57583 Screw |
57583 |
US $1.15 |
||
| replacement | |||||
|
24
|
24
57583T Screw #8-32X3/8 |
57583T |
US $1.15 |
||
|
25
|
25
65746 Screw, rocker cover to cylinder head |
65746 |
US $0.93 |
||
|
26
|
26
27037 Stud, , carburetor mounting |
27037 |
US $3.71 |
||
| replacement | |||||
|
26
|
26
270372 Stud |
270372 |
US $3.71 |
||
|
27
|
27
42658 Check valve |
42658 |
US $14.14 |
||
| replacement | |||||
|
27
|
27
426585
Check valve
|
426585 |
— | ||
|
28
|
28
15133 Elbow |
15133 |
US $22.03 |
||
|
29
|
29
99130122 Hose, bleed drain |
99130122 |
US $59.04 |
||
| replacement | |||||
|
29
|
29
892024122
Tubing,
|
892024122 |
— | ||
|
30
|
30
42657A1
Check valve assembly
|
42657A1 |
— | ||
| replacement | |||||
|
30
|
30
42657A3 CHECK VALVE |
42657A3 |
US $7.45 |
||
|
31
|
31
65857 Fitting adaptor |
65857 |
US $10.08 |
||
| replacement | |||||
|
31
|
31
56759 Fitting |
56759 |
US $10.08 |
||
|
32
|
32
64871A2
Check Valve
|
64871A2 |
— | ||
|
33
|
33
23567 Clip |
23567 |
US $5.10 |
||
|
33
|
33
26404
Clamp, fuel filter -with inline filter
|
26404 |
— | ||
|
34
|
34
69079 Screw, wiring harness leads |
69079 |
US $0.93 |
||
|
35
|
35
69205 C washer |
69205 |
US $0.93 |
||
| replacement | |||||
|
35
|
35
8M0084613 C-Washer |
8M0084613 |
US $0.93 |
||
|
36
|
36
64705 Fitting, pump inlet |
64705 |
US $10.08 |
||
|
NI
|
NI
11338A88
Gasket Set Engine Overhaul
|
11338A88 |
— | ||
