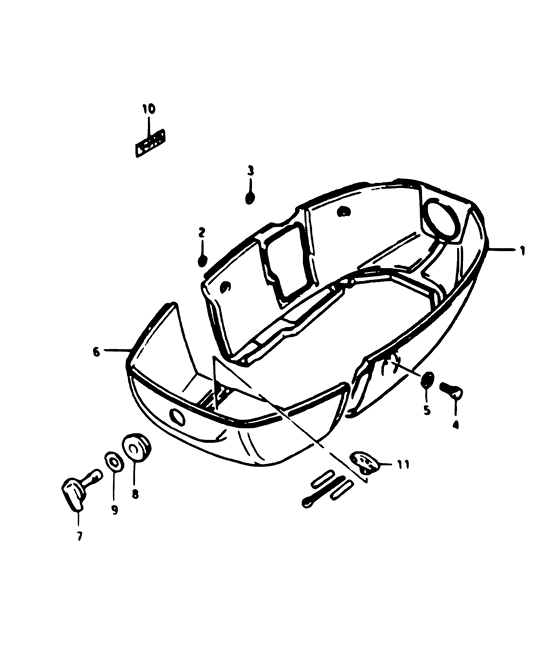

Engine cover Diagram Suzuki #2017out_DT2
- Model
- DT2 D
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61110-98003-01J
Cover, engine lower
|
61110-98003-01J |
— | ||
|
2
|
2
61211-99600-000
Mark, fuel cock "on"
TO 61211-99601 |
61211-99600-000 |
— | ||
|
2
|
2
61211-99601-000
Mark, fuel cock "on"
|
61211-99601-000 |
— | ||
|
3
|
3
61212-99600-000
Mark, fuel cock "off"
TO 61212-99601 |
61212-99600-000 |
— | ||
|
3
|
3
61212-99601-000
Mark, fuel cock "off"
|
61212-99601-000 |
— | ||
|
4
|
4
09100-06018-000
Bolt
6X12 |
09100-06018-000 |
— | ||
| replacement | |||||
|
4
|
4
09100-06131-000 BOLT(6X12)6X12 |
09100-06131-000 |
from US $1.07 |
||
|
5
|
5
09160-06015-000
Washer
6.5X11.5X0.8 |
09160-06015-000 |
— | ||
| replacement | |||||
|
5
|
5
09160-06082-000 WASHER(6.5X13X1.0)6.5X11.5X0.8 |
09160-06082-000 |
from US $0.96 |
||
|
6
|
6
61410-98002-01J
Cover, engine front
TO 61410-98003-01J |
61410-98002-01J |
— | ||
|
6
|
6
61410-98003-01J
Cover, engine front
|
61410-98003-01J |
— | ||
|
7
|
7
61610-99020-000
Fastener, engine cover
|
61610-99020-000 |
— | ||
|
8
|
8
61621-99000-000
Fastener rubber
|
61621-99000-000 |
— | ||
|
9
|
9
08322-21088-000
Washer
|
08322-21088-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
10
|
10
21131-96000-000
Clutch notch ma
|
21131-96000-000 |
— | ||
|
10
|
10
21131-96001-000
Mark, clutch shift
TO 21131-96002 |
21131-96001-000 |
— | ||
| replacements | |||||
|
10
|
10
21131-96010-000
MARK,CLUTCH SHIFT
TO 21131-96002 |
21131-96010-000 |
— | ||
|
10
|
10
21131-91J00-YAY
Mark,clutch Shift
TO 21131-96002 |
21131-91J00-YAY |
— | ||
|
11
|
11
61521-96000-000
HOLDER,SHEAR PIN
TO 61521-98400 |
61521-96000-000 |
— | ||
