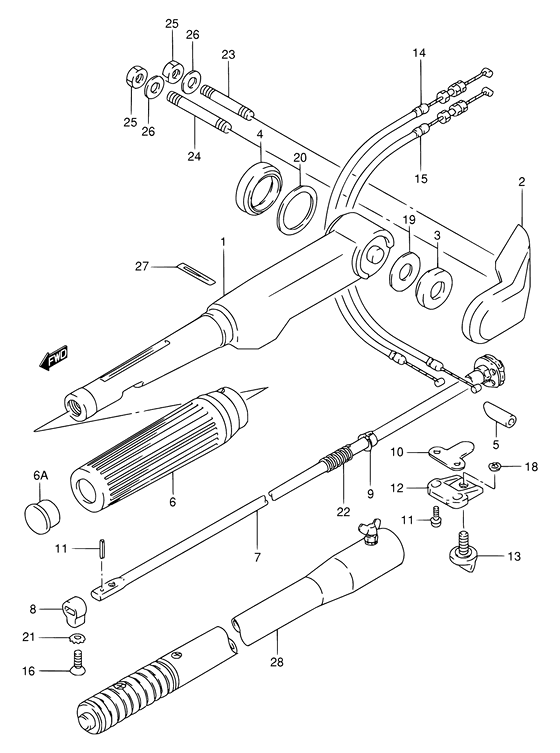

Tiller handle ((MODEL:93~00)) Diagram Suzuki #2017out_DT5
- Model
- DT5S VH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-98101-0ED
Handle,tiller
<-3111-98100-0ED |
63111-98101-0ED |
— | ||
| replacement | |||||
|
1
|
1
63111-98102-0ED
HANDLE,TILLER(GRAY)
<-3111-98100-0ED |
63111-98102-0ED |
— | ||
|
2
|
2
63113-98100-0ED
COVER,TILLER HANDLE
|
63113-98100-0ED |
— | ||
|
2
|
2
63113-98120-0ED
COVER,TILLER HANDLE(GRAY)
MODEL:95~00 |
63113-98120-0ED |
— | ||
|
3
|
3
63115-98100-000 BUSH,TILLER HANDLE COVERBushing |
63115-98100-000 |
US $7.80 |
||
|
4
|
4
63116-98100-000 BUSH,TILLER HANDLEBushing, tiller handle |
63116-98100-000 |
US $8.83 |
||
|
5
|
5
63117-96301-000 COVER,STOP SWITCH WIRECover, stop switch wire <-3117-96300 |
63117-96301-000 |
US $3.02 |
||
|
6
|
6
63210-93E20-000
GRIP ASSY,HANDLE
E40 |
63210-93E20-000 |
— | ||
|
6
|
6
63210-93E30-000 GRIP,HANDLEGrip, handle <-3210-94400 |
63210-93E30-000 |
US $21.56 |
||
|
6A
|
6A
63213-94400-000 CAP,STOP SWITCH |
63213-94400-000 |
US $6.92 |
||
|
7
|
7
63220-98503-000
Rod, handle
<-3220-98502 |
63220-98503-000 |
— | ||
| replacement | |||||
|
7
|
7
63220-98504-000
ROD,HANDLE
<-3220-98502 |
63220-98504-000 |
— | ||
|
8
|
8
63223-92D00-000 STOPPER,HANDLE RODStopper, handle rod |
63223-92D00-000 |
US $4.46 |
||
|
9
|
9
63225-93200-000 BUSH,HANDLE RODBush, handle rod |
63225-93200-000 |
US $1.95 |
||
|
10
|
10
63225-98601-000 PLATE,THROTTLE ADJPlate, handle |
63225-98601-000 |
US $2.08 |
||
|
11
|
11
63227-93200-000 PIN,HANDLE RODPin, handle rod |
63227-93200-000 |
US $1.52 |
||
|
12
|
12
63241-98601-000
Support, rod
|
63241-98601-000 |
— | ||
| replacement | |||||
|
12
|
12
63241-986B0-000 SUPPORT,HANDLE ROD |
63241-986B0-000 |
US $3.36 |
||
|
13
|
13
63244-98601-000
Knob, throttle
|
63244-98601-000 |
— | ||
| replacement | |||||
|
13
|
13
63244-986A0-000 KNOB,THROTTLE ADJKnob, throttle adjust |
63244-986A0-000 |
US $3.39 |
||
|
14
|
14
63610-98102-000
Cable assy,throttle
|
63610-98102-000 |
— | ||
|
15
|
15
63610-98112-000
Cable assy,throttle
|
63610-98112-000 |
— | ||
|
16
|
16
09126-06015-000 SCREW(6X23) |
09126-06015-000 |
US $4.13 |
||
|
17
|
17
09136-05041-000 SCREW(5X20)Screw, rod adjuster |
09136-05041-000 |
from US $1.78 |
||
|
18
|
18
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
19
|
19
09160-13008-000 WASHER(13.5X31.5X0.5)Washer, rear hook lever (13.5x31.5x0.5) |
09160-13008-000 |
from US $4.56 |
||
|
20
|
20
09160-32004-000 WASHER(32.5X42X0.5)Washer (32.5x42x0.5) |
09160-32004-000 |
US $17.30 |
||
|
21
|
21
09163-06001-000 WASHER,LOCK |
09163-06001-000 |
from US $2.35 |
||
|
22
|
22
09440-12027-000 SPRING |
09440-12027-000 |
from US $1.62 |
||
|
23
|
23
01421-08507-000 BOLT,STUDBolt, stud |
01421-08507-000 |
from US $7.87 |
||
|
24
|
24
01421-08607-000 BOLT,STUD |
01421-08607-000 |
from US $9.44 |
||
|
25
|
25
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
26
|
26
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
27
|
27
63215-93110-000 MARK,HANDLE GRIPMark, handle grip |
63215-93110-000 |
from US $1.68 |
||
|
28
|
28
63300-93900-000
Bar assy, extension
OPT |
63300-93900-000 |
— | ||
|
28
|
28
63300-93E00-000 BAR,EXTENSIONBar assy, extension OPT,MODEL:96~00 |
63300-93E00-000 |
US $241.04 |
||
