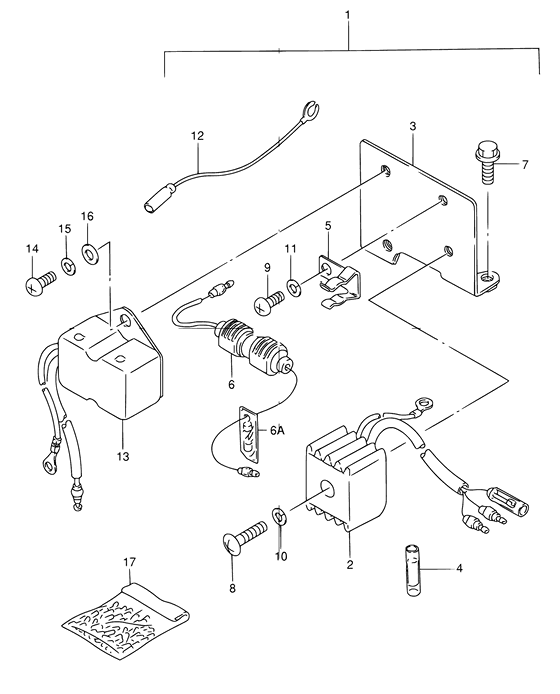

Optional : electrical ((1)) Diagram Suzuki #2017out_DT5
- Model
- DT5Y K2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32801-98602-000
RECTIFIER SET
|
32801-98602-000 |
— | ||
|
2
|
2
32800-95D01-000
Rectifier Assy
|
32800-95D01-000 |
— | ||
| replacement | |||||
|
2
|
2
32800-95D02-000 Rectifier Assy |
32800-95D02-000 |
from US $60.80 |
||
|
3
|
3
32890-98600-000
BRACKET,RECTIFIER
|
32890-98600-000 |
— | ||
|
4
|
4
37132-93700-000 CONNECTOR,WIREConnector, lead wire |
37132-93700-000 |
US $1.62 |
||
|
5
|
5
36791-95200-000 HOLDER,FUSE CASEHolder, fuse |
36791-95200-000 |
US $2.58 |
||
|
6
|
6
36740-95253-000 CASE ASSY,FUSE |
36740-95253-000 |
US $13.14 |
||
|
6A
|
6A
09481-20001-000 FUSE(20A) |
09481-20001-000 |
from US $1.28 |
||
|
7
|
7
09103-06049-000 BOLT(6X12) |
09103-06049-000 |
US $13.20 |
||
|
8
|
8
02142-05257-000 SCREW |
02142-05257-000 |
from US $0.77 |
||
|
9
|
9
02112-06087-000 SCREW |
02112-06087-000 |
from US $0.96 |
||
|
10
|
10
08321-01057-000 Lock washer |
08321-01057-000 |
US $2.64 |
||
| replacement | |||||
|
10
|
10
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
11
|
11
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
12
|
12
37801-98300-000
LEAD,STOP SWITCH
|
37801-98300-000 |
— | ||
| replacement | |||||
|
12
|
12
37801-98301-000 Lead,stop Switch |
37801-98301-000 |
US $2.43 |
||
|
13
|
13
32500-95722-000 REGULATOR ASSY,VOLTAGERegulator assy, voltage |
32500-95722-000 |
US $809.60 |
||
|
14
|
14
02112-06107-000 SCREW |
02112-06107-000 |
from US $0.76 |
||
|
15
|
15
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
16
|
16
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
17
|
17
36990-87D00-000 TERMINAL / SLEEVE SETTerminal & sleeve set |
36990-87D00-000 |
US $12.02 |
||
