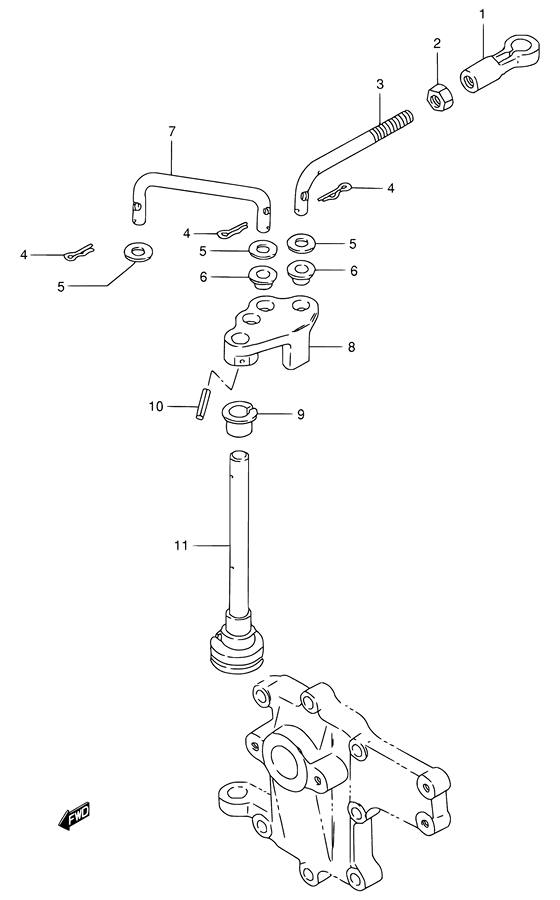

Throttle control Diagram Suzuki #2017out_DT6
- Model
- DT6S N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67463-95200-000 CONNECTOR,THROTTLE CONTROLConnector, throttle rod |
67463-95200-000 |
US $2.58 |
||
|
2
|
2
09140-05005-000 NUT |
09140-05005-000 |
from US $1.22 |
||
|
3
|
3
19171-98101-000
LINK,STARTER
|
19171-98101-000 |
— | ||
|
4
|
4
09385-05004-000 PIN,SNAP |
09385-05004-000 |
from US $0.91 |
||
|
5
|
5
09160-05029-000 WASHER(5.5X12X0.8) |
09160-05029-000 |
from US $1.12 |
||
|
6
|
6
09306-05002-000
Bush
|
09306-05002-000 |
— | ||
|
7
|
7
19111-98103-000
LINK,THROTTLE
DT8 |
19111-98103-000 |
— | ||
|
7
|
7
19111-98110-000
LINK,THROTTLE
DT6 |
19111-98110-000 |
— | ||
|
7
|
7
19111-98501-000 LINK,THROTTLEDT5 ~MODEL:94 |
19111-98501-000 |
US $6.84 |
||
|
8
|
8
19181-98120-000 LEVER,THROTTLE |
19181-98120-000 |
US $6.29 |
||
|
9
|
9
63225-93200-000 BUSH,HANDLE RODBush, handle rod |
63225-93200-000 |
US $1.95 |
||
|
10
|
10
63227-93200-000 PIN,HANDLE RODPin, handle rod |
63227-93200-000 |
US $1.52 |
||
|
11
|
11
19110-98100-000
LEVER,THROTTLE SHAFT
DT6/DT8 DT5 MODEL:95~98 |
19110-98100-000 |
— | ||
|
11
|
11
19110-98500-000
Lever throt sha
DT5 ~MODEL:94 |
19110-98500-000 |
— |
