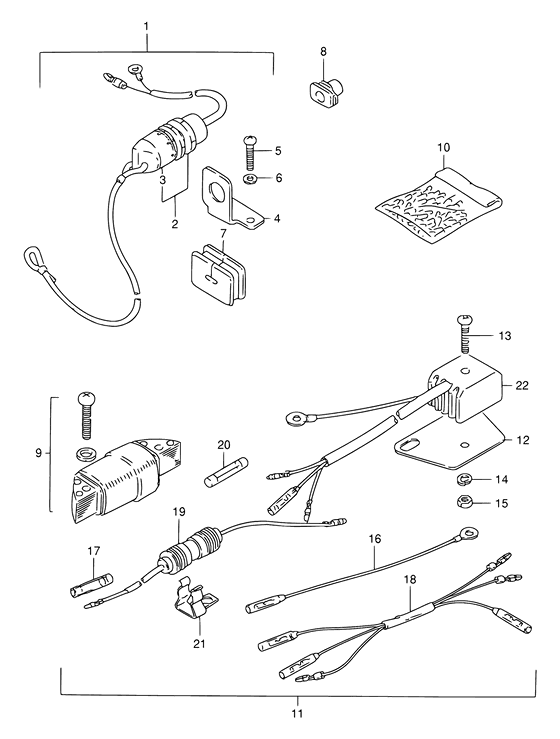

Optional : electrical ((1)) Diagram Suzuki #2017out_DT6
- Model
- DT6S S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37802-98102-000
Switch set,emer
<-7802-98101 ~MODEL:93 |
37802-98102-000 |
— | ||
|
2
|
2
37830-89X50-000
Switch,emergenc
<-7820-98112 |
37830-89X50-000 |
— | ||
| replacement | |||||
|
2
|
2
37830-89X51-000
SWITCH ASSY,EMERGENCY & STOP
<-7820-98112 |
37830-89X51-000 |
— | ||
|
3
|
3
37823-94400-000
CAP & ROPE
|
37823-94400-000 |
— | ||
| replacement | |||||
|
3
|
3
37823-94401-000 Cap & Rope |
37823-94401-000 |
US $26.21 |
||
|
4
|
4
37950-98501-000
Bracket, emcrg
|
37950-98501-000 |
— | ||
|
5
|
5
02112-04163-000
Screw
|
02112-04163-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-0416A-000 SCREW |
02112-0416A-000 |
from US $0.68 |
||
|
6
|
6
08321-01043-000
Lock washer
|
08321-01043-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.96 |
||
|
7
|
7
37824-92D00-000
GROMMET
<-7824-93900 |
37824-92D00-000 |
— | ||
|
8
|
8
37824-98100-000
Grommet
~MODEL:92 |
37824-98100-000 |
— | ||
|
9
|
9
32200-99100-000
LIGHTING COIL SET
MODEL:95~97 |
32200-99100-000 |
— | ||
|
9
|
9
32220-98110-000
LIGHTING COIL SET
<-2200-98110 |
32220-98110-000 |
— | ||
|
10
|
10
36990-87D00-000 TERMINAL / SLEEVE SETTerminal & sleeve set |
36990-87D00-000 |
US $12.02 |
||
|
11
|
11
32801-98102-000
RECTIFIER SET
<-2801-98101 |
32801-98102-000 |
— | ||
| replacement | |||||
|
11
|
11
32801-98103-000 Rectifier Set<-2801-98101 |
32801-98103-000 |
US $113.34 |
||
|
12
|
12
32890-98100-000
STAY,RECTIFIER
|
32890-98100-000 |
— | ||
|
13
|
13
02142-05257-000 SCREW |
02142-05257-000 |
from US $0.77 |
||
|
14
|
14
08321-01057-000 Lock washer |
08321-01057-000 |
US $2.64 |
||
| replacement | |||||
|
14
|
14
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
15
|
15
08310-00057-000 NUT |
08310-00057-000 |
from US $0.32 |
||
|
16
|
16
36898-93300-000
Lead wire
MODEL:87,88 |
36898-93300-000 |
— | ||
|
16
|
16
37801-98300-000
LEAD,STOP SWITCH
MODEL:89~00 |
37801-98300-000 |
— | ||
| replacement | |||||
|
16
|
16
37801-98301-000 Lead,stop SwitchMODEL:89~00 |
37801-98301-000 |
US $2.43 |
||
|
17
|
17
37132-93700-000 CONNECTOR,WIREConnector, lead wire |
37132-93700-000 |
US $1.62 |
||
|
18
|
18
32802-98100-000
EXTENSION,LEAD RECTIFIER
|
32802-98100-000 |
— | ||
|
19
|
19
36740-95253-000 CASE ASSY,FUSE<-6740-95252 |
36740-95253-000 |
US $13.14 |
||
|
20
|
20
09481-20001-000 FUSE(20A) |
09481-20001-000 |
from US $1.28 |
||
|
21
|
21
36791-95200-000 HOLDER,FUSE CASEHolder, fuse |
36791-95200-000 |
US $2.58 |
||
|
22
|
22
32800-95D01-000
Rectifier Assy
<-2800-95720 |
32800-95D01-000 |
— | ||
| replacement | |||||
|
22
|
22
32800-95D02-000 Rectifier Assy<-2800-95720 |
32800-95D02-000 |
from US $60.80 |
||
