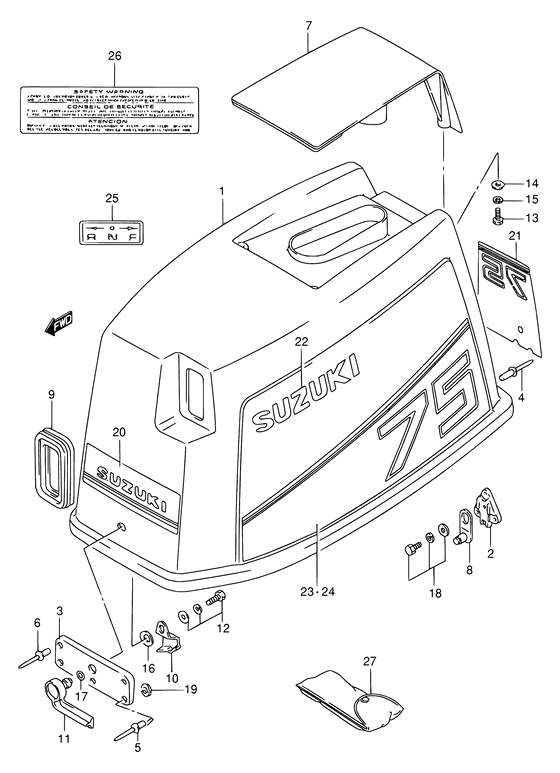

Engine cover ((DT75MQ/MODEL:89~94); NOTE : COLOR : 01T (WHITE) 70G (764/019) 8EH (26M/764) 0ED (GRAY) 019 (BLACK) 12R (SILVER) 26M (BURGUNDY) 764 (GOLD)) Diagram Suzuki #2017out_DT75
- Model
- DT75WT VJ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61411-95851-01T
Cover set, engine
->1411-95854-0ED |
61411-95851-01T |
— | ||
|
1
|
1
61411-95854-0ED
Cover set, engine
<-1411-95852-0ED |
61411-95854-0ED |
— | ||
| replacement | |||||
|
1
|
1
61400-94750-0ED
COVER ASSY,ENGINE(GRAY)
<-1411-95852-0ED |
61400-94750-0ED |
— | ||
|
2
|
2
61621-96303-000
BRACKET,FASTENER
<-1621-96302 |
61621-96303-000 |
— | ||
|
3
|
3
61651-94701-000 HOLDER,FR HOOKHolder, front hook <-1651-94700-01T |
61651-94701-000 |
US $16.85 |
||
|
4
|
4
09229-04028-000
Rivet
|
09229-04028-000 |
— | ||
| replacements | |||||
|
4
|
4
09229-04028-XC0 RIVET |
09229-04028-XC0 |
from US $4.54 |
||
|
4
|
4
09229-04025-000 RIVETRivet, fastener |
09229-04025-000 |
from US $2.66 |
||
|
5
|
5
09229-04026-000 RIVETRivet, holder lower |
09229-04026-000 |
US $13.60 |
||
|
6
|
6
09229-04027-000
RIVET
|
09229-04027-000 |
— | ||
|
7
|
7
61431-95501-0ED
HANDLE,TILT UP
<-1431-95501-01T |
61431-95501-0ED |
— | ||
|
8
|
8
61610-94420-000 FASTENERFastener, rear <-1610-94411 |
61610-94420-000 |
US $12.66 |
||
|
9
|
9
61622-94400-000
Seal rubber
MODEL:89~90 |
61622-94400-000 |
— | ||
|
9
|
9
61622-95500-000 SEAL,RECOIL STARTERRubber, recoil starter seal MODEL:91~94 |
61622-95500-000 |
US $6.62 |
||
|
10
|
10
61641-94700-000
HOOK,FR
|
61641-94700-000 |
— | ||
|
11
|
11
61645-94700-0ED
Lever, fr hook
->1645-94701-0ED USED WITH 09280-13005 |
61645-94700-0ED |
— | ||
| replacements | |||||
|
11
|
11
09280-13005-000 O RING(D:3.5,ID:12.8)O ring, front hook ->1645-94701-0ED USED WITH 09280-13005 |
09280-13005-000 |
from US $1.76 |
||
|
11
|
11
61645-94701-0ED
LEVER,FR HOOK
->1645-94701-0ED USED WITH 09280-13005 |
61645-94701-0ED |
— | ||
|
12
|
12
09118-06095-000 BOLT(6X12)Bolt (6.0x12) |
09118-06095-000 |
from US $3.80 |
||
|
13
|
13
01550-06167-000 Bolt |
01550-06167-000 |
from US $0.68 |
||
|
14
|
14
09160-06036-000 WASHER(6.5X18X1.5)Washer, 6.5x18x1.5 |
09160-06036-000 |
from US $1.60 |
||
|
15
|
15
09162-06006-000 WASHER,LOCKLock washer |
09162-06006-000 |
from US $2.35 |
||
|
16
|
16
09164-13005-000 WASHER |
09164-13005-000 |
from US $5.32 |
||
|
17
|
17
09280-18004-000 O RING(D:2.4,ID:17.8)O ring, front hook |
09280-18004-000 |
from US $2.72 |
||
|
18
|
18
01550-06127-000 BoltBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
19
|
19
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
20
|
20
61422-95D10-70G MARK,FRMark, emblem, front FOR 0ED <-1422-95900-70G |
61422-95D10-70G |
US $9.53 |
||
|
21
|
21
61435-95E10-70G
Mark,emblem,rea
FOR 0ED |
61435-95E10-70G |
— | ||
|
21
|
21
61435-95E10-8EH
Mark, emblem re
<-1435-95690-8EH,FOR 01T |
61435-95E10-8EH |
— | ||
|
22
|
22
61441-95560-764
MARK,SUZUKI
FOR 0ED |
61441-95560-764 |
— | ||
|
22
|
22
68112-43400-019
EMBLEM,SUZUKI(BLACK)
FOR 01T,<-1441-95560-019 |
68112-43400-019 |
— | ||
|
23
|
23
61443-95660-70G
Decal,stbd(gold
FOR 0ED |
61443-95660-70G |
— | ||
|
24
|
24
61453-95660-70G
Decal,port(gold
FOR 0ED |
61453-95660-70G |
— | ||
|
24
|
24
61453-95660-8EH
Decal,engine co
FOR 01T |
61453-95660-8EH |
— | ||
|
25
|
25
21131-96003-000
Mark,clutch shi
|
21131-96003-000 |
— | ||
| replacements | |||||
|
25
|
25
21131-96010-000
MARK,CLUTCH SHIFT
|
21131-96010-000 |
— | ||
|
25
|
25
21131-91J00-YAY
Mark,clutch Shift
|
21131-91J00-YAY |
— | ||
|
26
|
26
61458-95204-000 MARK,SAFETY WARNINGMark, safety warning |
61458-95204-000 |
US $2.17 |
||
|
27
|
27
09800-01001-000
TOOL ASSY
|
09800-01001-000 |
— | ||
| replacement | |||||
|
27
|
27
09800-01016-000 Tool Assy |
09800-01016-000 |
US $63.20 |
||
