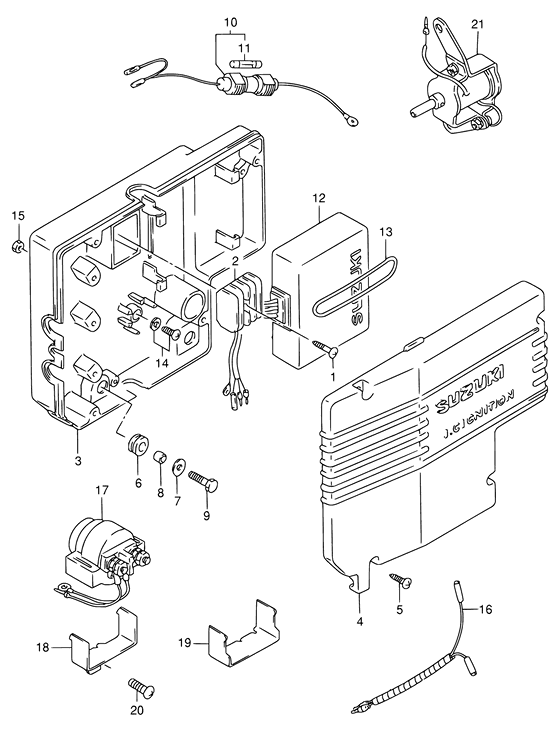

Electrical ((DT85WT,85MQ,85QH MODEL:95~00)) Diagram Suzuki #2017out_DT85
- Model
- DT85WT X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
03242-05253-000
Screw
|
03242-05253-000 |
— | ||
| replacement | |||||
|
1
|
1
03241-0525A-000 SCREW |
03241-0525A-000 |
US $12.50 |
||
|
2
|
2
32800-95D01-000
Rectifier Assy
|
32800-95D01-000 |
— | ||
| replacement | |||||
|
2
|
2
32800-95D02-000 Rectifier Assy |
32800-95D02-000 |
from US $60.80 |
||
|
3
|
3
32890-95611-000
HOLDER,ELECTRIC PARTS
<-2890-95610 |
32890-95611-000 |
— | ||
|
4
|
4
32891-95601-000
COVER,ELEC PARTS HOLDER
|
32891-95601-000 |
— | ||
|
5
|
5
03212-05163-000
Screw
|
03212-05163-000 |
— | ||
| replacements | |||||
|
5
|
5
03212-0516B-000
SCREW
|
03212-0516B-000 |
— | ||
|
5
|
5
13765-48GV0-000 Screw |
13765-48GV0-000 |
from US $3.55 |
||
|
6
|
6
09320-08001-000
CUSHION
|
09320-08001-000 |
— | ||
| replacement | |||||
|
6
|
6
09320-08527-000 Cushion |
09320-08527-000 |
from US $3.25 |
||
|
7
|
7
09160-06052-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06052-000 |
from US $1.44 |
||
|
8
|
8
09180-06248-000 SPACER(6.1X8X9.5)<-9180-06187 |
09180-06248-000 |
from US $1.68 |
||
|
9
|
9
01500-06207-000 Bolt |
01500-06207-000 |
from US $0.76 |
||
|
10
|
10
36740-94771-000 CASE ASSY,FUSE |
36740-94771-000 |
US $32.38 |
||
|
11
|
11
09481-25001-000 FUSE(25A)Fuse, 25a |
09481-25001-000 |
US $16.20 |
||
|
12
|
12
32900-95630-000 UNIT,CDIC.d.i unit |
32900-95630-000 |
US $955.86 |
||
|
13
|
13
09280-70005-000 O RING(D:3.1,ID:69.4)Band (d:3.1 id:69.4) |
09280-70005-000 |
from US $3.94 |
||
|
14
|
14
02112-36207-000 SCREW |
02112-36207-000 |
US $14.40 |
||
|
15
|
15
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
16
|
16
36645-94701-000
LEAD,TRIM EXTENSION
DT85WT |
36645-94701-000 |
— | ||
|
17
|
17
38410-94551-000
Relay assy,trim
DT85WT <-8410-94550 |
38410-94551-000 |
— | ||
| replacement | |||||
|
17
|
17
38410-94552-000 RELAY ASSY,TRIMDT85WT <-8410-94550 |
38410-94552-000 |
US $131.01 |
||
|
18
|
18
38412-94500-000
Bracket, trim r
DT85WT |
38412-94500-000 |
— | ||
|
19
|
19
38412-94700-000
BRACKET,TRIM RELAY
DT85WT |
38412-94700-000 |
— | ||
|
20
|
20
02112-36167-000 SCREWDT85WT |
02112-36167-000 |
from US $0.80 |
||
|
21
|
21
38600-95555-000
SOLENOID ASSY,CHOKE
DT85WT |
38600-95555-000 |
— | ||
