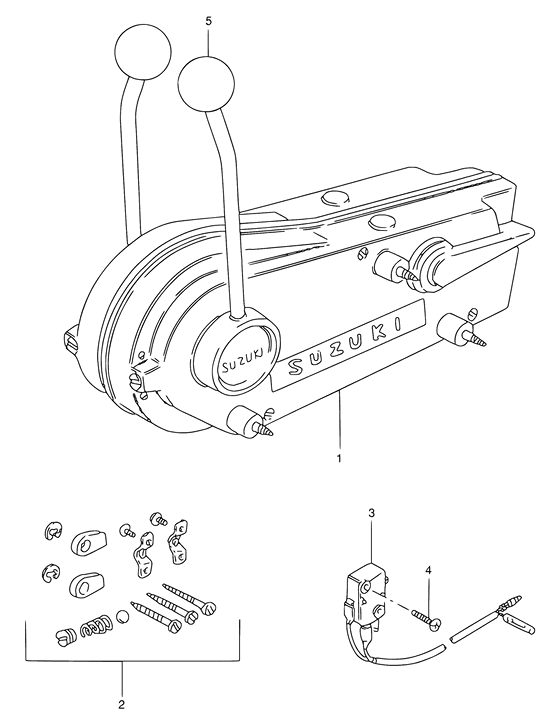

Opt : remote control Diagram Suzuki #2017out_DT85
- Model
- DT85WT X
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67200-95871-000
Remote control box set, twin
|
67200-95871-000 |
— | ||
|
2
|
2
67300-95810-000
HOLDER SET,REMOCON CABLE
|
67300-95810-000 |
— | ||
|
3
|
3
37721-95500-000 SWITCH ASSY,NEUTRAL |
37721-95500-000 |
US $30.40 |
||
|
4
|
4
02112-03123-000
Screw
|
02112-03123-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0312B-000 SCREW |
02112-0312B-000 |
from US $0.78 |
||
|
5
|
5
67214-95200-000
Knob remocon
|
67214-95200-000 |
— | ||
