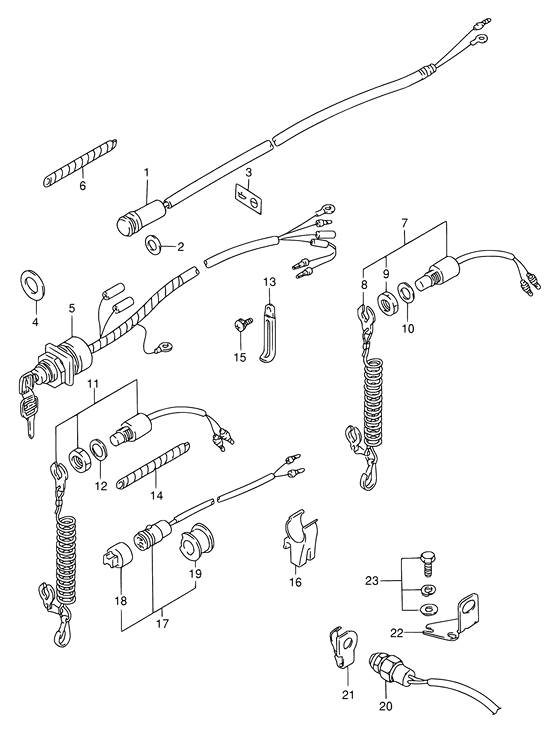

Switch ((DT85WT,85MQ,85QH MODEL:95~00)) Diagram Suzuki #2017out_DT85
- Model
- DT85WT X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36360-94700-000
INDICATOR,OIL LEVEL
DT85MQ,85QH |
36360-94700-000 |
— | ||
|
2
|
2
09320-11004-000 CUSHION |
09320-11004-000 |
US $11.80 |
||
|
3
|
3
36367-95D20-064
LABEL,OIL & HEAT WARNING
DT85MQ,85QH <-6367-94720-064 |
36367-95D20-064 |
— | ||
|
4
|
4
09160-25069-000 WASHER(25X40X1.1)Washer, ignition sw |
09160-25069-000 |
from US $4.50 |
||
|
5
|
5
37110-94632-000
Switch assy,ign
DT85WT,85QH <-7110-94631 |
37110-94632-000 |
— | ||
| replacement | |||||
|
5
|
5
37110-94641-000
Switch assy,ignition
DT85WT,85QH <-7110-94631 |
37110-94641-000 |
— | ||
|
6
|
6
38423-95510-000
Tube,150
|
38423-95510-000 |
— | ||
| replacement | |||||
|
6
|
6
33833-91J00-000 TUBE,SWITCH LEAD(L:250) |
33833-91J00-000 |
US $4.64 |
||
|
7
|
7
37820-92E00-000
Switch assy,eme
DT85QH |
37820-92E00-000 |
— | ||
| replacements | |||||
|
7
|
7
37820-92E04-000
SWITCH ASSY,EMERGENCY
DT85QH |
37820-92E04-000 |
— | ||
|
7
|
7
37820-92E05-000 Switch Assy,emergencyDT85QH |
37820-92E05-000 |
from US $48 |
||
|
8
|
8
37823-92E00-000
Plate,lock
|
37823-92E00-000 |
— | ||
| replacements | |||||
|
8
|
8
37823-92E01-000
PLATE ASSY,EMERGENCY SW LOCK
|
37823-92E01-000 |
— | ||
|
8
|
8
37823-92E02-000 Plate Assy,emergency Sw Lock |
37823-92E02-000 |
US $19.69 |
||
|
9
|
9
37826-92E00-000 NUT |
37826-92E00-000 |
US $5.67 |
||
|
10
|
10
09160-12067-000 WASHER(12.5X23X1)Washer, emergency sw |
09160-12067-000 |
from US $4.73 |
||
|
11
|
11
37830-89E00-000
Switch assy,eme
DT85MQ |
37830-89E00-000 |
— | ||
| replacements | |||||
|
11
|
11
37830-89E03-000
SWITCH ASSY,EMERGENCY & STOP
DT85MQ |
37830-89E03-000 |
— | ||
|
11
|
11
37830-89E04-000 Switch Assy,emergency & StopDT85MQ |
37830-89E04-000 |
US $69.60 |
||
|
12
|
12
09160-12067-000 WASHER(12.5X23X1)Washer, emergency sw |
09160-12067-000 |
from US $4.73 |
||
|
13
|
13
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
13
|
13
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
14
|
14
38423-95510-000
Tube,150
L:150->00 |
38423-95510-000 |
— | ||
| replacement | |||||
|
14
|
14
33833-91J00-000 TUBE,SWITCH LEAD(L:250)L:150->00 |
33833-91J00-000 |
US $4.64 |
||
|
15
|
15
02142-06127-000 SCREW |
02142-06127-000 |
from US $0.76 |
||
|
16
|
16
36616-95301-000 HOLDER,CONNECTORHolder, connector |
36616-95301-000 |
US $4.42 |
||
|
17
|
17
39601-95201-000
Receptacle
DT85MQ |
39601-95201-000 |
— | ||
|
18
|
18
36634-93910-000 CAP |
36634-93910-000 |
from US $2.58 |
||
|
19
|
19
39603-95200-000
SPACER,LIGHTING RECEPTACLEE
|
39603-95200-000 |
— | ||
|
20
|
20
37721-94403-000
Switch assy,neu
DT85QH <-7721-89E02 |
37721-94403-000 |
— | ||
| replacements | |||||
|
20
|
20
37721-94404-000
SWITCH ASSY,NEUTRAL
DT85QH <-7721-89E02 |
37721-94404-000 |
— | ||
|
20
|
20
37721-94406-000 Switch Assy,neutralDT85QH <-7721-89E02 |
37721-94406-000 |
US $28.34 |
||
|
21
|
21
37725-95600-000 ACTUATOR,NEUTRAL SWITCHActuator, neutral switch DT85QH |
37725-95600-000 |
US $6.88 |
||
|
22
|
22
37726-95303-000
BRACKET,NEUTRAL SWITCH
DT85QH |
37726-95303-000 |
— | ||
|
23
|
23
02162-06127-000 SCREWDT85QH |
02162-06127-000 |
from US $0.96 |
||
