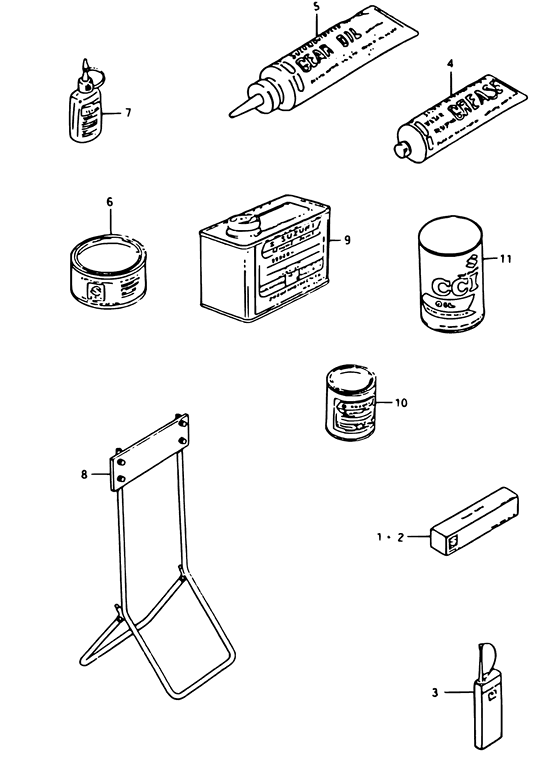

Optional Diagram Suzuki #2017out_DT9
- Model
- DT9 D
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
99000-31030-000
Liquid gasket 1
FOR CRANKCASE,100G |
99000-31030-000 |
— | ||
| replacement | |||||
|
1
|
1
99000-31110-000
LIQUID GSKT NO.1215 250G
FOR CRANKCASE,100G |
99000-31110-000 |
— | ||
|
2
|
2
99000-31050-000
Suzuki sealant
FOR GEAR CASE,100G |
99000-31050-000 |
— | ||
| replacement | |||||
|
2
|
2
93691-80030-000
SEAL
FOR GEAR CASE,100G |
93691-80030-000 |
— | ||
|
3
|
3
99000-32040-000
THREAD LOCK NO.1401 CLEAR 200G
200G |
99000-32040-000 |
— | ||
|
4
|
4
99000-25160-000
Grease resistan
250G |
99000-25160-000 |
— | ||
| replacement | |||||
|
4
|
4
99000-25350-000
GREASE,WATER RESISTANT EP2
250G |
99000-25350-000 |
— | ||
|
4
|
4
99000-25170-000
Grease, water resistant
50G |
99000-25170-000 |
— | ||
| replacement | |||||
|
4
|
4
99000-25350-000
GREASE,WATER RESISTANT EP2
50G |
99000-25350-000 |
— | ||
|
5
|
5
99000-22540-000
Gear oil, outboard motor
400CC |
99000-22540-000 |
— | ||
| replacement | |||||
|
5
|
5
99000-22B33-000
OUTBOARD MOTOR GEAR OIL (SAE90, GL5)
400CC |
99000-22B33-000 |
— | ||
|
6
|
6
99000-25010-000
Suzuki super grease a
450G,FOR CRANK OIL SEAL |
99000-25010-000 |
— | ||
| replacements | |||||
|
6
|
6
99000-25011-000
GREASE(A)450G
450G,FOR CRANK OIL SEAL |
99000-25011-000 |
— | ||
|
6
|
6
99000-25480-000
Ecstar Grease(A)
450G,FOR CRANK OIL SEAL |
99000-25480-000 |
— | ||
|
7
|
7
99000-32030-000
THREAD LOCK NO.1303B PURPL 50G
50G (1303B) |
99000-32030-000 |
— | ||
| replacement | |||||
|
7
|
7
990A0-06E03-10C
ECSTAR TLOCK 13
50G (1303B) |
990A0-06E03-10C |
— | ||
|
8
|
8
09914-39911-000
Hanger, engine
|
09914-39911-000 |
— | ||
|
9
|
9
99000-10205-01J
Paint (500g)
|
99000-10205-01J |
— | ||
|
9
|
9
99000-10105-01T
Paint (500g)
|
99000-10105-01T |
— | ||
|
10
|
10
99000-10209-01J
Paint (90g)
|
99000-10209-01J |
— | ||
|
10
|
10
99000-10109-01T
Paint (90g)
|
99000-10109-01T |
— | ||
|
11
|
11
99000-21021-000
Cci oil (41x6)
|
99000-21021-000 |
— | ||
|
11
|
11
99000-21145-000
Cci oil (11x24)
|
99000-21145-000 |
— | ||
|
11
|
11
99000-21150-000
CCI OIL
|
99000-21150-000 |
— | ||
|
11
|
11
99000-21250-000
Cci super oil (11x24)
|
99000-21250-000 |
— | ||
|
11
|
11
99000-21260-000
Cci super oil (41x6)
|
99000-21260-000 |
— | ||
|
11
|
11
99000-21460-000
Cci oil (11x24)
|
99000-21460-000 |
— | ||
