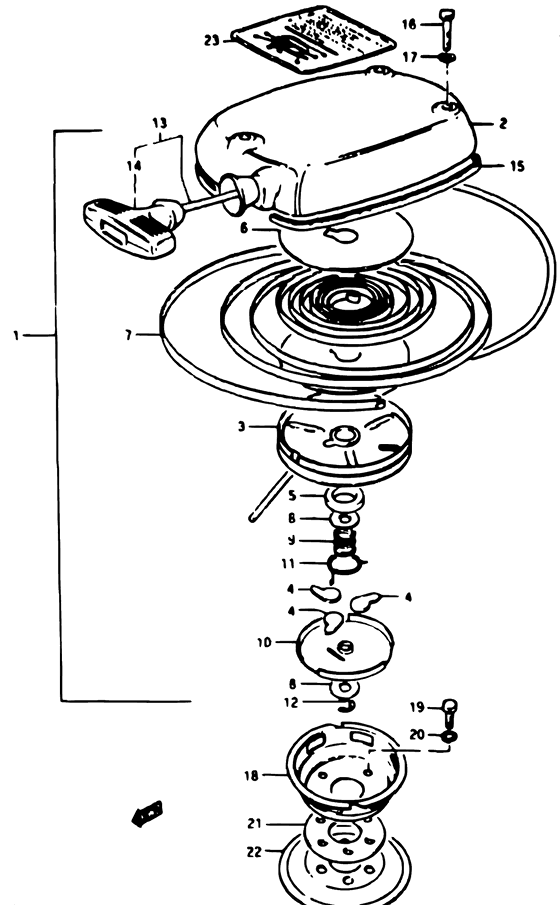

Starter Diagram Suzuki #2017out_DT9
- Model
- DT9 D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18100-98004-01T
Starter assy, recoil
TO 18100-98005-01T |
18100-98004-01T |
— | ||
|
1
|
1
18100-98005-01T
Starter assy, recoil
|
18100-98005-01T |
— | ||
|
2
|
2
18111-98001-01T
Case, starter
|
18111-98001-01T |
— | ||
|
3
|
3
18121-98001-000
Drum, sheave
|
18121-98001-000 |
— | ||
|
4
|
4
18131-98001-000
PAWL,DRIVE
|
18131-98001-000 |
— | ||
|
5
|
5
18125-98000-000
Oil felt
|
18125-98000-000 |
— | ||
|
6
|
6
18138-98000-000
Spacer, spring
TO 18138-98001 |
18138-98000-000 |
— | ||
|
7
|
7
18142-98001-000
Spring recoil
|
18142-98001-000 |
— | ||
| replacement | |||||
|
7
|
7
18142-24400-000 SPRING,RECOIL |
18142-24400-000 |
from US $24.50 |
||
|
8
|
8
18143-98001-000
Washer
|
18143-98001-000 |
— | ||
|
9
|
9
18145-98001-000
Coil spring
|
18145-98001-000 |
— | ||
|
10
|
10
18151-98002-000
Plate, drive
|
18151-98002-000 |
— | ||
|
11
|
11
18155-98000-000 SPRING,RETURNSpring, return |
18155-98000-000 |
US $4.60 |
||
|
12
|
12
18163-98001-000
Circlip, drive plate
|
18163-98001-000 |
— | ||
|
13
|
13
18200-93810-000
Grip set (to 18200-93811)
TO 18200-93811 |
18200-93810-000 |
— | ||
| replacement | |||||
|
13
|
13
18210-93002-000 GRIP ASSYTO 18200-93811 |
18210-93002-000 |
from US $8.76 |
||
|
13
|
13
18200-93811-000
Grip set
TO 18200-93100 |
18200-93811-000 |
— | ||
| replacement | |||||
|
13
|
13
18210-93002-000 GRIP ASSYTO 18200-93100 |
18210-93002-000 |
from US $8.76 |
||
|
14
|
14
18210-93000-000
Grip, starter
FROM 18211-98000,TO 18210-93001 |
18210-93000-000 |
— | ||
| replacement | |||||
|
14
|
14
18210-93002-000 GRIP ASSYFROM 18211-98000,TO 18210-93001 |
18210-93002-000 |
from US $8.76 |
||
|
14
|
14
18210-93001-000
Grip, starter
|
18210-93001-000 |
— | ||
| replacement | |||||
|
14
|
14
18210-93002-000 GRIP ASSY |
18210-93002-000 |
from US $8.76 |
||
|
15
|
15
18251-98000-000
Rubber, starter seal
|
18251-98000-000 |
— | ||
|
16
|
16
09100-06022-000
Bolt
6X35 |
09100-06022-000 |
— | ||
| replacement | |||||
|
16
|
16
09117-06037-XC0
BOLT(6X35)
6X35 |
09117-06037-XC0 |
— | ||
|
17
|
17
09160-06015-000
Washer
6.5X11.5X0.8 |
09160-06015-000 |
— | ||
| replacement | |||||
|
17
|
17
09160-06082-000 WASHER(6.5X13X1.0)6.5X11.5X0.8 |
09160-06082-000 |
from US $0.96 |
||
|
18
|
18
18411-98002-000
Cup, starter
|
18411-98002-000 |
— | ||
|
19
|
19
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
19
|
19
01500-06167-000 BoltBolt, fuel cooler |
01500-06167-000 |
from US $0.72 |
||
|
20
|
20
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
20
|
20
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
21
|
21
18511-98000-000
Spacer, starter cup
|
18511-98000-000 |
— | ||
|
22
|
22
32725-98000-000
Insulator, magneto
|
32725-98000-000 |
— | ||
|
22
|
22
32725-98400-000
Insulator, magneto
FROM 32725-98000 |
32725-98400-000 |
— | ||
|
23
|
23
61511-93602-000
Mark, start indicate
|
61511-93602-000 |
— | ||
|
23
|
23
61511-99611-000
Mark, start indicate
TO 61511-93602 |
61511-99611-000 |
— | ||
