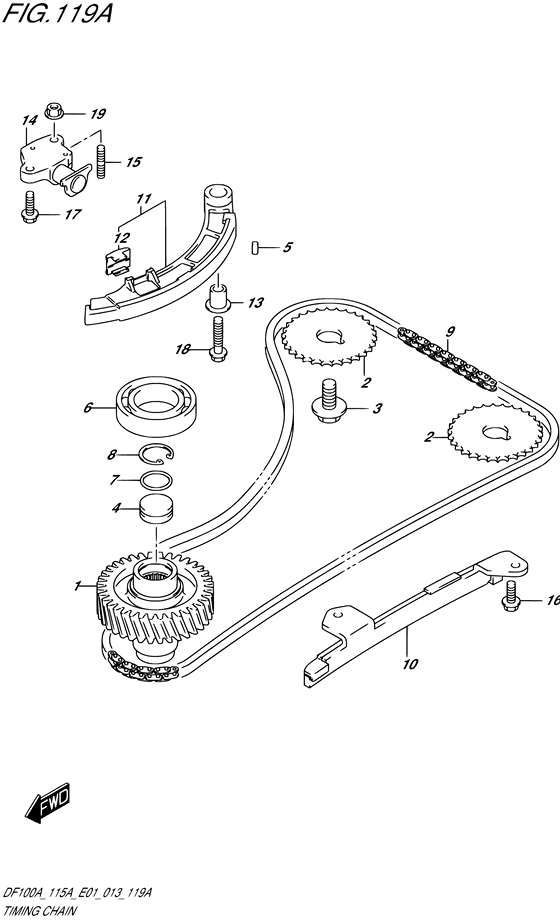

Timing chain Diagram Suzuki DF100A TL/X
- Year
- 2013
- Model
- DF100A
- Year
- 2013
- Engine
- 10003F-310001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 100
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12732-90J00-000
GEAR,DRIVEN
|
12732-90J00-000 |
— | ||
| replacement | |||||
|
1
|
1
12732-90J01-000 Gear,driven |
12732-90J01-000 |
from US $131.27 |
||
|
2
|
2
12741-90J01-000 SPROCKET,CAMSHAFT TIMING |
12741-90J01-000 |
US $13.68 |
||
|
3
|
3
09103-12049-000 BOLT(12X25)Bolt (12x25) |
09103-12049-000 |
from US $1.80 |
||
|
4
|
4
12733-90J00-000 PLUG,DRIVEN GEAR |
12733-90J00-000 |
US $5.23 |
||
|
5
|
5
04221-05109-000 PIN |
04221-05109-000 |
from US $0.80 |
||
|
6
|
6
09262-35068-000 BEARING(35X62X14)UPPER |
09262-35068-000 |
from US $27.20 |
||
|
7
|
7
09280-22022-000 O RING(D:1.9,ID:21.8) |
09280-22022-000 |
from US $4.10 |
||
|
8
|
8
08331-41269-000 CIRCLIP |
08331-41269-000 |
from US $1.87 |
||
|
9
|
9
12761-90J00-000
CHAIN,TIMING
|
12761-90J00-000 |
— | ||
| replacement | |||||
|
9
|
9
12761-90J10-000 Chain Comp,timing |
12761-90J10-000 |
from US $62.44 |
||
|
10
|
10
12771-90J00-000 GUIDE,TIMING CHAIN |
12771-90J00-000 |
from US $36.80 |
||
|
11
|
11
12810-90J00-000 TENSIONER,TIMING CHAIN |
12810-90J00-000 |
from US $47.95 |
||
|
12
|
12
12813-73G00-000 PAD,TIMING CHAIN TENSIONERPad, timing chain tensioner |
12813-73G00-000 |
from US $2.72 |
||
|
13
|
13
12812-90J00-000 SPACER,TIMING CHAIN TENSIONER |
12812-90J00-000 |
US $4.75 |
||
|
14
|
14
12831-90J02-000 ADJUSTER ASSY,TENSIONERAdjuster, tensioner |
12831-90J02-000 |
from US $67.50 |
||
|
15
|
15
01421-0616A-000 BOLT,STUD |
01421-0616A-000 |
from US $1.07 |
||
|
16
|
16
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
17
|
17
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
18
|
18
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
19
|
19
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
