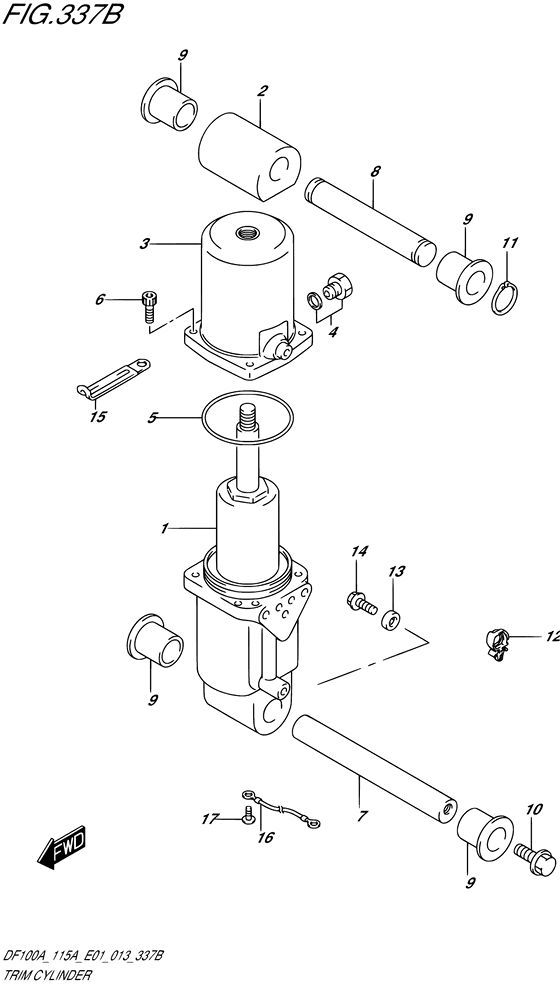

Trim cylinder ((DF100AT E40)) Diagram Suzuki DF100A TL/X
- Year
- 2013
- Model
- DF100A
- Year
- 2013
- Engine
- 10003F-310001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 100
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48400-90J02-000
MANIFOLD ASSY
|
48400-90J02-000 |
— | ||
| replacement | |||||
|
1
|
1
48400-90J03-000 Manifold Assy |
48400-90J03-000 |
US $626.56 |
||
|
2
|
2
48611-90J00-000 JOINT,METAL |
48611-90J00-000 |
US $142.05 |
||
|
3
|
3
48571-87L00-000
TANK,RESERVOIR
|
48571-87L00-000 |
— | ||
| replacement | |||||
|
3
|
3
48571-87L01-000 TANK,RESERVOIR |
48571-87L01-000 |
US $86.40 |
||
|
4
|
4
48572-87J10-000 PLUG |
48572-87J10-000 |
from US $8.64 |
||
|
5
|
5
48557-90J00-000 O RING |
48557-90J00-000 |
US $11.68 |
||
|
6
|
6
48862-87J20-000 BOLT,RESERVOIR |
48862-87J20-000 |
US $10.30 |
||
|
7
|
7
48121-90J00-000 SHAFT,TILT CYLINDER LWRShaft, tilt cyl lower |
48121-90J00-000 |
from US $54.10 |
||
|
8
|
8
48321-90J00-000 SHAFT,TILT CYLINDER UPRShaft, tilt cyl upper |
48321-90J00-000 |
US $34.59 |
||
|
9
|
9
48326-95E00-000 BUSH,TILT CYLINDER LWRBush, tilt cylinder |
48326-95E00-000 |
US $2.40 |
||
|
10
|
10
09116-10174-000
Bolt,10x35
|
09116-10174-000 |
— | ||
| replacement | |||||
|
10
|
10
09116-10179-000 BOLT(10X35) |
09116-10179-000 |
from US $10.82 |
||
|
11
|
11
09380-22015-000 CIRCLIP |
09380-22015-000 |
from US $2.13 |
||
|
12
|
12
09403-20308-000 CLAMP |
09403-20308-000 |
from US $1.37 |
||
|
13
|
13
55321-87J00-000
Anode,protection
|
55321-87J00-000 |
— | ||
| replacement | |||||
|
13
|
13
55321-87J01-000 ANODE,PROTECTION |
55321-87J01-000 |
from US $8.10 |
||
|
14
|
14
09103-06281-000 BOLT(6X14)Bolt, protection anode |
09103-06281-000 |
from US $1.28 |
||
|
15
|
15
29404-93J10-000
CLAMP
|
29404-93J10-000 |
— | ||
| replacement | |||||
|
15
|
15
29404-93J11-000 Clamp |
29404-93J11-000 |
US $1.78 |
||
|
16
|
16
36895-87D10-000 LEAD(L:310)Lead (swivel to hsg) |
36895-87D10-000 |
from US $8.98 |
||
|
17
|
17
09125-05050-000 SCREW(5X8) |
09125-05050-000 |
from US $1.22 |
||
