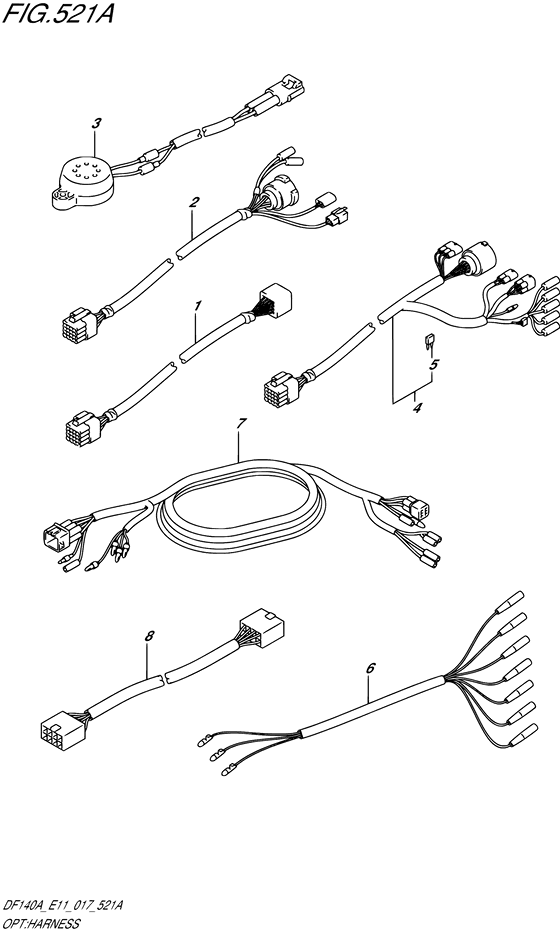

Opt:harness Diagram Suzuki DF100A TL/X
- Year
- 2017
- Model
- DF100A
- Year
- 2017
- Engine
- 10003F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 100
- Sales region
- General Export (P11)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36620-93J10-000
WIRE ASSY,REMOCON EXT(L:2000)
L:2000 |
36620-93J10-000 |
— | ||
| replacement | |||||
|
1
|
1
36620-93J11-000 Wire Assy,remocon Ext(L:2000)L:2000 |
36620-93J11-000 |
US $94.94 |
||
|
1
|
1
36620-93J40-000
WIRE ASSY,REMOCON EXT(L:3000)
L:3000 |
36620-93J40-000 |
— | ||
| replacement | |||||
|
1
|
1
36620-93J41-000
Wire Assy,remote Control Ext
L:3000 |
36620-93J41-000 |
— | ||
|
2
|
2
36620-93J30-000
WIRE ASSY,REMOCON(L:2000)
L:2000 |
36620-93J30-000 |
— | ||
| replacement | |||||
|
2
|
2
36620-93J31-000 Wire Assy,remocon(L:2000)L:2000 |
36620-93J31-000 |
US $148.80 |
||
|
3
|
3
38500-93J00-000
BUZZER ASSY,WARNING
|
38500-93J00-000 |
— | ||
| replacement | |||||
|
3
|
3
38500-93J90-000 BUZZER,WARNING |
38500-93J90-000 |
US $58.08 |
||
|
4
|
4
36620-93J52-000
WIRE ASSY,REMOTE CONTROL
L:3500 |
36620-93J52-000 |
— | ||
| replacement | |||||
|
4
|
4
36620-93J53-000 Wire Assy,remote ControlL:3500 |
36620-93J53-000 |
US $198.72 |
||
|
4
|
4
36620-93J02-000
WIRE ASSY,REMOTE CONTROL
|
36620-93J02-000 |
— | ||
| replacement | |||||
|
4
|
4
36620-93J03-000 Wire Assy,remote Control |
36620-93J03-000 |
US $235.60 |
||
|
4
|
4
36620-93J62-000
WIRE ASSY,REMOTE CONTROL
L:6500 |
36620-93J62-000 |
— | ||
| replacement | |||||
|
4
|
4
36620-93J63-000 Wire Assy,remote ControlL:6500 |
36620-93J63-000 |
US $246.56 |
||
|
5
|
5
09481-10501-000 FUSE(10A) |
09481-10501-000 |
from US $1.01 |
||
|
6
|
6
36630-92E00-000 WIRE ASSY,INSTRUMENTWire assy, instrument |
36630-92E00-000 |
US $46 |
||
|
7
|
7
36660-94480-000 WIRE,SENDER EXT(L:2000)Wire, sender ext s |
36660-94480-000 |
US $57.41 |
||
|
8
|
8
36667-96L20-000 WIRE COMP,GAUGE EXT |
36667-96L20-000 |
US $36.80 |
||
