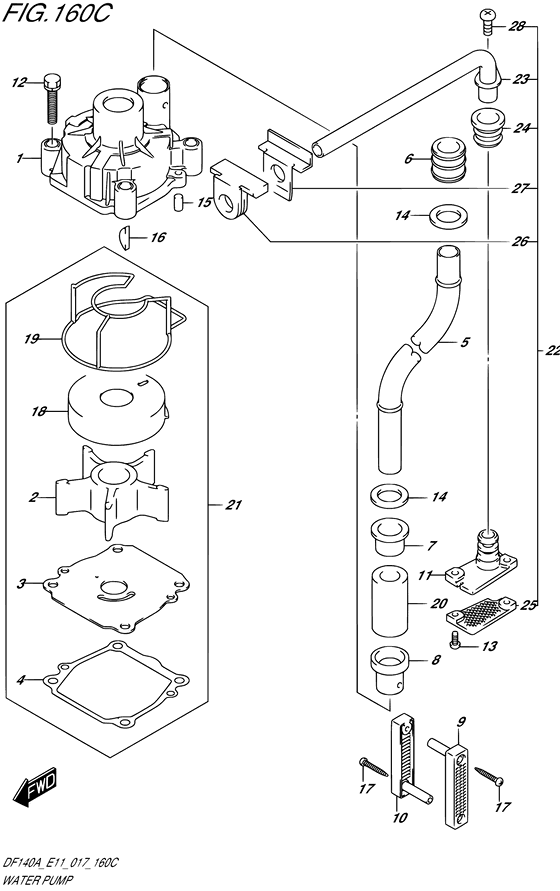

Water pump ((DF115AT E40)) Diagram Suzuki DF100A TL/X
- Year
- 2017
- Model
- DF100A
- Year
- 2017
- Engine
- 10003F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 100
- Sales region
- General Export (P11)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17410-92J00-000 CASE,WATER PUMP |
17410-92J00-000 |
from US $48.64 |
||
|
2
|
2
17461-90J01-000 IMPELLER,WATER PUMP |
17461-90J01-000 |
from US $50.86 |
||
|
3
|
3
17471-92J10-000
PANEL,PUMP CASE UNDER
|
17471-92J10-000 |
— | ||
|
4
|
4
17472-87E10-000 GASKET,PUMP CASE PANELGasket, pump case panel |
17472-87E10-000 |
from US $4.19 |
||
|
5
|
5
17561-90J03-000 TUBE,WATER(L)W/TRANSOM(L) |
17561-90J03-000 |
US $24.66 |
||
|
5
|
5
17561-90J13-000 TUBE,WATER(X)W/TRANSOM(X) |
17561-90J13-000 |
US $29.07 |
||
|
6
|
6
17562-90J00-000
BUSH,WATER TUBE UPR
|
17562-90J00-000 |
— | ||
| replacement | |||||
|
6
|
6
17562-90J01-000 Bush,water Tube Upr |
17562-90J01-000 |
US $3.68 |
||
|
7
|
7
17563-87D00-000
BUSH,WATER TUBE,LOWER
|
17563-87D00-000 |
— | ||
| replacement | |||||
|
7
|
7
17563-87D01-000 Bush,water Tube,lower |
17563-87D01-000 |
US $7.36 |
||
|
8
|
8
17564-87D00-000 BUSH,WATER PUMP CASEBush, water pump case |
17564-87D00-000 |
from US $10.40 |
||
|
9
|
9
17631-90J00-000 FILTER,WATER PORT SIDEFilter, water port side |
17631-90J00-000 |
from US $3.65 |
||
|
10
|
10
17632-90J00-000 FILTER,WATER STBD SIDEFilter, water stbd side |
17632-90J00-000 |
from US $3.65 |
||
|
11
|
11
17635-90J00-000 PLUG,SUB WATER TUBE |
17635-90J00-000 |
US $4.56 |
||
|
12
|
12
09116-08131-000 BOLT(8X45) |
09116-08131-000 |
from US $1.89 |
||
|
13
|
13
09125-05046-000 SCREW(5X12)Screw (5x12) |
09125-05046-000 |
from US $0.96 |
||
|
14
|
14
09161-16008-000 WASHER(15.8X26X1) |
09161-16008-000 |
from US $0.93 |
||
|
15
|
15
09202-06031-000 PIN(6X12)Pin, knock |
09202-06031-000 |
from US $1.92 |
||
|
16
|
16
09420-05009-000 KEY |
09420-05009-000 |
from US $8.35 |
||
|
17
|
17
09132-04034-000 SCREW(4X18) |
09132-04034-000 |
from US $1.12 |
||
|
18
|
18
17413-92J11-000
SLEEVE,WATER PUMP CASE
|
17413-92J11-000 |
— | ||
|
19
|
19
17416-92J10-000
SEALING,WATER PUMP CASE
|
17416-92J10-000 |
— | ||
| replacement | |||||
|
19
|
19
17416-92J11-000 Sealing,water Pump Case |
17416-92J11-000 |
US $13.68 |
||
|
20
|
20
17612-90J00-000
SPACER,WATER TUBE
W/TRANSOM(X) |
17612-90J00-000 |
— | ||
| replacement | |||||
|
20
|
20
17612-90J01-000 Spacer,water TubeW/TRANSOM(X) |
17612-90J01-000 |
US $5.12 |
||
|
21
|
21
17400-92J21-000
KIT,WATER PUMP REPAIR
OPT |
17400-92J21-000 |
— | ||
|
22
|
22
17500-90J10-000
KIT,WATER SUB TUBE
OPT |
17500-90J10-000 |
— | ||
| replacement | |||||
|
22
|
22
17500-90J11-000 Kit,water Sub TubeOPT |
17500-90J11-000 |
US $56.24 |
||
|
23
|
23
17520-90J00-000 TUBE,WATER SUBOPT |
17520-90J00-000 |
US $35.88 |
||
|
24
|
24
17563-87D00-000
BUSH,WATER TUBE,LOWER
OPT |
17563-87D00-000 |
— | ||
| replacement | |||||
|
24
|
24
17563-87D01-000 Bush,water Tube,lowerOPT |
17563-87D01-000 |
US $7.36 |
||
|
25
|
25
17635-87E00-000 FILTER,WATER SUBOPT |
17635-87E00-000 |
US $2.90 |
||
|
26
|
26
55332-87D01-000 RUBBER,EXHAUST SEALOPT |
55332-87D01-000 |
US $6.40 |
||
|
27
|
27
55333-87D02-000 PLATE,EXHAUST SEALPlate, exhaust seal OPT |
55333-87D02-000 |
US $6.66 |
||
|
28
|
28
09125-06063-000 SCREW(6X10)OPT |
09125-06063-000 |
from US $1.28 |
||
