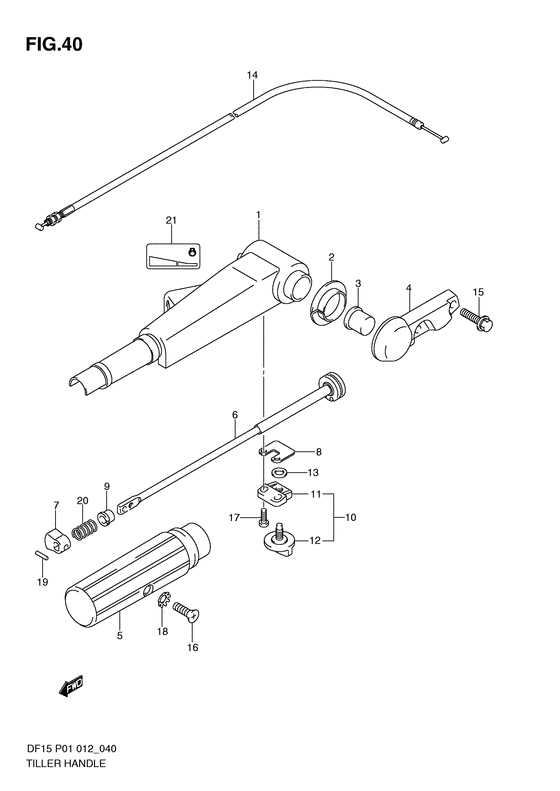

Tiller handle (Df15 p01) Diagram Suzuki DF15 S/L; RS/L
- Year
- 2011
- Model
- DF15
- Year
- 2011
- Engine
- 01503F-110001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-94J21-0EP HANDLE,TILLER(BLACK)Handle, tiller (black); |
63111-94J21-0EP |
US $81.33 |
||
|
2
|
2
63115-94J00-000 BUSH,TILLER HANDLEBush, tiller handle Bush, tiller handle; |
63115-94J00-000 |
US $2.88 |
||
|
3
|
3
63116-94J00-000 RUBBER,TILLER HANDLE FRICTIONRubber, friction Rubber, friction; |
63116-94J00-000 |
US $2.24 |
||
|
4
|
4
63121-94J20-0EP COVER,TILLER HANDLECover, tiller handle (black); |
63121-94J20-0EP |
US $47.20 |
||
|
5
|
5
63210-93E30-000 GRIP,HANDLEGrip, handle Grip, handle; |
63210-93E30-000 |
US $21.56 |
||
|
6
|
6
63220-94J00-000 ROD,HANDLE |
63220-94J00-000 |
US $22.82 |
||
|
7
|
7
63223-89J00-000 STOPPER,HANDLE ROD |
63223-89J00-000 |
US $3.57 |
||
|
8
|
8
63225-94J00-000 PLATE,HANDLE ROD ADJUSTER |
63225-94J00-000 |
US $1.93 |
||
|
9
|
9
63225-93200-000 BUSH,HANDLE RODBush, handle rod Bush, handle rod; |
63225-93200-000 |
US $1.95 |
||
|
10
|
10
63240-94J00-000
Adjuster set, handle rod
|
63240-94J00-000 |
— | ||
| replacements | |||||
|
10
|
10
63240-94J10-000
ADJUSTER SET,HANDLE ROD
|
63240-94J10-000 |
— | ||
|
10
|
10
63240-94J20-000 Adjuster Set,handle Rod |
63240-94J20-000 |
US $7.58 |
||
|
11
|
11
63241-98601-000
Support, rod
Support, rod; |
63241-98601-000 |
— | ||
| replacement | |||||
|
11
|
11
63241-986B0-000 SUPPORT,HANDLE RODSupport, rod; |
63241-986B0-000 |
US $3.36 |
||
|
12
|
12
63244-94J00-000 KNOB,THROTTLE ADJKnob, adjuster Knob, adjuster; |
63244-94J00-000 |
US $4.80 |
||
|
13
|
13
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
14
|
14
63610-94J00-000 Cable assy,throttle |
63610-94J00-000 |
US $19.01 |
||
|
15
|
15
09116-08122-000 BOLT(8X30)Bolt (8x30); |
09116-08122-000 |
from US $2.08 |
||
|
16
|
16
09126-06015-000 SCREW(6X23)Screw (6x23); |
09126-06015-000 |
US $4.13 |
||
|
17
|
17
09136-05041-000 SCREW(5X20)Screw, rod adjuster Screw (5x20); |
09136-05041-000 |
from US $1.78 |
||
|
18
|
18
09163-06001-000 WASHER,LOCK |
09163-06001-000 |
from US $2.35 |
||
|
19
|
19
09205-03038-000 PIN,SPRING(3X14)Pin, rod Spring; |
09205-03038-000 |
from US $0.89 |
||
|
20
|
20
09440-12027-000 SPRING |
09440-12027-000 |
from US $1.62 |
||
|
21
|
21
69714-94J00-000 MARK,ENGINE START |
69714-94J00-000 |
US $1.49 |
||
