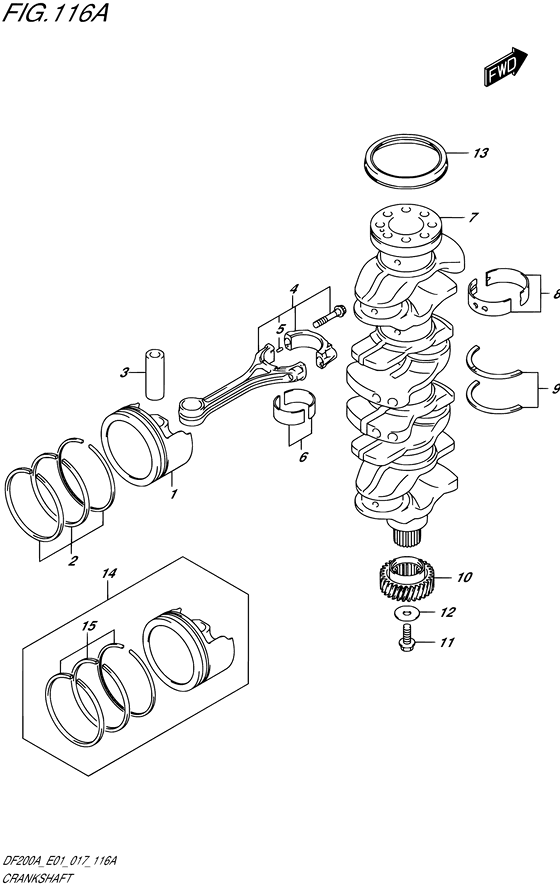

Crankshaft Diagram Suzuki DF200A (Z/T)L/X
- Year
- 2017
- Model
- DF200A
- Year
- 2017
- Engine
- 20003F-710001~ (20003Z-710001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Pearl Nebular Black; Cool White (YAY; Y5S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12111-96L00-0B0 PISTON |
12111-96L00-0B0 |
US $134.40 |
||
|
2
|
2
12140-96J00-000 RING SET,PISTON |
12140-96J00-000 |
from US $59.65 |
||
|
3
|
3
12151-96J00-000 PIN,PISTON |
12151-96J00-000 |
from US $12.80 |
||
|
4
|
4
12160-96L00-000 CONNROD ASSY |
12160-96L00-000 |
from US $147.20 |
||
|
5
|
5
04221-04089-000 PINPin, bal sprocket driven |
04221-04089-000 |
from US $0.76 |
||
|
6
|
6
12100-96811-0A0 BEARING SET,CONNROD(GREEN) |
12100-96811-0A0 |
US $19.20 |
||
|
6
|
6
12100-96811-025 BEARING SET,CONNROD US(0.25)OPT |
12100-96811-025 |
from US $16.22 |
||
|
7
|
7
12221-96J10-000 CRANKSHAFT |
12221-96J10-000 |
US $1,920 |
||
|
8
|
8
12340-96J01-0B0 BEARING SET,CRANKSHAFT(BLACK) |
12340-96J01-0B0 |
from US $33.60 |
||
|
8
|
8
12340-96J01-0C0 BEARING SET,CRANKSHAFT(NON) |
12340-96J01-0C0 |
US $33.60 |
||
|
8
|
8
12340-96J01-0D0 BEARING SET,CRANKSHAFT(YELLOW) |
12340-96J01-0D0 |
from US $30.69 |
||
|
8
|
8
12340-96J01-0E0 BEARING SET,CRANKSHAFT(BLUE) |
12340-96J01-0E0 |
US $33.60 |
||
|
8
|
8
12340-96J01-0F0 BEARING SET,CRANKSHAFT(PINK) |
12340-96J01-0F0 |
from US $25.76 |
||
|
8
|
8
12300-96811-0BA BEARING SET,CRANKSHAFT(US)OPT US:0.25 |
12300-96811-0BA |
from US $25.31 |
||
|
8
|
8
12300-96811-0CA BEARING SET,CRANKSHAFT(US 0.25)OPT US:0.25 |
12300-96811-0CA |
from US $25.31 |
||
|
8
|
8
12300-96811-0EA BEARING SET,CRANKSHAFT(US 0.25)OPT US:0.25 |
12300-96811-0EA |
from US $25.31 |
||
|
8
|
8
12300-96811-0FA BEARING SET,CRANKSHAFT(US)OPT US:0.25 |
12300-96811-0FA |
US $25.76 |
||
|
8
|
8
12300-96811-0DA BEARING SET,CRANKSHAFT(US 0.25)OPT US:0.25 |
12300-96811-0DA |
US $31.92 |
||
|
9
|
9
12300-85830-000 BEARING SET,CRANK THRUST |
12300-85830-000 |
from US $14.22 |
||
|
9
|
9
12300-85830-012 BEARING SET,CRANK THRUST OSBearing set, crank thrust (os:0.12) OPT |
12300-85830-012 |
from US $20.81 |
||
|
10
|
10
12242-96J00-000 GEAR,DRIVE |
12242-96J00-000 |
from US $99.20 |
||
|
11
|
11
09103-10229-000 BOLT(10X32)Bolt, crankshaft (10x32) |
09103-10229-000 |
from US $2.03 |
||
|
12
|
12
09160-10120-000 WASHER(10X42X3) |
09160-10120-000 |
from US $6.44 |
||
|
13
|
13
09283-91001-000 SEAL,OIL(91X109X10)Seal, oil (91x109x10) |
09283-91001-000 |
from US $24.09 |
||
|
14
|
14
12100-96L00-050 PISTON SET,OS(0.5)OPT |
12100-96L00-050 |
US $131.01 |
||
|
15
|
15
12140-96J00-050 RING SET,PISTON(OS:0.50)OPT |
12140-96J00-050 |
from US $50.70 |
