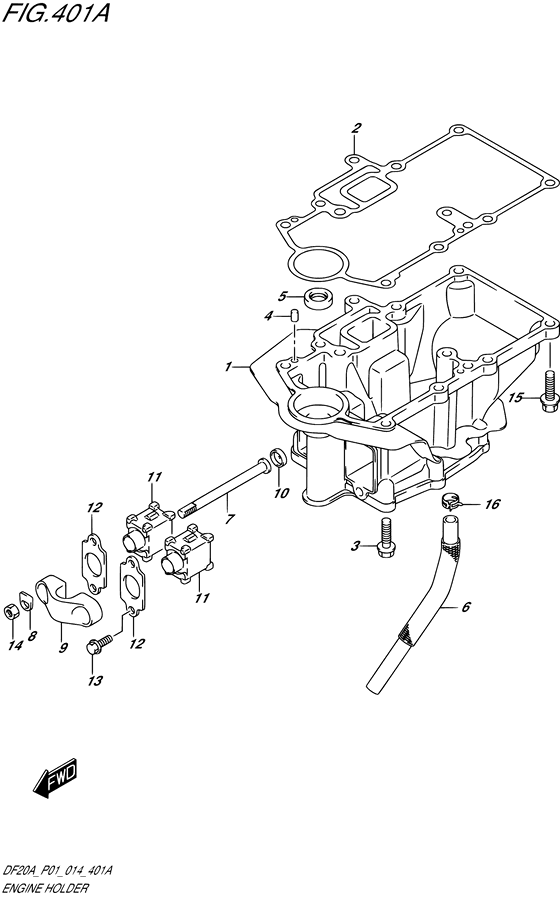

Engine holder Diagram Suzuki DF20A S/L; RS/L; T(H)S/L
- Year
- 2014
- Model
- DF20A
- Year
- 2014
- Engine
- 02002F-410001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51110-89L01-000
HOLDER,ENGINE
|
51110-89L01-000 |
— | ||
| replacement | |||||
|
1
|
1
51110-89L03-000 Holder Comp,engine |
51110-89L03-000 |
US $96.78 |
||
|
2
|
2
51211-89L00-000 GASKET,ENGINE HOLDER |
51211-89L00-000 |
from US $24 |
||
|
3
|
3
09116-08151-000 BOLT(8X30) |
09116-08151-000 |
US $4.96 |
||
|
4
|
4
09202-06023-000 PIN(6X10) |
09202-06023-000 |
US $21.70 |
||
|
5
|
5
09282-12L04-000 SEAL,OIL(12X25X7) |
09282-12L04-000 |
from US $5.17 |
||
|
6
|
6
16515-89L00-000 HOSE,OIL |
16515-89L00-000 |
US $5.92 |
||
|
7
|
7
54112-99J01-000 BOLT,UPR MOUNT |
54112-99J01-000 |
US $14.68 |
||
|
8
|
8
54113-99JL0-000 WASHER,UPR MOUNT BOLTUP TO VIN.410540 FOR DF9.9B UP TO VIN.411320 FOR DF15A UP TO VIN.412542 FOR DF20A |
54113-99JL0-000 |
from US $4.82 |
||
|
8
|
8
54113-99JM0-000 WASHER,UPR MOUNT BOLTFROM VIN.410541 FOR DF9.9B FROM VIN.411321 FOR DF15A FROM VIN.412543 FOR DF20A |
54113-99JM0-000 |
from US $2.59 |
||
|
9
|
9
54127-89L00-000 MOUNT,UPR SIDE |
54127-89L00-000 |
US $3.02 |
||
|
10
|
10
54125-99J00-000 STOPPER,UPR REVERSE THRUST |
54125-99J00-000 |
US $2.02 |
||
|
11
|
11
54130-89L00-000 MOUNT,UPR |
54130-89L00-000 |
US $24.47 |
||
|
12
|
12
54137-89L00-000 COVER,UPPER MOUNT |
54137-89L00-000 |
US $8.87 |
||
|
13
|
13
09116-08137-000 BOLT(8X22)Bolt (8x22) |
09116-08137-000 |
from US $3.92 |
||
|
14
|
14
09140-10031-000 NUT |
09140-10031-000 |
from US $1.49 |
||
|
15
|
15
01560-08307-000 Bolt |
01560-08307-000 |
from US $5.88 |
||
|
16
|
16
09401-12413-000 CLIP |
09401-12413-000 |
US $14.40 |
||
