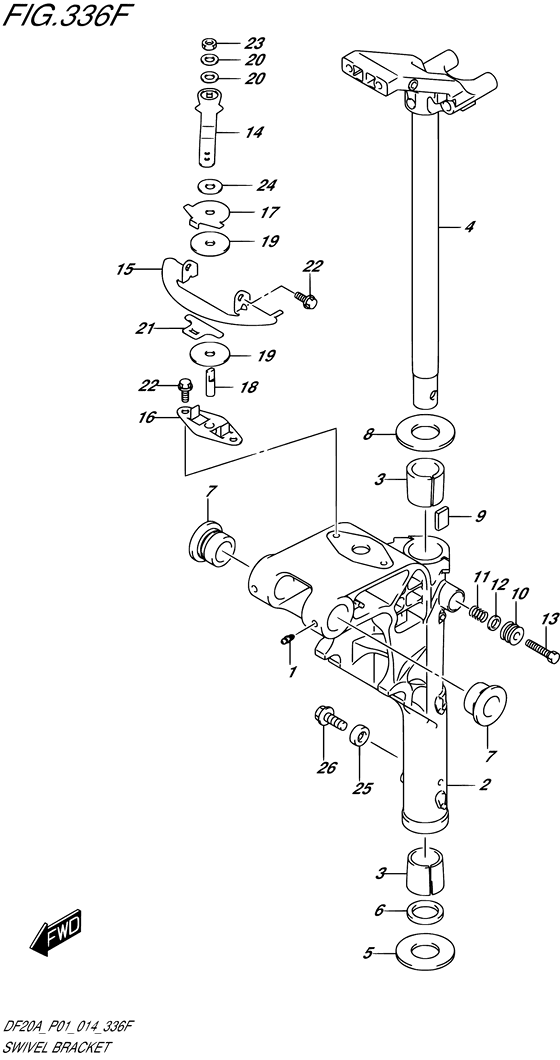

Swivel bracket ((DF15ATH P01)) Diagram Suzuki DF20A S/L; RS/L; T(H)S/L
- Year
- 2014
- Model
- DF20A
- Year
- 2014
- Engine
- 02002F-410001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22511-99011-000 NIPPLE,GREASEW/TRANSOM(S) |
22511-99011-000 |
from US $2.29 |
||
|
2
|
2
43111-89LA0-0EP BRACKET,SWIVELW/TRANSOM(L) |
43111-89LA0-0EP |
US $408.48 |
||
|
2
|
2
43111-89LB0-0EP BRACKET,SWIVELW/TRANSOM(S) |
43111-89LB0-0EP |
US $404.80 |
||
|
3
|
3
43711-94JA0-000 BUSH,STEERING |
43711-94JA0-000 |
US $13.98 |
||
|
4
|
4
43750-99J41-0EP
New Genuine Part
W/TRANSOM(S) UP TO VIN.411320 ->43750-99J42-0EP USED WITH 09160-27012, 54113-99JM0(2PCS) |
43750-99J41-0EP |
— | ||
| replacements | |||||
|
4
|
4
09160-27012-000 WASHER(27.5X47X1)W/TRANSOM(S) UP TO VIN.411320 ->43750-99J42-0EP USED WITH 09160-27012, 54113-99JM0(2PCS) |
09160-27012-000 |
US $3.50 |
||
|
4
|
4
43750-99J60-0EP BRACKET,STEERING(S)(BLACK)W/TRANSOM(S) UP TO VIN.411320 ->43750-99J42-0EP USED WITH 09160-27012, 54113-99JM0(2PCS) |
43750-99J60-0EP |
US $378.42 |
||
|
4
|
4
54113-99JM0-000 WASHER,UPR MOUNT BOLTW/TRANSOM(S) UP TO VIN.411320 ->43750-99J42-0EP USED WITH 09160-27012, 54113-99JM0(2PCS) |
54113-99JM0-000 |
from US $2.59 |
||
|
4
|
4
43750-99J42-0EP
BRACKET,STEERING (S)(BLACK)
W/TRANSOM(S) FROM VIN.411321 |
43750-99J42-0EP |
— | ||
| replacement | |||||
|
4
|
4
43750-99J60-0EP BRACKET,STEERING(S)(BLACK)W/TRANSOM(S) FROM VIN.411321 |
43750-99J60-0EP |
US $378.42 |
||
|
4
|
4
43750-99J51-0EP
New Genuine Part
W/TRANSOM(L) UP TO VIN.411320 ->43750-99J52-0EP USED WITH 09160-27012, 54113-99JM0(2PCS) |
43750-99J51-0EP |
— | ||
| replacements | |||||
|
4
|
4
09160-27012-000 WASHER(27.5X47X1)W/TRANSOM(L) UP TO VIN.411320 ->43750-99J52-0EP USED WITH 09160-27012, 54113-99JM0(2PCS) |
09160-27012-000 |
US $3.50 |
||
|
4
|
4
43750-99J70-0EP BRACKET,STEERING(L)(BLACK)W/TRANSOM(L) UP TO VIN.411320 ->43750-99J52-0EP USED WITH 09160-27012, 54113-99JM0(2PCS) |
43750-99J70-0EP |
US $440.75 |
||
|
4
|
4
54113-99JM0-000 WASHER,UPR MOUNT BOLTW/TRANSOM(L) UP TO VIN.411320 ->43750-99J52-0EP USED WITH 09160-27012, 54113-99JM0(2PCS) |
54113-99JM0-000 |
from US $2.59 |
||
|
4
|
4
43750-99J52-0EP
BRACKET,STEERING (L)(BLACK)
W/TRANSOM(L) FROM VIN.411321 |
43750-99J52-0EP |
— | ||
| replacement | |||||
|
4
|
4
43750-99J70-0EP BRACKET,STEERING(L)(BLACK)W/TRANSOM(L) FROM VIN.411321 |
43750-99J70-0EP |
US $440.75 |
||
|
5
|
5
09160-27012-000 WASHER(27.5X47X1)FROM VIN.411321 |
09160-27012-000 |
US $3.50 |
||
|
5
|
5
09160-27013-000 WASHER(27.5X47X2)UP TO VIN.411320 |
09160-27013-000 |
from US $5.87 |
||
|
6
|
6
09282-27002-000 SEAL,OIL(26X39X5) |
09282-27002-000 |
US $6.69 |
||
|
7
|
7
43211-87JL0-000 BUSH,SWIVEL BRACKET |
43211-87JL0-000 |
US $10.40 |
||
|
8
|
8
09160-27012-000 WASHER(27.5X47X1) |
09160-27012-000 |
US $3.50 |
||
|
9
|
9
43411-939L0-000 PLATE,STEERING ADJUSTER |
43411-939L0-000 |
US $1.60 |
||
|
10
|
10
43412-93900-000 COVER,STEERING ADJUSTERCover, steering adjust |
43412-93900-000 |
US $2.74 |
||
|
11
|
11
29440-93J00-000 SPRING,STEERING ADJUSTER |
29440-93J00-000 |
US $1.82 |
||
|
12
|
12
09160-08082-000 WASHER(8.5X16X1.2) |
09160-08082-000 |
from US $1.08 |
||
|
13
|
13
09100-08232-000 BOLT(8X30) |
09100-08232-000 |
US $2.43 |
||
|
14
|
14
43411-89LA0-000 LEVER,STEERING ADJUSTER |
43411-89LA0-000 |
US $2.69 |
||
|
15
|
15
43415-89L00-000
PLATE,STRG ADJUSTER(H)
|
43415-89L00-000 |
— | ||
| replacement | |||||
|
15
|
15
43415-89L01-000 PLATE,STRG ADJUSTER(H) |
43415-89L01-000 |
from US $11.80 |
||
|
16
|
16
43420-89L00-000 PLATE,STRG ADJUSTER FRICTION |
43420-89L00-000 |
US $9.73 |
||
|
17
|
17
43425-89L00-000 PLATE,STRG ADJUSTER UPR |
43425-89L00-000 |
US $2.13 |
||
|
18
|
18
43512-89L00-000 SHAFT,STRG ADJUSTER THREAD(H) |
43512-89L00-000 |
US $9.89 |
||
|
19
|
19
43515-88L00-000 WASHER,STRG ADJ FRICTION PLATE |
43515-88L00-000 |
US $10.80 |
||
|
20
|
20
43516-89J00-000 WASHER,STEERING ADJUSTER |
43516-89J00-000 |
US $9.12 |
||
|
21
|
21
43517-89L00-000 SPACER,STEERING ADJUSTER |
43517-89L00-000 |
US $5.33 |
||
|
22
|
22
09116-06225-000 BOLT(6X15) |
09116-06225-000 |
US $1.98 |
||
|
23
|
23
09159-08L02-000 NUT |
09159-08L02-000 |
US $24.70 |
||
|
24
|
24
09161-08019-000 WASHER(8.2X18X1.2) |
09161-08019-000 |
US $11.40 |
||
|
25
|
25
55321-87J00-000
Anode,protection
W/TRANSOM(L) |
55321-87J00-000 |
— | ||
| replacement | |||||
|
25
|
25
55321-87J01-000 ANODE,PROTECTIONW/TRANSOM(L) |
55321-87J01-000 |
from US $7.45 |
||
|
25
|
25
55321-87J10-000 ANODE,MAGNESIUMOPT W/TRANSOM(L) |
55321-87J10-000 |
US $18.88 |
||
| replacement | |||||
|
25
|
25
55321-87J11-000 ANODE(MAGNESIUM)OPT W/TRANSOM(L) |
55321-87J11-000 |
US $13.28 |
||
|
26
|
26
09103-06281-000 BOLT(6X14)Bolt, protection anode W/TRANSOM(L) |
09103-06281-000 |
from US $1.28 |
||
