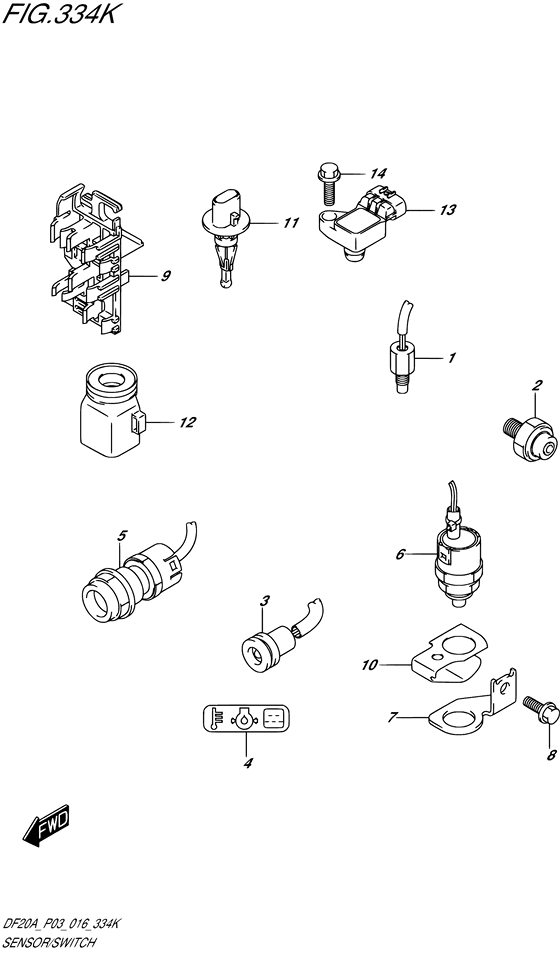

Sensor/switch ((DF20ATH P03)) Diagram Suzuki DF20A S/L; RS/L; T(H)S/L
- Year
- 2016
- Model
- DF20A
- Year
- 2016
- Engine
- 02002F-610001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- U.S.A. (P03)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13640-32G20-000 SENSOR,ENGINE TEMP |
13640-32G20-000 |
US $43.79 |
||
|
2
|
2
37820-80002-000 SWITCH ASSY,OIL PRESSURE |
37820-80002-000 |
from US $18.93 |
||
|
3
|
3
36360-99J10-000 INDICATOR,OIL PRESSURE |
36360-99J10-000 |
US $23.56 |
||
|
4
|
4
36367-89L00-000
LABEL,WARNING
|
36367-89L00-000 |
— | ||
| replacement | |||||
|
4
|
4
36367-89L00-YAY LABEL,WARNING |
36367-89L00-YAY |
US $0.96 |
||
|
5
|
5
37161-89L01-000
SWITCH ASSY,STARTER MOTOR
|
37161-89L01-000 |
— | ||
| replacement | |||||
|
5
|
5
37161-89L02-000 SWITCH ASSY,STARTER MOTOR |
37161-89L02-000 |
US $46.37 |
||
|
6
|
6
37721-89L00-000 SWITCH ASSY,NEUTRAL |
37721-89L00-000 |
US $29.60 |
||
|
7
|
7
37726-89L00-000 BRACKET,NEUTRAL SW |
37726-89L00-000 |
US $2.47 |
||
|
8
|
8
01550-06167-000 BOLT |
01550-06167-000 |
from US $0.68 |
||
|
9
|
9
36616-89L03-000 HOLDER,CONNECTOR |
36616-89L03-000 |
US $5.56 |
||
|
10
|
10
37725-89L01-000 ACTUATOR,NEUTRAL SWITCH |
37725-89L01-000 |
US $2.90 |
||
|
11
|
11
13650-52G00-000 SENSOR,INLET AIR TEMPSensor, inlet air temp |
13650-52G00-000 |
from US $50.92 |
||
|
12
|
12
13655-89L01-000 GROMMET,INLET AIR TEMP SNSR |
13655-89L01-000 |
US $4.45 |
||
|
13
|
13
18590-58M00-000 SENSOR,PRESSURE |
18590-58M00-000 |
US $164.80 |
||
|
14
|
14
01550-06207-000 BOLT |
01550-06207-000 |
from US $0.80 |
||
