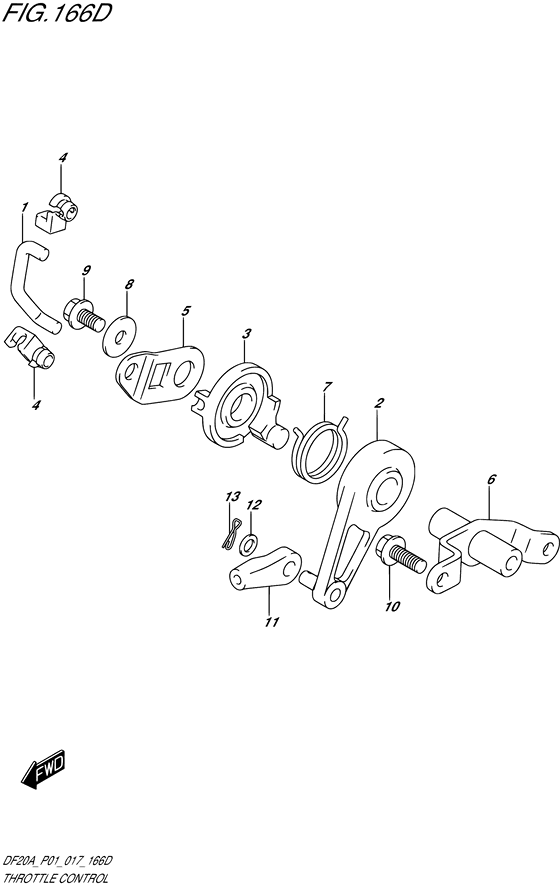

Throttle control ((DF15AT P01)) Diagram Suzuki DF20A S/L; RS/L; T(H)S/L
- Year
- 2017
- Model
- DF20A
- Year
- 2017
- Engine
- 02002F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- General Export No.1 (P01)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13513-89L10-000 ROD,THROTTLE |
13513-89L10-000 |
US $4.56 |
||
|
2
|
2
19120-99J11-000 LEVER,THROTTLE CONTROL |
19120-99J11-000 |
US $9.89 |
||
|
3
|
3
19122-99J00-000 LEVER,INTERLINK THROTTLE NO.2 |
19122-99J00-000 |
US $4.42 |
||
|
4
|
4
19131-89L00-000 CONNECTOR |
19131-89L00-000 |
US $2.56 |
||
|
5
|
5
19148-89L10-000 LEVER,INTERLINK THROTTLE NO.1 |
19148-89L10-000 |
US $9.60 |
||
|
6
|
6
19150-89L00-000 BRACKET,THROTTLE LEVER |
19150-89L00-000 |
US $27.97 |
||
|
7
|
7
19185-99J00-000 SPRING,THROTTLE LEVER |
19185-99J00-000 |
US $7.15 |
||
|
8
|
8
09160-06046-000 WASHER(6.5X20X1.5)Washer (6.5x20x1.5) |
09160-06046-000 |
from US $1.22 |
||
|
9
|
9
01550-0612C-000 Bolt |
01550-0612C-000 |
from US $2.72 |
||
|
10
|
10
01550-0616C-000 Bolt |
01550-0616C-000 |
US $0.77 |
||
|
11
|
11
67467-89J01-000 CONNECTOR |
67467-89J01-000 |
from US $6.71 |
||
|
12
|
12
09160-06055-000 WASHER(7X12X1)Washer (7x12x1.0) |
09160-06055-000 |
from US $1.22 |
||
|
13
|
13
09385-06012-000 CLIP |
09385-06012-000 |
from US $1.22 |
