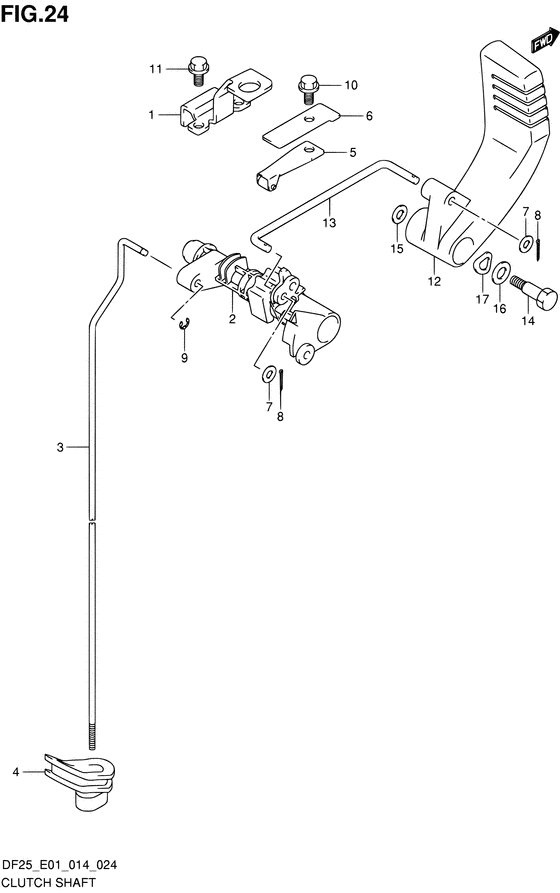

Clutch shaft ((DF25 E01)) Diagram Suzuki DF25 V-twin S/L; RS/L; QS/L; TS/L
- Year
- 2013
- Model
- DF25 (V-Twin)
- Year
- 2013
- Engine
- 02503F-410001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21126-95J01-000 HOLDER,CLUTCH SHAFT |
21126-95J01-000 |
US $15.04 |
||
|
2
|
2
21211-95J01-000 SHAFT,CLUTCH |
21211-95J01-000 |
US $21.28 |
||
|
3
|
3
23111-95J00-000 ROD,CLUTCH(S)W/TRANSOM(S) |
23111-95J00-000 |
US $14.32 |
||
|
3
|
3
23111-95J10-000 ROD,CLUTCH(L/LL)W/TRANSOM(L) |
23111-95J10-000 |
US $15.79 |
||
|
4
|
4
23131-95J00-000 BOOT,CLUTCH ROD |
23131-95J00-000 |
US $5.59 |
||
|
5
|
5
23213-89J01-000 SPRING,NOTCH PLATE NO.1 |
23213-89J01-000 |
US $5.23 |
||
|
6
|
6
23214-89J10-000 SPRING,NOTCH PLATE NO.2 |
23214-89J10-000 |
US $4.05 |
||
|
7
|
7
09160-05029-000 WASHER(5.5X12X0.8) |
09160-05029-000 |
from US $1.12 |
||
|
8
|
8
09204-01002-000 PINCotter pin |
09204-01002-000 |
from US $0.96 |
||
|
9
|
9
09383-04002-000 E RING |
09383-04002-000 |
from US $0.96 |
||
|
10
|
10
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
11
|
11
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
12
|
12
21111-95J00-000 LEVER,FR SHIFT |
21111-95J00-000 |
US $16.49 |
||
|
13
|
13
23115-95J00-000 LINK,SHIFT LEVER |
23115-95J00-000 |
US $11.89 |
||
|
14
|
14
09111-06069-000 BOLT(6X28.8) |
09111-06069-000 |
from US $14.01 |
||
|
15
|
15
09160-06082-000 WASHER(6.5X13X1.0) |
09160-06082-000 |
from US $0.96 |
||
|
16
|
16
09160-08082-000 WASHER(8.5X16X1.2) |
09160-08082-000 |
from US $1.08 |
||
|
17
|
17
09164-08017-000 WASHER |
09164-08017-000 |
from US $3.47 |
