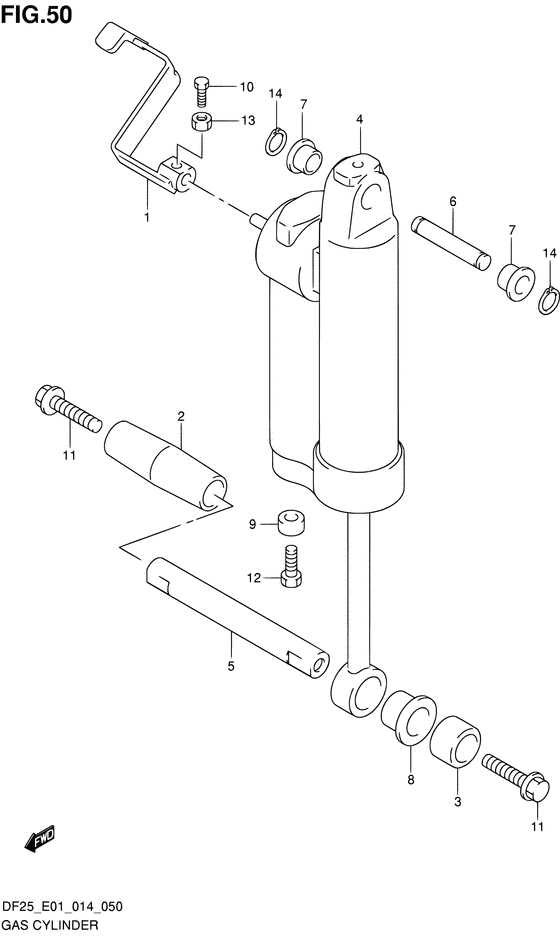

Gas cylinder ((DF25Q E01)) Diagram Suzuki DF25 V-twin S/L; RS/L; QS/L; TS/L
- Year
- 2013
- Model
- DF25 (V-Twin)
- Year
- 2013
- Engine
- 02503F-410001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45260-89J00-000
LEVER,RELEASE
|
45260-89J00-000 |
— | ||
| replacement | |||||
|
1
|
1
45260-89J01-000 Lever,release |
45260-89J01-000 |
US $35.14 |
||
|
2
|
2
47225-89J00-000 COLLAR,TILT CYL LOWER STBD |
47225-89J00-000 |
US $10.67 |
||
|
3
|
3
47226-89J00-000 COLLAR,TILT CYLINDER LOWER |
47226-89J00-000 |
US $5.23 |
||
|
4
|
4
47400-95J00-000
Cylinder assy,gas
|
47400-95J00-000 |
— | ||
| replacement | |||||
|
4
|
4
47400-95J02-000 CYLINDER ASSY,GAS |
47400-95J02-000 |
US $813.12 |
||
|
5
|
5
48121-89J10-000 SHAFT,TILT CYLINDER LWRShaft, tilt cyl lower |
48121-89J10-000 |
US $51.15 |
||
|
6
|
6
48321-89J11-000 SHAFT,TILT CYLINDER UPR |
48321-89J11-000 |
US $12.99 |
||
|
7
|
7
48325-89J00-000 BUSH,TILT CYL UPPERBush, tilt cyl upper |
48325-89J00-000 |
US $2.47 |
||
|
8
|
8
48326-89J00-000 BUSH,TILT CYL LOWERBush, tilt cyl lower |
48326-89J00-000 |
US $4.45 |
||
|
9
|
9
55321-87J00-000
Anode,protection
|
55321-87J00-000 |
— | ||
| replacement | |||||
|
9
|
9
55321-87J01-000 ANODE,PROTECTION |
55321-87J01-000 |
from US $7.45 |
||
|
10
|
10
09100-06113-000 BOLT(6X16) |
09100-06113-000 |
from US $3.04 |
||
|
11
|
11
09116-10174-000
Bolt,10x35
|
09116-10174-000 |
— | ||
| replacement | |||||
|
11
|
11
09116-10179-000 BOLT(10X35) |
09116-10179-000 |
from US $11.16 |
||
|
12
|
12
09103-06281-000 BOLT(6X14)Bolt, protection anode |
09103-06281-000 |
from US $1.28 |
||
|
13
|
13
09140-06020-000 NUT |
09140-06020-000 |
from US $1.28 |
||
|
14
|
14
09380-12002-000 RING,SNAPCirclip |
09380-12002-000 |
US $11.40 |
||
