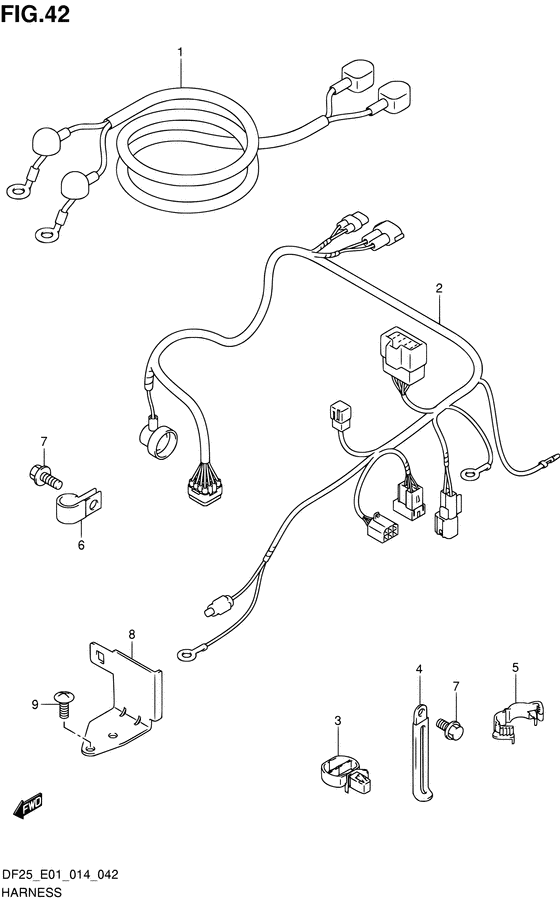

Harness ((DF25R E01)) Diagram Suzuki DF25 V-twin S/L; RS/L; QS/L; TS/L
- Year
- 2013
- Model
- DF25 (V-Twin)
- Year
- 2013
- Engine
- 02503F-410001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33810-95J00-000 CABLE ASSY,STARTER |
33810-95J00-000 |
US $100.46 |
||
|
2
|
2
36610-95J20-000 HARNESS ASSY,WIRING |
36610-95J20-000 |
US $198.72 |
||
|
3
|
3
09403-14315-000 CLAMPClamp, harness |
09403-14315-000 |
US $17.70 |
||
|
4
|
4
29404-93J10-000
CLAMP
|
29404-93J10-000 |
— | ||
| replacement | |||||
|
4
|
4
29404-93J11-000 Clamp |
29404-93J11-000 |
US $1.78 |
||
|
5
|
5
09408-00184-000 CLAMP |
09408-00184-000 |
from US $4.64 |
||
|
6
|
6
09403-13408-000
CLAMP
|
09403-13408-000 |
— | ||
| replacement | |||||
|
6
|
6
09403-13413-000 Clamp |
09403-13413-000 |
from US $8.31 |
||
|
7
|
7
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
8
|
8
36616-95J00-000
HOLDER,CONNECTOR
|
36616-95J00-000 |
— | ||
|
9
|
9
02142-06167-000 SCREWScrew |
02142-06167-000 |
from US $0.76 |
||
