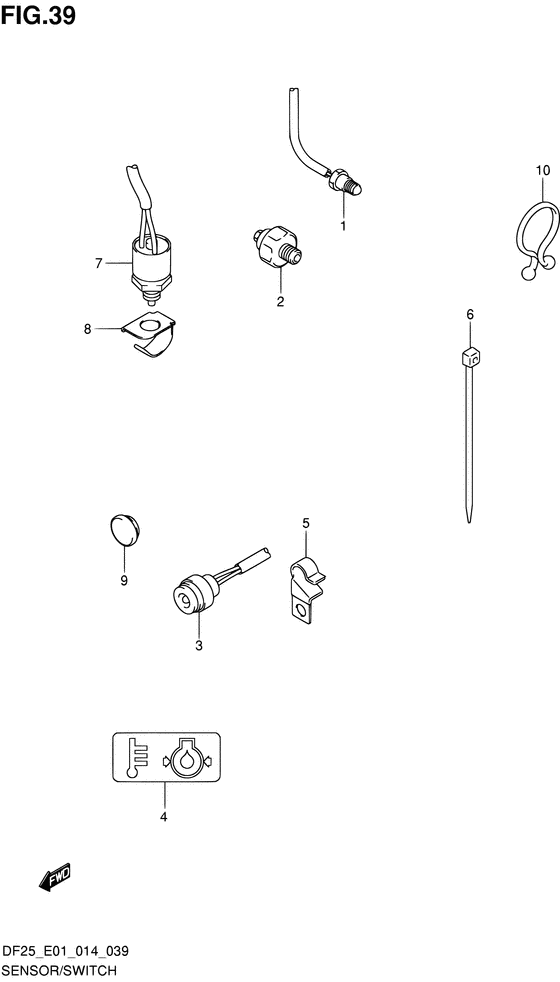

Sensor/switch ((DF25R E01)) Diagram Suzuki DF25 V-twin S/L; RS/L; QS/L; TS/L
- Year
- 2013
- Model
- DF25 (V-Twin)
- Year
- 2013
- Engine
- 02503F-410001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34830-87J20-000 SENSOR,TEMPSensor assy, temp |
34830-87J20-000 |
from US $46.40 |
||
|
2
|
2
37820-95J00-000 SWITCH ASSY,OIL PRESSURE |
37820-95J00-000 |
US $24.84 |
||
|
3
|
3
36360-89J00-000 INDICATOR ASSY,WARNINGIndicator assy, warning |
36360-89J00-000 |
US $46 |
||
|
4
|
4
36367-89J00-000 LABEL,WARNING |
36367-89J00-000 |
US $2.58 |
||
|
5
|
5
09403-12308-000
CLAMP
|
09403-12308-000 |
— | ||
| replacement | |||||
|
5
|
5
09403-12322-000 Clamp |
09403-12322-000 |
US $21.70 |
||
|
6
|
6
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) |
09407-10404-000 |
from US $3.96 |
||
|
7
|
7
37721-95J01-000
SWITCH ASSY,NEUTRAL
|
37721-95J01-000 |
— | ||
| replacement | |||||
|
7
|
7
37721-95J02-000 Switch Assy,neutral |
37721-95J02-000 |
from US $46.40 |
||
|
8
|
8
37725-95600-000 ACTUATOR,NEUTRAL SWITCHActuator, neutral switch |
37725-95600-000 |
US $6.88 |
||
|
9
|
9
37163-95J00-000 PLUG,STARTING SWITCH HOLE |
37163-95J00-000 |
US $3.24 |
||
|
10
|
10
09408-00024-000 CLIP(ID:23)Clip, ptt sw terminal |
09408-00024-000 |
from US $2.40 |
||
