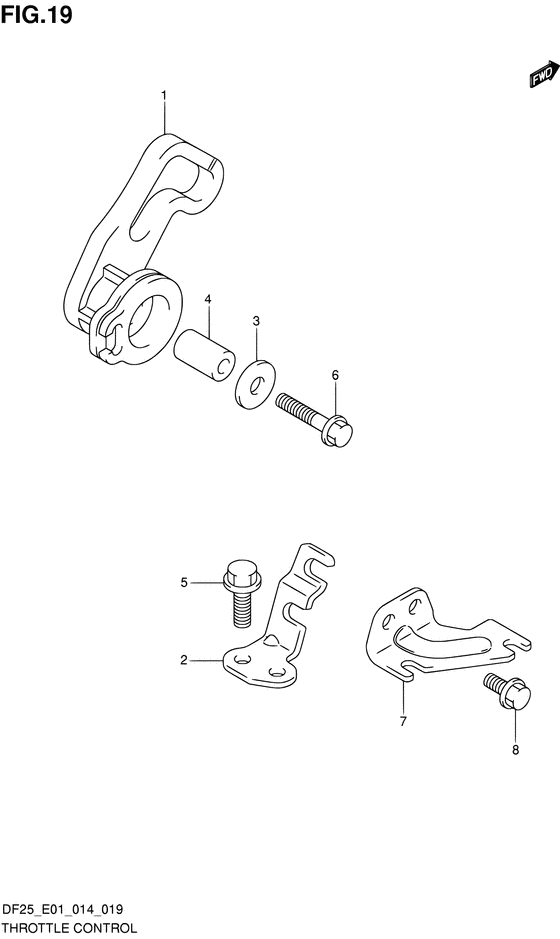

Throttle control ((DF25 E01)) Diagram Suzuki DF25 V-twin S/L; RS/L; QS/L; TS/L
- Year
- 2013
- Model
- DF25 (V-Twin)
- Year
- 2013
- Engine
- 02503F-410001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19141-95J00-000 CAM,THROTTLE |
19141-95J00-000 |
US $9.16 |
||
|
2
|
2
19184-95J00-000 BRACKET,THROTTLE CABLE |
19184-95J00-000 |
US $6.81 |
||
|
3
|
3
09160-06047-000 WASHER(6.5X20X2)Washer, remocon cable stopper |
09160-06047-000 |
from US $0.91 |
||
|
4
|
4
09180-06186-000 SPACER(6.2X12.6X21)Spacer, throttle lever no.2 |
09180-06186-000 |
from US $8.93 |
||
|
5
|
5
01550-06167-000 BOLT |
01550-06167-000 |
from US $0.68 |
||
|
6
|
6
01550-06357-000 BOLTBolt, throttle lever no.2 |
01550-06357-000 |
from US $0.91 |
||
|
7
|
7
18642-95J00-000 BRACKET,NSI CABLEW/MANUAL STARTER |
18642-95J00-000 |
US $7.07 |
||
|
8
|
8
01550-06167-000 BOLTW/MANUAL STARTER |
01550-06167-000 |
from US $0.68 |
