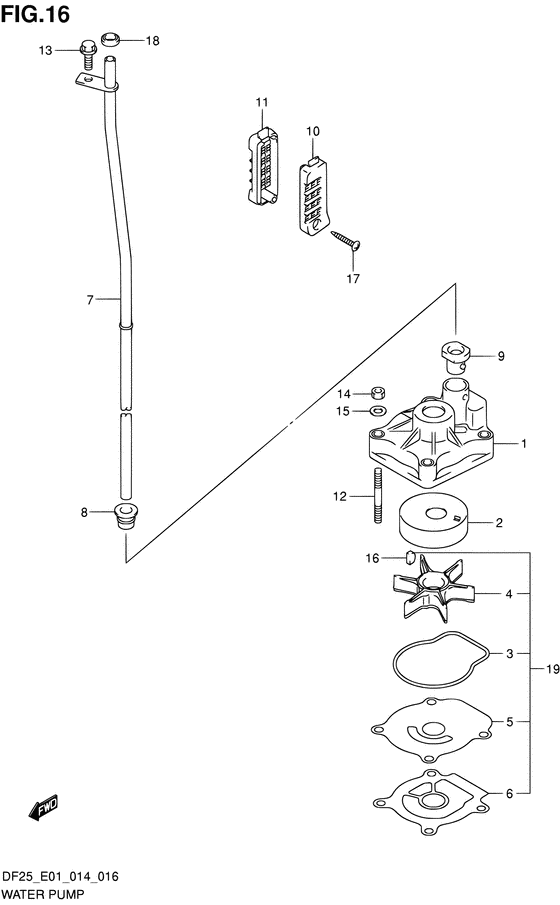

Water pump ((DF25R E01)) Diagram Suzuki DF25 V-twin S/L; RS/L; QS/L; TS/L
- Year
- 2013
- Model
- DF25 (V-Twin)
- Year
- 2013
- Engine
- 02503F-410001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17410-95J00-000 CASE,WATER PUMP |
17410-95J00-000 |
US $46.40 |
||
|
2
|
2
17413-95J00-000 SLEEVE,WATER PUMP CASE |
17413-95J00-000 |
US $21.60 |
||
|
3
|
3
17416-95J00-000 SEALING,WATER PUMP CASE |
17416-95J00-000 |
US $5.60 |
||
|
4
|
4
17461-96312-000 IMPELLER,WATER PUMP |
17461-96312-000 |
from US $35.35 |
||
|
5
|
5
17471-95J01-000 PANEL,PUMP CASE UNDER |
17471-95J01-000 |
US $11.20 |
||
|
6
|
6
17472-96303-000
GASKET,PUMP CASE UNDER
|
17472-96303-000 |
— | ||
| replacement | |||||
|
6
|
6
17472-96304-000 Gasket,pump Case Under |
17472-96304-000 |
from US $2.54 |
||
|
7
|
7
17560-95J01-000 TUBE,WATER(S)W/TRANSOM(S) |
17560-95J01-000 |
US $30.54 |
||
|
7
|
7
17560-95J11-000 TUBE,WATER(L)W/TRANSOM(L) |
17560-95J11-000 |
US $35.70 |
||
|
8
|
8
17565-96300-000
GROMMET,WATER TUBE MIDDLE
|
17565-96300-000 |
— | ||
| replacement | |||||
|
8
|
8
17565-91L00-000 GROMMET,WATER TUBE MIDDLE |
17565-91L00-000 |
US $2.08 |
||
|
9
|
9
17566-96302-000 GROMMET,WATER TUBE LWRGrommet, water tube lower |
17566-96302-000 |
US $3.03 |
||
| replacement | |||||
|
9
|
9
17566-96303-000 Grommet,water Tube Lwr |
17566-96303-000 |
US $2.08 |
||
|
10
|
10
17631-95J00-000 FILTER,WATER PORT SIDE |
17631-95J00-000 |
US $7.15 |
||
|
11
|
11
17632-95J00-000 FILTER,WATER STBD SIDE |
17632-95J00-000 |
US $7.15 |
||
|
12
|
12
09108-06146-000 BOLT,STUD |
09108-06146-000 |
US $2.13 |
||
|
13
|
13
09116-06236-000 BOLT(6X16) |
09116-06236-000 |
from US $1.15 |
||
|
14
|
14
29141-93J00-000 NUT |
29141-93J00-000 |
from US $1.60 |
||
|
15
|
15
09160-06082-000 WASHER(6.5X13X1.0) |
09160-06082-000 |
from US $0.96 |
||
|
16
|
16
09420-04006-000 KEYKey, impeller |
09420-04006-000 |
US $6.88 |
||
|
17
|
17
03142-04259-000 SCREW |
03142-04259-000 |
from US $0.80 |
||
|
18
|
18
09320-08062-000 CUSHION |
09320-08062-000 |
from US $4.32 |
||
|
19
|
19
17400-95J02-000
KIT,WATER PUMP REPAIR
OPT |
17400-95J02-000 |
— | ||
| replacement | |||||
|
19
|
19
17400-95J03-000 Kit,water Pump RepairOPT |
17400-95J03-000 |
from US $24.01 |
||
