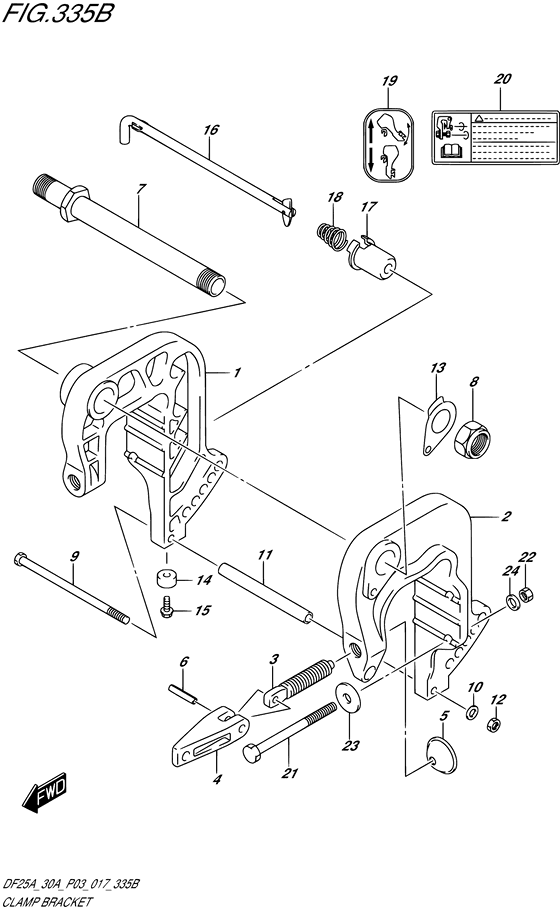

Clamp bracket ((DF25AR P03)) Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L; QHS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A. (P03)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-94L00-YAY BRACKET,CLAMP STBD |
41111-94L00-YAY |
US $80.59 |
||
|
2
|
2
41121-94L00-YAY BRACKET,CLAMP PORT |
41121-94L00-YAY |
US $80.59 |
||
|
3
|
3
41211-94L00-000 SCREW,CLAMP |
41211-94L00-000 |
US $7.65 |
||
|
4
|
4
41212-91J00-000 HANDLE,CLAMP |
41212-91J00-000 |
US $10.34 |
||
|
5
|
5
41213-94J01-000 PLATE,CLAMP |
41213-94J01-000 |
US $3.04 |
||
|
6
|
6
09205-06021-000 PIN,SPRING(6X25) |
09205-06021-000 |
from US $2.61 |
||
|
7
|
7
41130-91L01-000 SHAFT COMP,CLAMP BRACKET |
41130-91L01-000 |
US $135.06 |
||
|
8
|
8
09159-22006-000 NUT |
09159-22006-000 |
from US $22.40 |
||
|
9
|
9
09100-06165-000 BOLT(6X180) |
09100-06165-000 |
US $55.60 |
||
|
10
|
10
09160-06082-000 WASHER(6.5X13X1.0) |
09160-06082-000 |
from US $0.96 |
||
|
11
|
11
09180-06342-000 SPACER(6.1X9X138) |
09180-06342-000 |
US $108.20 |
||
|
12
|
12
29141-93J00-000 NUT |
29141-93J00-000 |
from US $1.60 |
||
|
13
|
13
41135-93J11-000 WASHER,CLAMP BRACKET SHAFT |
41135-93J11-000 |
US $4.64 |
||
|
14
|
14
55321-87J11-000 ANODE(MAGNESIUM)OPT |
55321-87J11-000 |
US $13.28 |
||
|
14
|
14
55321-87J01-000 ANODE,PROTECTION |
55321-87J01-000 |
from US $7.45 |
||
|
15
|
15
09103-06281-000 BOLT(6X14)Bolt, protection anode |
09103-06281-000 |
from US $1.28 |
||
|
16
|
16
45420-94L00-000 PIN,TILT LOCK |
45420-94L00-000 |
US $33.44 |
||
|
17
|
17
45425-94J01-000 STOPPER,TILT LOCK PIN |
45425-94J01-000 |
US $2.08 |
||
|
18
|
18
59442-94L00-000 SPRING |
59442-94L00-000 |
US $2.13 |
||
|
19
|
19
45269-89L00-000 MARK,REVERSE LOCK |
45269-89L00-000 |
US $1.25 |
||
|
20
|
20
69911-91J50-000 MARK,CLAMP BRACKET |
69911-91J50-000 |
US $2.21 |
||
|
21
|
21
09100-10309-000 BOLT(10X110) |
09100-10309-000 |
US $79.10 |
||
|
22
|
22
09159-10050-000 NUT |
09159-10050-000 |
US $5.63 |
||
|
23
|
23
09160-10139-000 WASHER(10.5X35X3) |
09160-10139-000 |
from US $5.34 |
||
|
24
|
24
09160-10140-000 WASHER(10.5X18X3)Washer, upper mount bolt (10.5x18x3) |
09160-10140-000 |
from US $2.87 |
