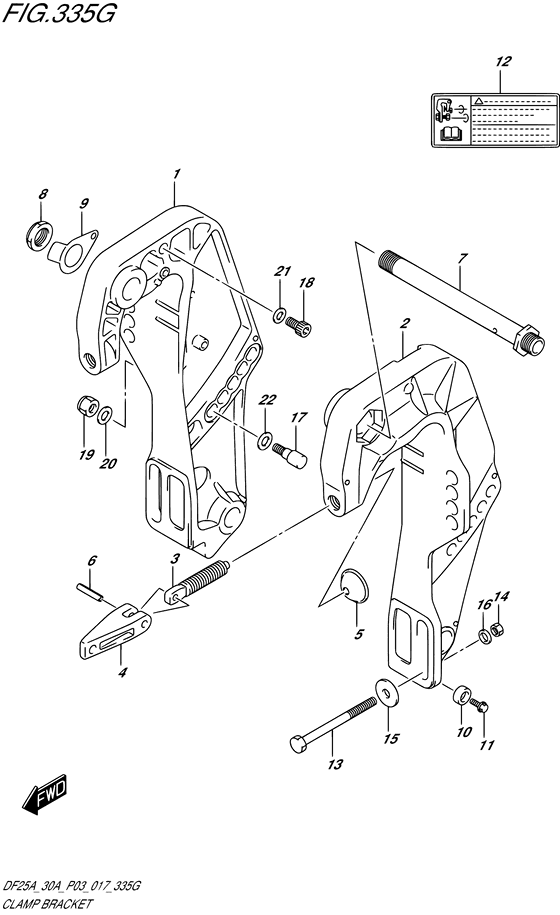

Clamp bracket ((DF30ATH P03)) Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L; QHS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A. (P03)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-94LA0-YAY BRACKET,CLAMP STBD |
41111-94LA0-YAY |
US $87.22 |
||
|
2
|
2
41121-94LA0-YAY
BRACKET,CLAMP PORT
|
41121-94LA0-YAY |
— | ||
| replacement | |||||
|
2
|
2
41121-94LA1-YAY BRACKET,CLAMP PORT |
41121-94LA1-YAY |
US $87.95 |
||
|
3
|
3
41211-94LA0-000 SCREW,CLAMP |
41211-94LA0-000 |
US $8.68 |
||
|
4
|
4
41212-91J00-000 HANDLE,CLAMP |
41212-91J00-000 |
US $10.34 |
||
|
5
|
5
41213-94J01-000 PLATE,CLAMP |
41213-94J01-000 |
US $3.04 |
||
|
6
|
6
09205-06021-000 PIN,SPRING(6X25) |
09205-06021-000 |
from US $2.61 |
||
|
7
|
7
41130-94LA0-000 SHAFT,CLAMP BRACKET |
41130-94LA0-000 |
US $149.41 |
||
|
8
|
8
09159-22006-000 NUT |
09159-22006-000 |
from US $22.40 |
||
|
9
|
9
41135-93J11-000 WASHER,CLAMP BRACKET SHAFT |
41135-93J11-000 |
US $4.64 |
||
|
10
|
10
55321-87J01-000 ANODE,PROTECTION |
55321-87J01-000 |
from US $7.45 |
||
|
10
|
10
55321-87J11-000 ANODE(MAGNESIUM)OPT |
55321-87J11-000 |
US $13.28 |
||
|
11
|
11
09103-06281-000 BOLT(6X14)Bolt, protection anode |
09103-06281-000 |
from US $1.28 |
||
|
12
|
12
69911-91J50-000 MARK,CLAMP BRACKET |
69911-91J50-000 |
US $2.21 |
||
|
13
|
13
09100-12093-000 BOLT(12X100) |
09100-12093-000 |
US $101.90 |
||
|
14
|
14
09159-12014-000 NUT |
09159-12014-000 |
from US $2.39 |
||
|
15
|
15
09160-12044-000 WASHER(12.5X35X3.2)Washer (12.5x35x3.2) |
09160-12044-000 |
from US $2.13 |
||
|
16
|
16
09160-12110-000 WASHER(12.5X22X3) |
09160-12110-000 |
from US $4.10 |
||
|
17
|
17
45421-94LA0-000 PIN,TILT LOCK |
45421-94LA0-000 |
US $7.73 |
||
|
18
|
18
09106-10065-000 BOLT(10X20) |
09106-10065-000 |
from US $9.49 |
||
|
19
|
19
09159-10050-000 NUT |
09159-10050-000 |
US $5.63 |
||
|
20
|
20
09160-10082-000 WASHER(10.5X19X2)Washer |
09160-10082-000 |
from US $0.96 |
||
|
21
|
21
09160-10082-000 WASHER(10.5X19X2)Washer |
09160-10082-000 |
from US $0.96 |
||
|
22
|
22
09160-12066-000 WASHER(12.5X22X2.5)Washer (12.5x22x2.5) |
09160-12066-000 |
from US $1.22 |
||
