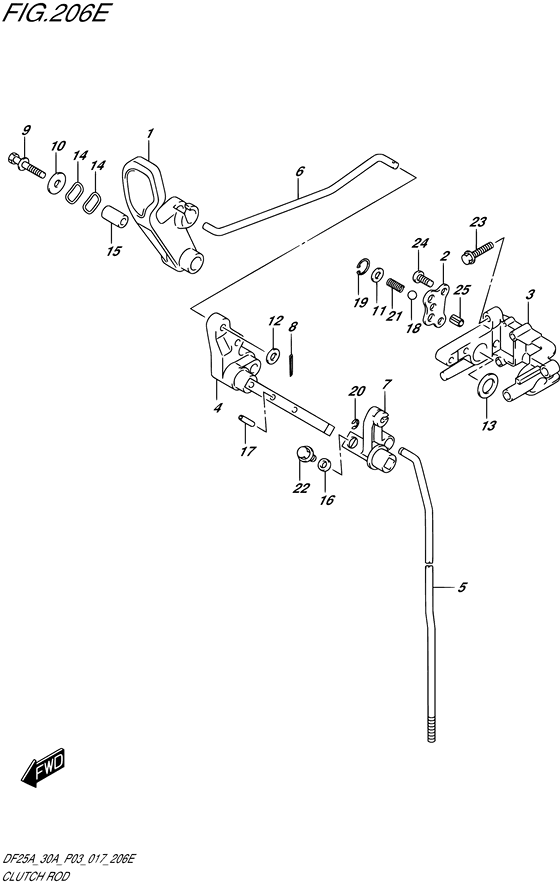

Clutch rod ((DF25AQ P03)) Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L; QHS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A. (P03)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21111-89L00-000
LEVER,CLUTCH
|
21111-89L00-000 |
— | ||
| replacement | |||||
|
1
|
1
21111-89L01-000 Lever,clutch |
21111-89L01-000 |
US $17.60 |
||
|
2
|
2
21122-94L00-000 PLATE,CLUTCH NOTCH |
21122-94L00-000 |
US $5.04 |
||
|
3
|
3
21151-94L00-000 HOLDER,CLUTCH SHAFT |
21151-94L00-000 |
US $38.27 |
||
|
4
|
4
21210-94L00-000 SHAFT,CLUTCH LEVER |
21210-94L00-000 |
US $25.09 |
||
|
5
|
5
23111-94L00-000 ROD,CLUTCH(S)W/TRANSOM(S) |
23111-94L00-000 |
US $10.64 |
||
|
5
|
5
23111-94L10-000 ROD,CLUTCH(L)W/TRANSOM(L) |
23111-94L10-000 |
US $18.77 |
||
|
6
|
6
23115-94L00-000 LINK,CLUTCH LEVER |
23115-94L00-000 |
US $5.26 |
||
|
7
|
7
23211-94L00-000 ARM,CLUTCH ROD |
23211-94L00-000 |
US $10.50 |
||
|
8
|
8
09204-01002-000 PINCotter pin |
09204-01002-000 |
from US $0.96 |
||
|
9
|
9
09116-06234-000 BOLT(6X35) |
09116-06234-000 |
US $2.29 |
||
|
10
|
10
09160-06046-000 WASHER(6.5X20X1.5)Washer (6.5x20x1.5) |
09160-06046-000 |
from US $1.22 |
||
|
11
|
11
09160-06082-000 WASHER(6.5X13X1.0) |
09160-06082-000 |
from US $0.96 |
||
|
12
|
12
09160-06094-000 WASHER(6.5X15X1.0)Washer (6.5x15x1.5) |
09160-06094-000 |
from US $0.91 |
||
|
13
|
13
09160-14071-000 WASHER(13.3X23X1) |
09160-14071-000 |
from US $4.79 |
||
|
14
|
14
09164-14008-000 WASHERWasher, wave |
09164-14008-000 |
from US $1.52 |
||
|
15
|
15
09180-06186-000 SPACER(6.2X12.6X21)Spacer, throttle lever no.2 |
09180-06186-000 |
from US $8.93 |
||
|
16
|
16
09180-06362-000 SPACER(6.5X10.5X4) |
09180-06362-000 |
from US $1.05 |
||
|
17
|
17
09205-04002-000 PIN,SPRING(4X20)Pin, clutch lever |
09205-04002-000 |
from US $1.84 |
||
|
18
|
18
09260-10006-000 BALL |
09260-10006-000 |
US $16.60 |
||
|
19
|
19
09381-14004-000 CIRCLIP |
09381-14004-000 |
from US $4.17 |
||
|
20
|
20
09383-04002-000 E RING |
09383-04002-000 |
from US $0.96 |
||
|
21
|
21
09440-07080-000 SPRING |
09440-07080-000 |
from US $1.15 |
||
|
22
|
22
01550-0612C-000 Bolt |
01550-0612C-000 |
from US $2.72 |
||
|
23
|
23
01550-0625C-000 BOLT |
01550-0625C-000 |
US $11.40 |
||
|
24
|
24
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
25
|
25
37724-99J00-000 ROD,SWITCH PUSH |
37724-99J00-000 |
US $2.47 |
||
