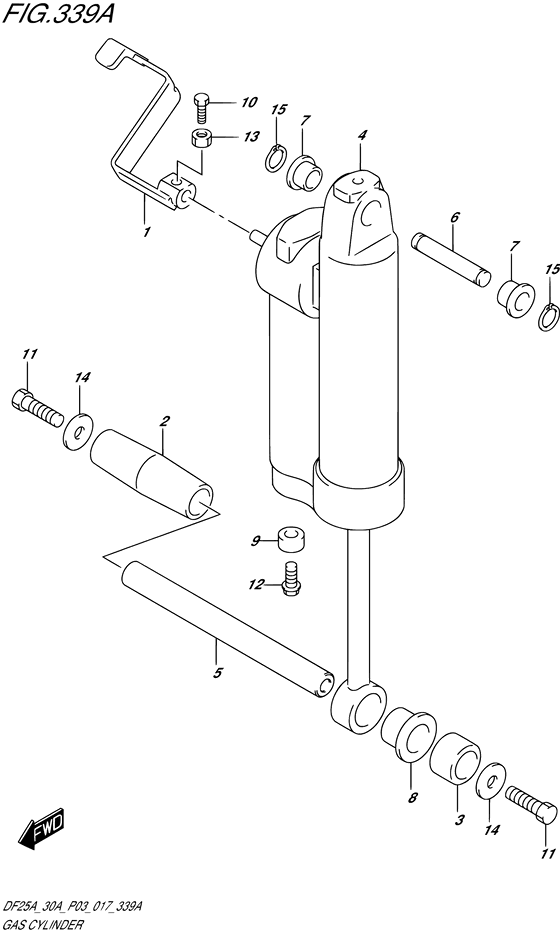

Gas cylinder ((DF25AQ P03)) Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L; QHS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A. (P03)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45260-94LA0-000 LEVER,RELEASE |
45260-94LA0-000 |
US $34.22 |
||
|
2
|
2
47225-94L00-000 SPACER,TILT CYL LOWER STBD |
47225-94L00-000 |
US $19.69 |
||
|
3
|
3
47226-94L00-000 SPACER,TILT CYL LOWER PORT |
47226-94L00-000 |
US $3.86 |
||
|
4
|
4
47400-95J02-000 CYLINDER ASSY,GAS |
47400-95J02-000 |
US $813.12 |
||
|
5
|
5
48121-94LA0-000 SHAFT,TILT CYL LOWER |
48121-94LA0-000 |
US $31.65 |
||
|
6
|
6
48321-94L00-000 SHAFT,TILT CYL UPPER |
48321-94L00-000 |
US $9.05 |
||
|
7
|
7
48325-94L00-000 BUSH,TILT CYL UPPER |
48325-94L00-000 |
US $3.86 |
||
|
8
|
8
48326-94L00-000 BUSH,TILT CYL LOWER |
48326-94L00-000 |
US $3.86 |
||
|
9
|
9
55321-87J01-000 ANODE,PROTECTION |
55321-87J01-000 |
from US $7.45 |
||
|
10
|
10
09100-06113-000 BOLT(6X16) |
09100-06113-000 |
from US $3.04 |
||
|
11
|
11
09100-10323-000 BOLT(10X35) |
09100-10323-000 |
from US $15.42 |
||
|
12
|
12
09103-06281-000 BOLT(6X14)Bolt, protection anode |
09103-06281-000 |
from US $1.28 |
||
|
13
|
13
09140-06020-000 NUT |
09140-06020-000 |
from US $1.28 |
||
|
14
|
14
09160-10158-000 WASHER(10.5X30X3) |
09160-10158-000 |
from US $7.79 |
||
|
15
|
15
09380-12002-000 RING,SNAPCirclip |
09380-12002-000 |
US $11.40 |
