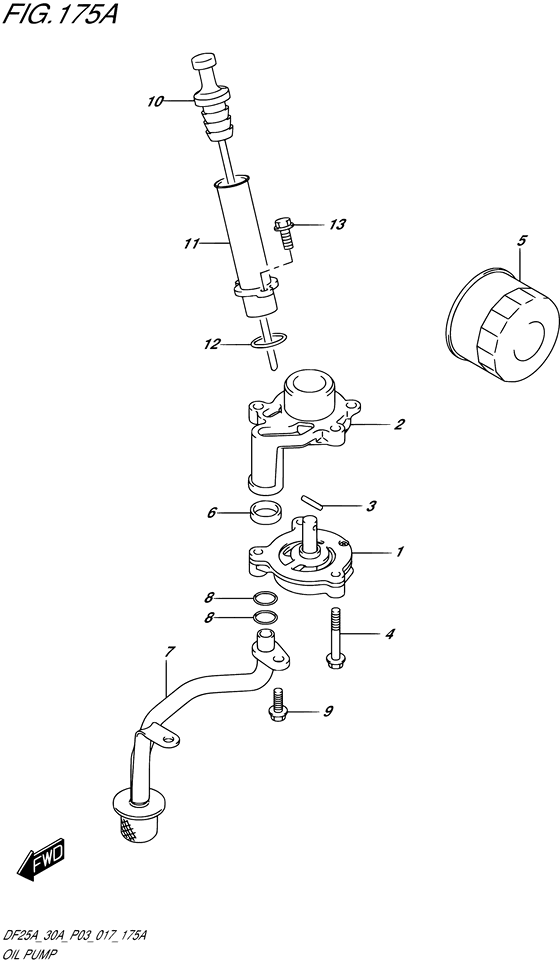

Oil pump Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L; QHS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A. (P03)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16400-94L00-000 PUMP ASSY,OIL |
16400-94L00-000 |
US $174.80 |
||
|
2
|
2
16431-94L00-000 BLOCK,OIL GALLERY |
16431-94L00-000 |
US $24.66 |
||
|
3
|
3
59262-94J00-000 PIN,OIL PUMP |
59262-94J00-000 |
US $0.96 |
||
|
4
|
4
01547-0640A-000 BOLT |
01547-0640A-000 |
from US $0.96 |
||
|
5
|
5
16510-87J00-000
FILTER ASSY,OIL
|
16510-87J00-000 |
— | ||
| replacement | |||||
|
5
|
5
16510-87J01-000 Filter Assy,oil |
16510-87J01-000 |
US $20.84 |
||
|
6
|
6
16519-94L00-000 SEAL,ENGINE HOLDER |
16519-94L00-000 |
US $4.05 |
||
|
7
|
7
16520-94L00-000 STRAINER,OIL |
16520-94L00-000 |
US $30.18 |
||
|
8
|
8
09280-12012-000 O RING(D:2.4,ID:11.8)O ring (d:2.4 id:11.8) |
09280-12012-000 |
from US $3.35 |
||
|
9
|
9
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
10
|
10
16910-94L01-000 GAUGE,OIL LEVEL |
16910-94L01-000 |
US $11.48 |
||
|
11
|
11
16930-94L00-000 GUIDE,OIL LEVEL GAUGE |
16930-94L00-000 |
US $13.06 |
||
|
12
|
12
09280-21008-000 O RING(D:2.5,ID:21)O ring (d:2.5,id:21) |
09280-21008-000 |
from US $0.97 |
||
|
13
|
13
01550-0616C-000 Bolt |
01550-0616C-000 |
US $0.77 |
||
