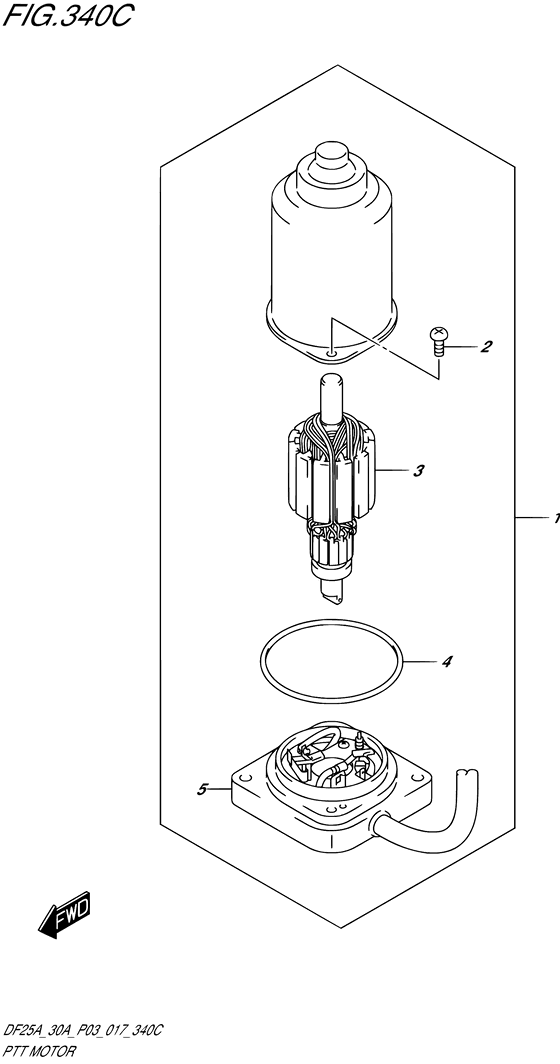

Ptt motor ((DF30AT P03)) Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L; QHS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A. (P03)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38100-94L01-000
MOTOR ASSY,PT
|
38100-94L01-000 |
— | ||
| replacement | |||||
|
1
|
1
38100-94L02-000 MOTOR ASSY,PT |
38100-94L02-000 |
US $595.84 |
||
|
2
|
2
31111-89J00-000 SCREW |
31111-89J00-000 |
US $4.75 |
||
|
3
|
3
31311-89J00-000 ARMATURE |
31311-89J00-000 |
US $364.32 |
||
|
4
|
4
31123-89J00-000 O RING |
31123-89J00-000 |
US $9.64 |
||
|
5
|
5
31173-94L01-000
BRACKET,PTT MOTOR
|
31173-94L01-000 |
— | ||
| replacement | |||||
|
5
|
5
31173-94L02-000 BRACKET,PT MOTOR |
31173-94L02-000 |
US $296.24 |
||
