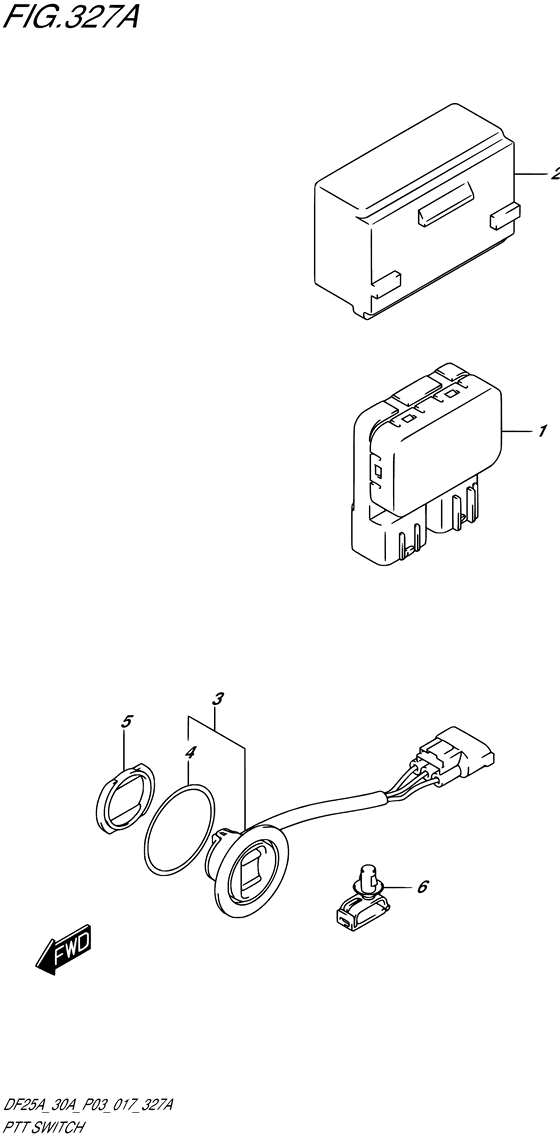

Ptt switch ((DF25AT P03)) Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L; QHS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A. (P03)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38410-93J20-000
RELAY ASSY,PTT
|
38410-93J20-000 |
— | ||
| replacement | |||||
|
1
|
1
38410-93J21-000 RELAY ASSY,PTT |
38410-93J21-000 |
from US $101.05 |
||
|
2
|
2
38415-94L00-000 HOLDER,PTT RELAY |
38415-94L00-000 |
US $12.44 |
||
|
3
|
3
37850-92J00-000 SWITCH ASSY,PTT |
37850-92J00-000 |
from US $76.77 |
||
|
4
|
4
37856-92J00-000 TAPE,PTT SWITCH |
37856-92J00-000 |
US $2.83 |
||
|
5
|
5
37857-92J00-000
BUSH,PTT SWITCH
|
37857-92J00-000 |
— | ||
| replacement | |||||
|
5
|
5
37857-92J01-000 Bush,ptt Switch |
37857-92J01-000 |
US $2.47 |
||
|
6
|
6
09403-07340-000 CLAMP |
09403-07340-000 |
from US $6.14 |
||
