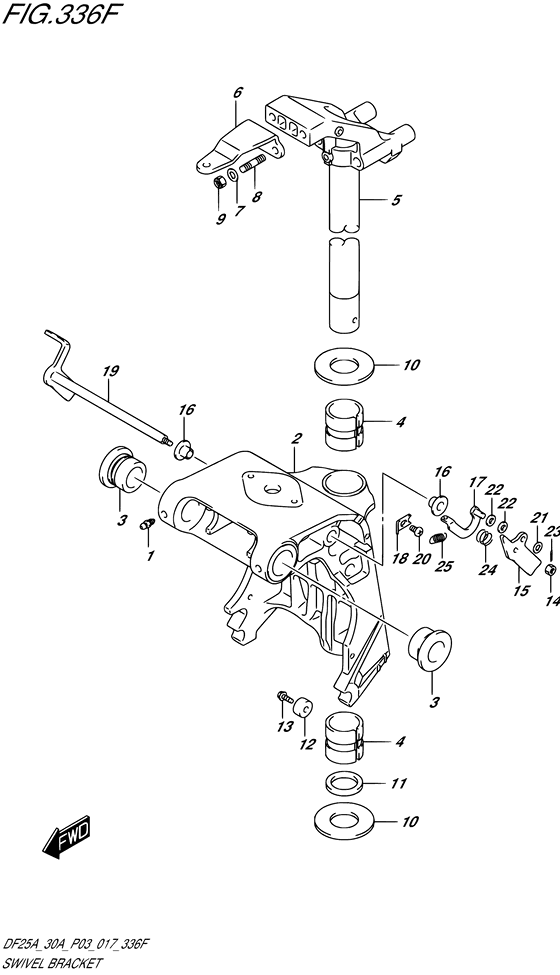

Swivel bracket ((DF30AT P03)) Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L; QHS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A. (P03)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22511-99011-000 NIPPLE,GREASE |
22511-99011-000 |
from US $2.29 |
||
|
2
|
2
43111-94LA0-YAY BRACKET,SWIVEL(S)W/TRANSOM(S) |
43111-94LA0-YAY |
US $136.16 |
||
|
2
|
2
43111-94LB0-YAY BRACKET,SWIVEL(L)(BLACK)W/TRANSOM(L) |
43111-94LB0-YAY |
US $331.24 |
||
|
3
|
3
43211-87JL0-000 BUSH,SWIVEL BRACKET |
43211-87JL0-000 |
US $10.40 |
||
|
4
|
4
43711-94L00-000 BUSH,STEERING |
43711-94L00-000 |
US $8.82 |
||
|
5
|
5
43750-94L00-YAY BRACKET COMP,STEERING(S)W/TRANSOM(S) |
43750-94L00-YAY |
US $322.24 |
||
|
5
|
5
43750-94L10-YAY BRACKET,STEERING(L)(BLACK)W/TRANSOM(L) |
43750-94L10-YAY |
US $117.02 |
||
|
6
|
6
43755-94L00-000 ATTACHMENT,STEERING BRACKET |
43755-94L00-000 |
US $32.45 |
||
|
7
|
7
09160-08082-000 WASHER(8.5X16X1.2) |
09160-08082-000 |
from US $1.08 |
||
|
8
|
8
09108-08286-000 BOLT,STUD |
09108-08286-000 |
US $4.87 |
||
|
9
|
9
09159-08059-000 NUTNut, clutch lever |
09159-08059-000 |
from US $3.65 |
||
|
10
|
10
09160-30057-000 WASHER(30.9X50X1.5) |
09160-30057-000 |
from US $2.89 |
||
|
11
|
11
09282-30008-000 SEAL(30.6X43X5) |
09282-30008-000 |
from US $5.78 |
||
|
12
|
12
55321-87J01-000 ANODE,PROTECTION |
55321-87J01-000 |
from US $7.45 |
||
|
12
|
12
55321-87J11-000 ANODE(MAGNESIUM)OPT |
55321-87J11-000 |
US $13.28 |
||
|
13
|
13
09103-06281-000 BOLT(6X14)Bolt, protection anode |
09103-06281-000 |
from US $1.28 |
||
|
14
|
14
29141-93J00-000 NUT |
29141-93J00-000 |
from US $1.52 |
||
|
15
|
15
41221-94LA0-000 LEVER,TILT LOCK PORT |
41221-94LA0-000 |
US $8.57 |
||
|
16
|
16
41224-94LA0-000 BUSH,TILT STOPPER ROD |
41224-94LA0-000 |
US $3.50 |
||
|
17
|
17
41230-94LA0-000 LINK,TILT LOCK LEVER |
41230-94LA0-000 |
US $17.41 |
||
|
18
|
18
41233-94LA0-000 BRACKET,TILT LOCK SPRING |
41233-94LA0-000 |
US $3.50 |
||
|
19
|
19
41280-94LA0-000 LEVER,TILT LOCK |
41280-94LA0-000 |
US $23.92 |
||
|
20
|
20
09125-06063-000 SCREW(6X10) |
09125-06063-000 |
from US $1.28 |
||
|
21
|
21
09160-06082-000 WASHER(6.5X13X1.0) |
09160-06082-000 |
from US $0.96 |
||
|
22
|
22
09160-06170-000 WASHER(6.5X13X2) |
09160-06170-000 |
from US $2.48 |
||
|
23
|
23
09204-01006-000 PINPin, cotter |
09204-01006-000 |
from US $0.81 |
||
|
24
|
24
09440-13057-000 SPRING |
09440-13057-000 |
from US $1.50 |
||
|
25
|
25
09443-10043-000 SPRING |
09443-10043-000 |
from US $1.92 |
