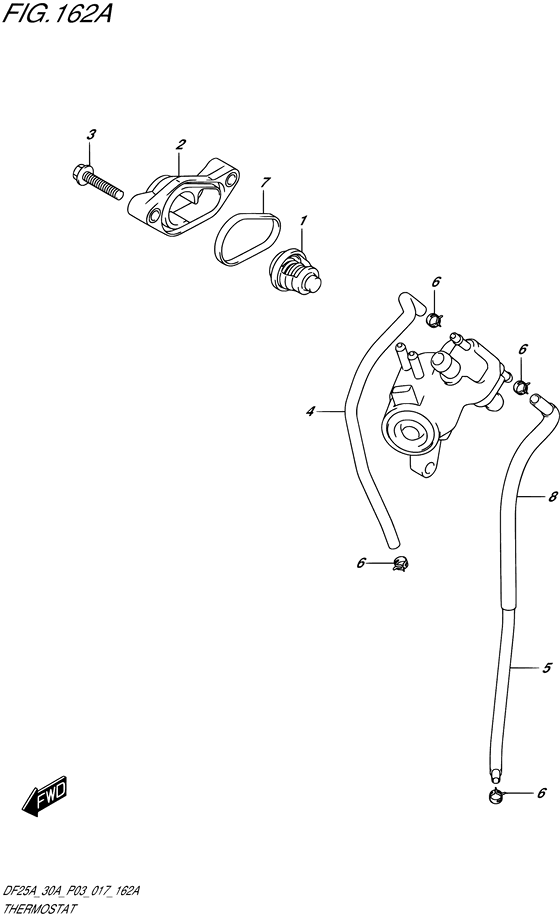

Thermostat Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L; QHS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A. (P03)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17670-94J00-000
THERMOSTAT,WATER 60 DEG
|
17670-94J00-000 |
— | ||
| replacements | |||||
|
1
|
1
17670-94J01-000
THERMOSTAT COMP,WATER (60 DEG)
|
17670-94J01-000 |
— | ||
|
1
|
1
17670-94J02-000 Thermostat Comp,water 60 Deg |
17670-94J02-000 |
US $33.60 |
||
|
2
|
2
17680-94L00-000 COVER,THERMOSTAT |
17680-94L00-000 |
US $8.06 |
||
|
3
|
3
01550-0630C-000 Bolt |
01550-0630C-000 |
from US $3.54 |
||
|
4
|
4
17712-94L00-000 HOSE,WATER(COOLER TO IND) |
17712-94L00-000 |
US $6.04 |
||
|
5
|
5
15211-91J00-350
HOSE,WATER(HOUSING TO COOLER)
|
15211-91J00-350 |
— | ||
| replacement | |||||
|
5
|
5
15211-91J01-350 Hose,water(Housing To Cooler) |
15211-91J01-350 |
US $3.72 |
||
|
6
|
6
09401-08413-000 CLIP |
09401-08413-000 |
from US $1.60 |
||
|
7
|
7
17685-94L00-000 SEAL,THERMOSTAT COVER |
17685-94L00-000 |
US $3.86 |
||
|
8
|
8
18498-94JL0-160
PROTECTOR,WATER HOSE(160)
|
18498-94JL0-160 |
— | ||
| replacement | |||||
|
8
|
8
18498-91J01-000 Protector(12X15X160) |
18498-91J01-000 |
US $2.80 |
||
