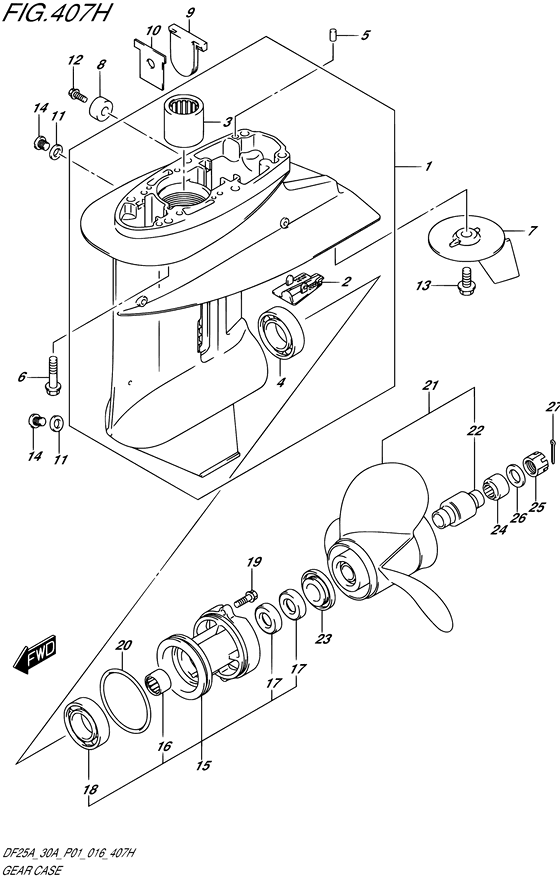

Gear case ((DF30ATH P01)) Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L
- Year
- 2016
- Model
- DF25A
- Year
- 2016
- Engine
- 02504F-610001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55100-94L00-0EP CASE ASSY,GEAR |
55100-94L00-0EP |
US $457.60 |
||
|
2
|
2
55114-963L0-000 COVER,GEAR CASE UNDER |
55114-963L0-000 |
US $8.87 |
||
|
3
|
3
09263-20046-000 BEARING(20.6X27X25.4) |
09263-20046-000 |
from US $39.20 |
||
|
4
|
4
09265-25047-000 BEARING(25X52X16.25) |
09265-25047-000 |
from US $31.20 |
||
|
5
|
5
09202-06023-000 PIN(6X10) |
09202-06023-000 |
US $21.70 |
||
|
6
|
6
09116-08154-000
BOLT(8X40)
|
09116-08154-000 |
— | ||
|
7
|
7
55125-96310-000 TAB,TRIM |
55125-96310-000 |
US $15.14 |
||
|
8
|
8
55321-87J01-000 ANODE,PROTECTION |
55321-87J01-000 |
from US $7.45 |
||
|
9
|
9
55332-94L00-000 RUBBER,EXHAUST SEAL |
55332-94L00-000 |
US $3.83 |
||
|
10
|
10
55333-94L00-000 PLATE,EXHAUST SEAL |
55333-94L00-000 |
US $5.12 |
||
|
11
|
11
59178-97J00-000 GASKET,DRAIN PLUG |
59178-97J00-000 |
from US $1.04 |
||
|
12
|
12
09103-06319-000
New Genuine Part
|
09103-06319-000 |
— | ||
| replacement | |||||
|
12
|
12
09103-06281-000 BOLT(6X14)Bolt, protection anode |
09103-06281-000 |
from US $1.28 |
||
|
13
|
13
09116-08147-000 BOLT(8X16) |
09116-08147-000 |
from US $10.01 |
||
|
14
|
14
09248-08001-000 PLUG(8X7.5) |
09248-08001-000 |
from US $0.96 |
||
|
15
|
15
56120-91L11-0EP HOUSING,PROPELLER SHAFT BRG |
56120-91L11-0EP |
US $168.86 |
||
|
16
|
16
09263-20047-000 BEARING(20X26X20)Bearing |
09263-20047-000 |
from US $7.84 |
||
|
17
|
17
09289-20L01-000 SEAL,OIL(20X34X6.5) |
09289-20L01-000 |
from US $13.60 |
||
|
18
|
18
08113-60060-000 BEARINGBearing, rev gear |
08113-60060-000 |
from US $13.28 |
||
|
19
|
19
09116-06229-000 BOLT(6X25) |
09116-06229-000 |
US $2.08 |
||
|
20
|
20
09280-75002-000 O RING(D:3.5,ID:68.6) |
09280-75002-000 |
US $2.88 |
||
|
21
|
21
58100-91L20-019 PROPELLER(3X10-1/4X12) |
58100-91L20-019 |
US $212.80 |
||
|
21
|
21
58100-91L30-019 PROPELLER(3X10-1/4X13) |
58100-91L30-019 |
US $171.30 |
||
|
21
|
21
58100-95D01-019
PROPELLER(3X10-1/4X14)
|
58100-95D01-019 |
— | ||
| replacement | |||||
|
21
|
21
58100-95D01-YAY PROPELLER(3X10-1/4X14) |
58100-95D01-YAY |
US $234.08 |
||
|
21
|
21
58100-963L1-019
PROPELLER(3X10-1/4X9)
|
58100-963L1-019 |
— | ||
| replacement | |||||
|
21
|
21
58100-96372-019 PROPELLER(3X10-1/4X9) |
58100-96372-019 |
US $202.16 |
||
|
21
|
21
58100-96411-019
PROPELLER(3X10-1/4X10)
|
58100-96411-019 |
— | ||
| replacement | |||||
|
21
|
21
58100-91L40-019 PROPELLER COMP(3X10-1/4X10) |
58100-91L40-019 |
US $165.23 |
||
|
21
|
21
58100-96421-019
PROPELLER(3X10-1/4X11)
|
58100-96421-019 |
— | ||
| replacement | |||||
|
21
|
21
58100-91L50-019 PROPELLER(3X10-1/4X11) |
58100-91L50-019 |
US $165.23 |
||
|
21
|
21
58100-96462-019 PROPELLER COMP(3X10-1/4X15)OPT |
58100-96462-019 |
US $202.16 |
||
|
21
|
21
58100-96492-019 PROPELLER(3X10-1/4X13)OPT |
58100-96492-019 |
US $165.23 |
||
|
21
|
21
58100-964N1-019
PROPELLER(3X10-1/4X10)
|
58100-964N1-019 |
— | ||
| replacement | |||||
|
21
|
21
58100-96472-019 PROPELLER(3X10-1/4X10) |
58100-96472-019 |
from US $173.34 |
||
|
21
|
21
58100-964P1-019
PROPELLER(3X10-1/4X12)
|
58100-964P1-019 |
— | ||
| replacement | |||||
|
21
|
21
58100-96482-019 PROPELLER(3X10-1/4X12) |
58100-96482-019 |
US $165.23 |
||
|
22
|
22
58120-96401-000 BUSH,PROPELLERBush, propeller |
58120-96401-000 |
US $28.34 |
||
|
23
|
23
57632-91L00-000 STOPPER,PROPELLER BUSH |
57632-91L00-000 |
US $34.21 |
||
|
24
|
24
57633-96300-000 SPACER,PROPELLER NUTSpacer, propeller nut |
57633-96300-000 |
US $10.49 |
||
|
25
|
25
09141-14008-000 NUT |
09141-14008-000 |
from US $6.29 |
||
|
26
|
26
09160-14028-000 WASHER(14.5X30X2.5)Washer |
09160-14028-000 |
from US $4.74 |
||
|
27
|
27
09204-03003-000 PIN |
09204-03003-000 |
from US $0.96 |
||
