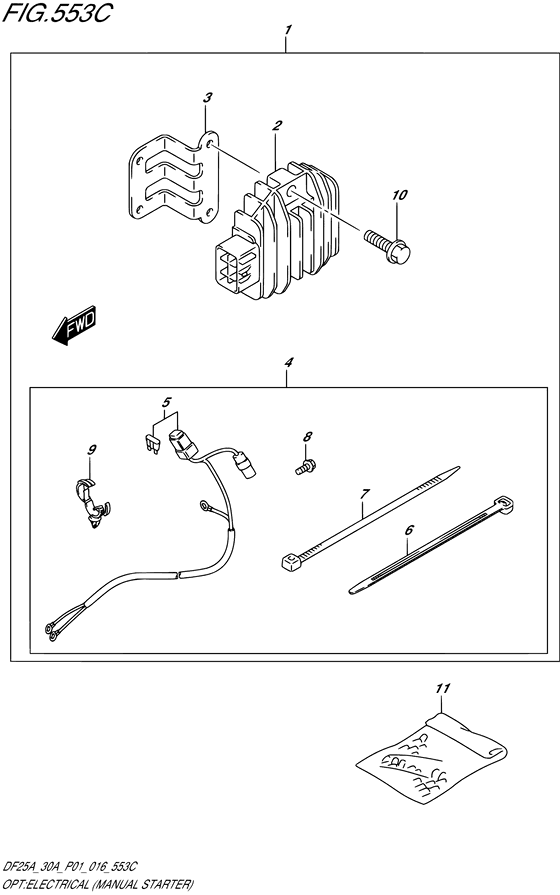

Opt:electrical ((MANUAL STARTER) (DF30AQ P01)) Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L
- Year
- 2016
- Model
- DF25A
- Year
- 2016
- Engine
- 02504F-610001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32000-94L00-000
KIT,BATTERY CHARGING
|
32000-94L00-000 |
— | ||
| replacements | |||||
|
1
|
1
32000-94L01-000
KIT,BATTERY CHARGING Suzuki
|
32000-94L01-000 |
— | ||
|
1
|
1
32000-94L02-000 Kit,battery Charging |
32000-94L02-000 |
US $975.04 |
||
|
2
|
2
32800-88L00-000
RECTIFIER & REGULATOR ASSY
|
32800-88L00-000 |
— | ||
| replacement | |||||
|
2
|
2
32800-88L01-000 RECTIFIER & REGULATOR ASSY (W/EL. STARTER) |
32800-88L01-000 |
US $148.96 |
||
|
3
|
3
32815-94L00-000 BRACKET,RECTIFIER |
32815-94L00-000 |
US $22.80 |
||
| replacement | |||||
|
3
|
3
32815-94L01-000 Bracket,rectifier |
32815-94L01-000 |
US $22.80 |
||
|
4
|
4
39600-94L00-000 RECEPTACLE SET |
39600-94L00-000 |
US $120.08 |
||
|
5
|
5
36740-94L00-000 WIRE ASSY,BATTERY CHARGING |
36740-94L00-000 |
US $86.11 |
||
|
6
|
6
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
7
|
7
09407-14407-000 CLAMP(L:145)Band |
09407-14407-000 |
from US $2.08 |
||
|
8
|
8
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
9
|
9
09403-20308-000 CLAMP |
09403-20308-000 |
from US $1.37 |
||
|
10
|
10
01550-06207-000 BOLT |
01550-06207-000 |
from US $0.80 |
||
|
11
|
11
36990-87D00-000 TERMINAL / SLEEVE SETTerminal & sleeve set |
36990-87D00-000 |
US $12.02 |
||
