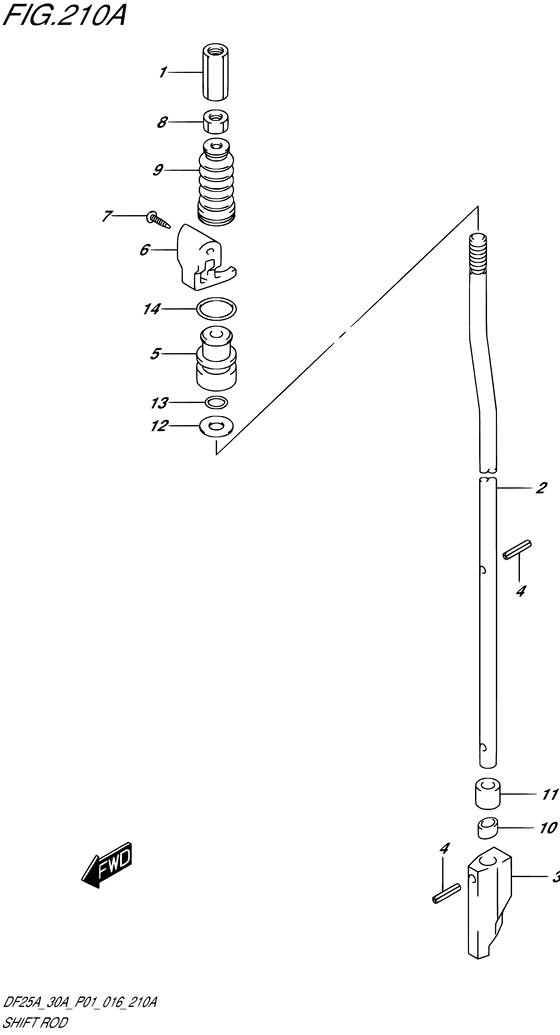

Shift rod Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L
- Year
- 2016
- Model
- DF25A
- Year
- 2016
- Engine
- 02504F-610001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23311-95J00-000 CONNECTOR,CLUTCH ROD |
23311-95J00-000 |
from US $5.28 |
||
|
2
|
2
25111-94L00-000 ROD,SHIFT(S&L) |
25111-94L00-000 |
US $25.84 |
||
|
3
|
3
25311-94L00-000 CAM,SHIFT |
25311-94L00-000 |
US $13.87 |
||
|
4
|
4
09205-02004-000 PIN,SPRING(2.5X12)Spring pin |
09205-02004-000 |
US $0.96 |
||
|
5
|
5
25211-94L00-000 GUIDE,SHIFT ROD |
25211-94L00-000 |
US $8 |
||
|
6
|
6
25215-94L00-000 STOPPER,SHIFT ROD GUIDE |
25215-94L00-000 |
US $4.53 |
||
|
7
|
7
03142-0416C-000 SCREW |
03142-0416C-000 |
US $11 |
||
|
8
|
8
29141-93J00-000 NUT |
29141-93J00-000 |
from US $1.60 |
||
|
9
|
9
25222-94L00-000 BOOT,SHIFT ROD |
25222-94L00-000 |
US $12.64 |
||
|
10
|
10
25231-96301-000 HOLDER,MAGNETOSpacer, magnet |
25231-96301-000 |
US $1.98 |
||
|
11
|
11
25232-96302-000 MAGNETO,GEAR CASE |
25232-96302-000 |
US $5.02 |
||
|
12
|
12
09160-06082-000 WASHER(6.5X13X1.0) |
09160-06082-000 |
from US $0.96 |
||
|
13
|
13
09280-06012-000 O RING(D:1.7,ID:5.8) |
09280-06012-000 |
US $1.07 |
||
|
14
|
14
09280-13005-000 O RING(D:3.5,ID:12.8)O ring, front hook |
09280-13005-000 |
from US $1.76 |
