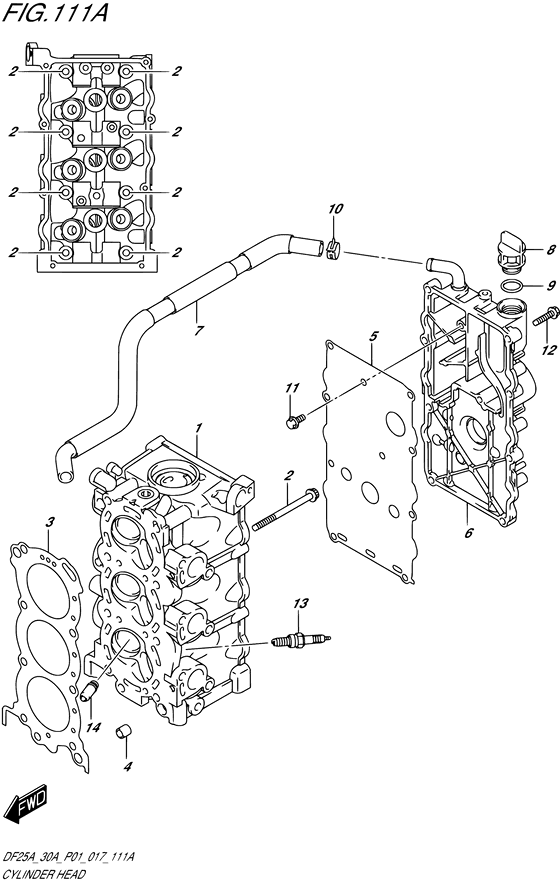

Cylinder head Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-94L00-000 Head,cylinder |
11110-94L00-000 |
US $862.40 |
||
|
2
|
2
11119-94L00-000 BOLT,CYLINDER HEAD NO.1 |
11119-94L00-000 |
US $4.56 |
||
|
3
|
3
11141-94L00-000 GASKET,CYLINDER HEAD |
11141-94L00-000 |
US $38.40 |
||
|
4
|
4
04211-11129-000 PIN |
04211-11129-000 |
from US $0.95 |
||
|
5
|
5
11162-94L00-000 GASKET,CYLINDER HEAD COVER |
11162-94L00-000 |
US $15.20 |
||
|
6
|
6
11170-94L00-000 Cover,cylinder head |
11170-94L00-000 |
US $84.64 |
||
|
7
|
7
11174-94L00-000 HOSE,BREATHER |
11174-94L00-000 |
US $15.90 |
||
|
8
|
8
11382-93E00-000 Cap,oil filler |
11382-93E00-000 |
US $5.60 |
||
|
9
|
9
09280-17003-000 O RING(D:3.1,ID:16.8)O ring, oil filler cap |
09280-17003-000 |
from US $1.51 |
||
|
10
|
10
09401-15414-000 CLIP |
09401-15414-000 |
from US $2.03 |
||
|
11
|
11
01547-0612A-000 BOLTBolt, push rod guide |
01547-0612A-000 |
from US $0.76 |
||
|
12
|
12
01550-0625C-000 BOLT |
01550-0625C-000 |
US $11.40 |
||
|
13
|
13
09482-00L04-000 PLUG,SPARK(CPR6EA-9)NGK CPR6EA-9 |
09482-00L04-000 |
from US $9.77 |
||
|
14
|
14
11115-30D70-000 GUIDE,VALVEOPT |
11115-30D70-000 |
from US $34.96 |
