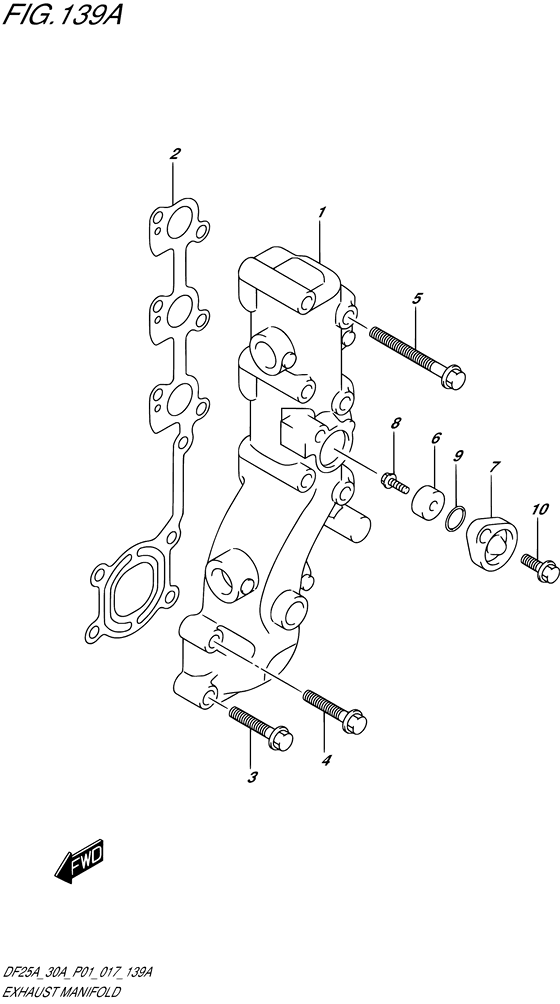

Exhaust manifold Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14110-94L00-000 MANIFOLD,EXHAUST |
14110-94L00-000 |
US $326.80 |
||
|
2
|
2
14151-94L00-000 GASKET,EXHAUST MANIFOLD |
14151-94L00-000 |
US $16.80 |
||
|
3
|
3
01550-08407-000 BOLT |
01550-08407-000 |
from US $1.12 |
||
|
4
|
4
09116-08152-000 BOLT(8X35) |
09116-08152-000 |
from US $8.51 |
||
|
5
|
5
01550-08707-000 Bolt |
01550-08707-000 |
from US $6.26 |
||
|
6
|
6
55321-87J01-000 ANODE,PROTECTION |
55321-87J01-000 |
from US $7.45 |
||
|
7
|
7
11261-93J00-000 COVER,PROTECTION ANODE |
11261-93J00-000 |
from US $9.89 |
||
|
8
|
8
09103-06281-000 BOLT(6X14)Bolt, protection anode |
09103-06281-000 |
from US $1.28 |
||
|
9
|
9
09280-22019-000 O RING(D:1.9,ID:21.8) |
09280-22019-000 |
from US $1.49 |
||
|
10
|
10
01550-0820C-000 BOLT,EXH PIPE STIFFENER |
01550-0820C-000 |
from US $2.64 |
