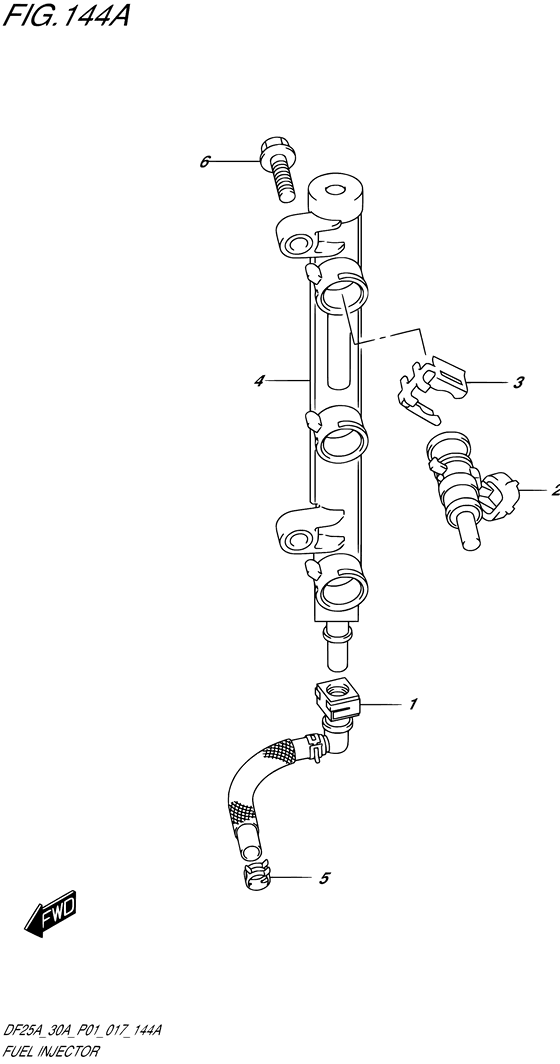

Fuel injector Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15681-94L00-000 HOSE,FUEL(PUMP TO DLVY) |
15681-94L00-000 |
US $36.80 |
||
|
2
|
2
15710-82M00-000 INJECTOR ASSY,FUEL |
15710-82M00-000 |
US $152.80 |
||
|
3
|
3
15715-82M00-000 CLIP,FUEL INJECTOR |
15715-82M00-000 |
US $2.47 |
||
|
4
|
4
15750-94L00-000 PIPE,DELIVERY |
15750-94L00-000 |
US $72.86 |
||
|
5
|
5
09401-11425-000 CLIP |
09401-11425-000 |
from US $1.82 |
||
|
6
|
6
01550-0625C-000 BOLT |
01550-0625C-000 |
US $11.40 |
