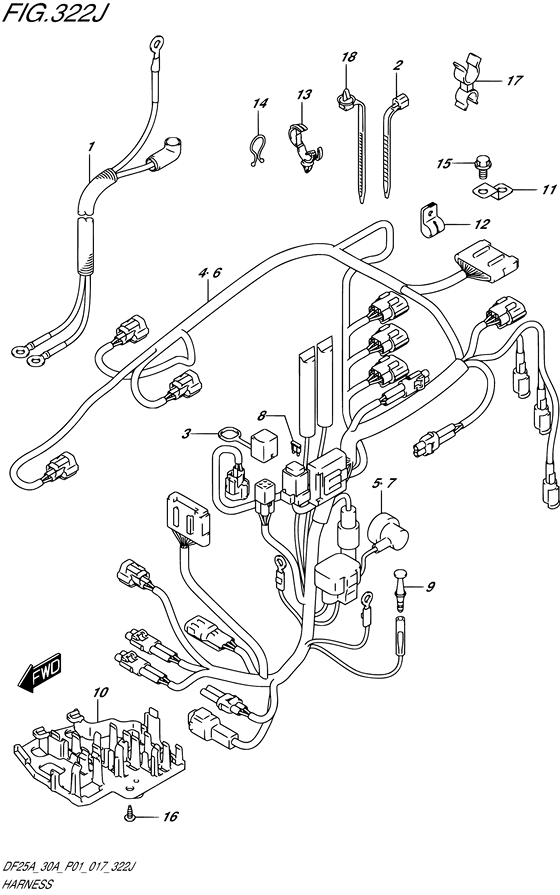

Harness ((DF30AQ P01)) Diagram Suzuki DF25A S/L; RS/L; TS/L; THS/L
- Year
- 2017
- Model
- DF25A
- Year
- 2017
- Engine
- 02504F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- General Export No.1 (P01)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33810-94L01-000 CABLE,STARTERW/ELECTRIC STARTER |
33810-94L01-000 |
US $66.61 |
||
|
2
|
2
09407-18402-000 CLAMP(L:165)Clamp (l:165) W/ELECTRIC STARTER |
09407-18402-000 |
from US $1.98 |
||
|
3
|
3
33634-94L00-000 CAP,SERVICE CONNECTOR |
33634-94L00-000 |
US $4.86 |
||
|
4
|
4
36610-94L00-000 HARNESS ASSY,WIRING(MZ)W/MANUAL STARTER |
36610-94L00-000 |
US $355.12 |
||
|
5
|
5
36618-43410-000 CAP,OIL PRESSURE SWITCHW/MANUAL STARTER |
36618-43410-000 |
from US $1.82 |
||
|
6
|
6
36610-94L10-000 HARNESS ASSY,WIRING(ME)W/ELECTRIC STARTER |
36610-94L10-000 |
US $397.76 |
||
|
7
|
7
36618-43410-000 CAP,OIL PRESSURE SWITCHW/ELECTRIC STARTER |
36618-43410-000 |
from US $1.82 |
||
|
8
|
8
09481-30501-000 FUSE(30A)W/ELECTRIC STARTER |
09481-30501-000 |
from US $1.08 |
||
|
9
|
9
36615-96300-000 TERMINAL |
36615-96300-000 |
US $1.52 |
||
|
10
|
10
36616-94L00-000 HOLDER,CONNECTOR |
36616-94L00-000 |
US $13.87 |
||
|
11
|
11
36617-93J10-000 BRACKET,HARNESSBracket, ptt cable clip |
36617-93J10-000 |
US $1.44 |
||
|
12
|
12
09403-08404-000
CLAMP
|
09403-08404-000 |
— | ||
| replacement | |||||
|
12
|
12
09403-08417-000 Clamp,rsvr Hose |
09403-08417-000 |
from US $3.91 |
||
|
13
|
13
09403-20308-000 CLAMP |
09403-20308-000 |
from US $1.37 |
||
|
14
|
14
09408-00008-000 CLIP(ID:20)Clamp, vacuum hose |
09408-00008-000 |
from US $3.37 |
||
|
15
|
15
01550-0612C-000 Bolt |
01550-0612C-000 |
from US $2.72 |
||
|
16
|
16
03542-05169-000 SCREWScrew, air intk guide no.1 |
03542-05169-000 |
from US $0.77 |
||
|
17
|
17
09408-00054-000 CLAMP |
09408-00054-000 |
US $19.10 |
||
|
18
|
18
36991-94L00-000 CLAMP,HARNESS |
36991-94L00-000 |
US $1.18 |
||
